Aircraft ground power equipment

Aircraft ground power units — six product families, full specification.

Aircraft starter power units

Stable Aviation manufactures portable Starter Units in 24V cells (giving real 25.8V start), 26V cells (giving real 27.9V start) and 28V cells (giving real 30.1V start). These units are used in maintenance hangars, airports and heliports, and are greatly appreciated by aircraft owners in the private sector. The Starters can be carried on board the aircraft, which makes them essential as emergency power for helicopters landing in locations outside of their bases, such as offshore platforms.

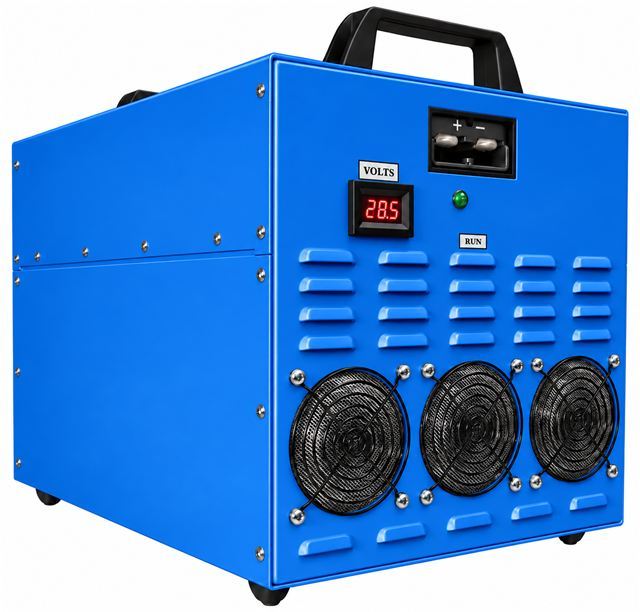

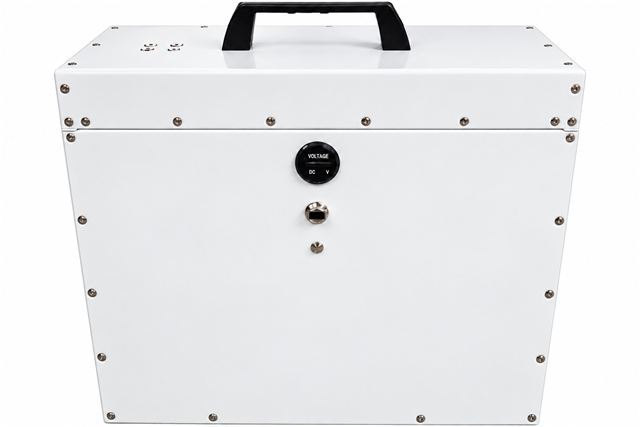

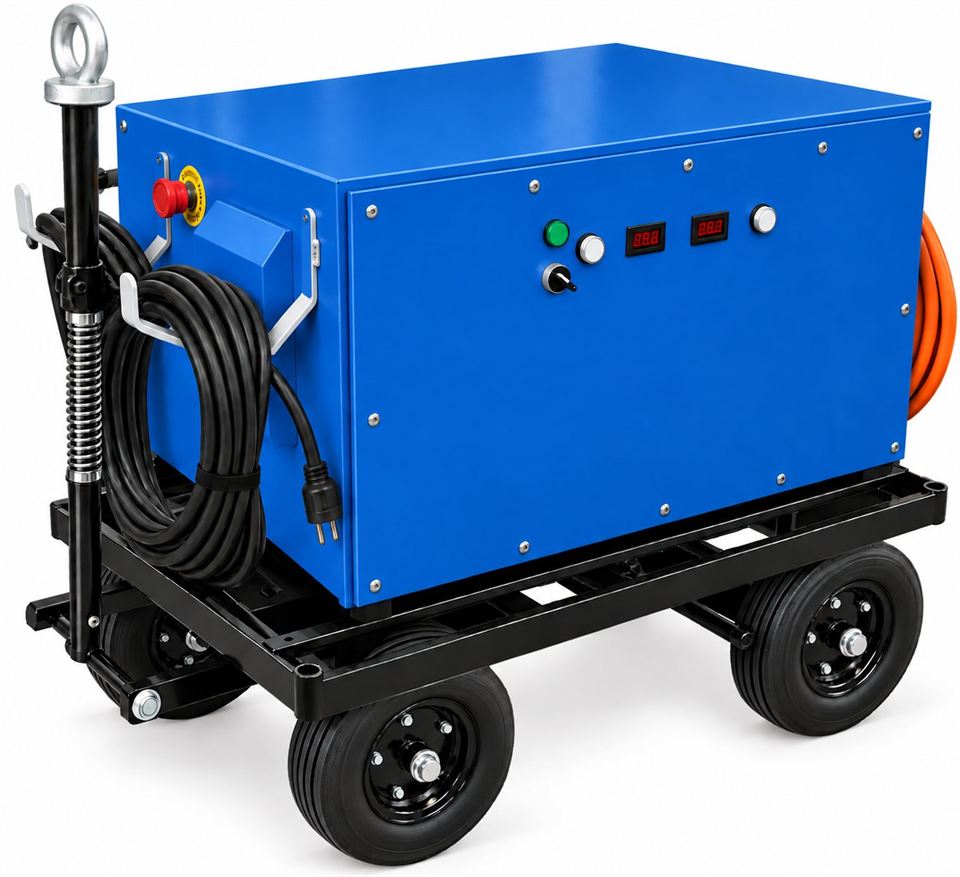

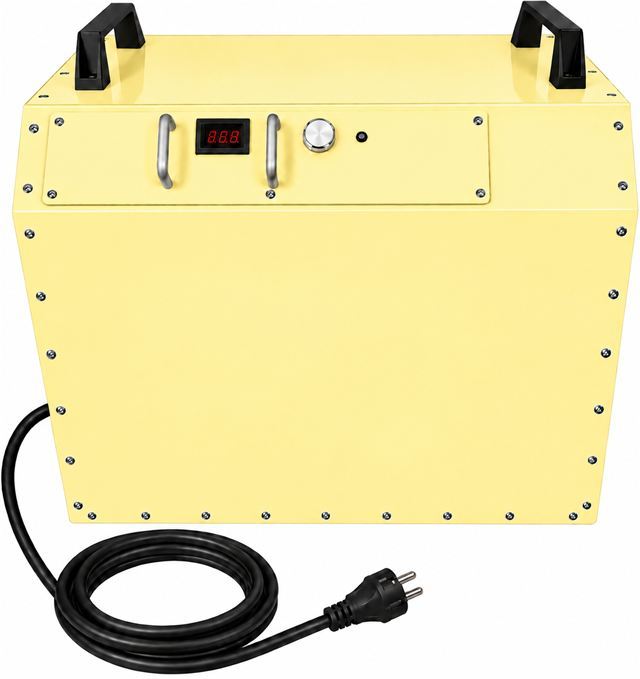

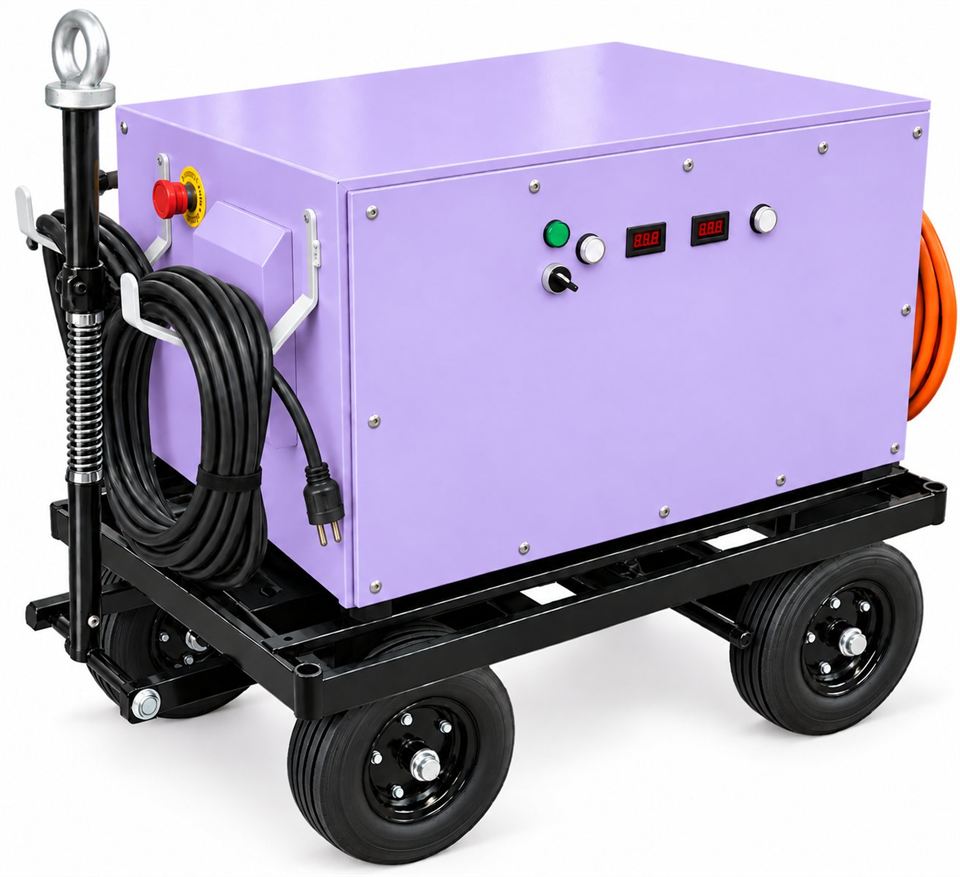

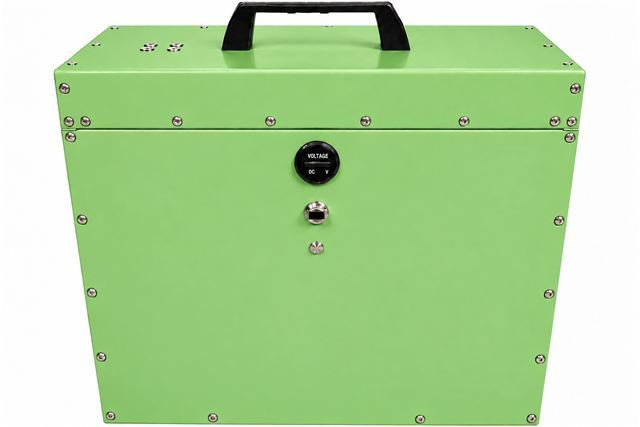

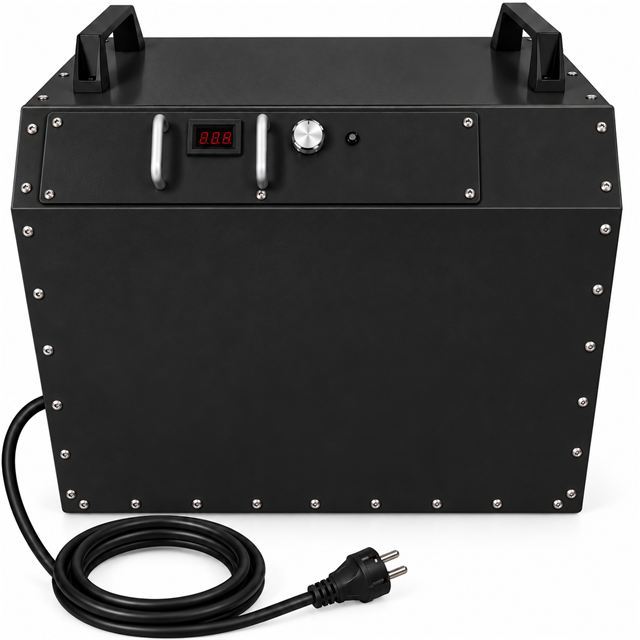

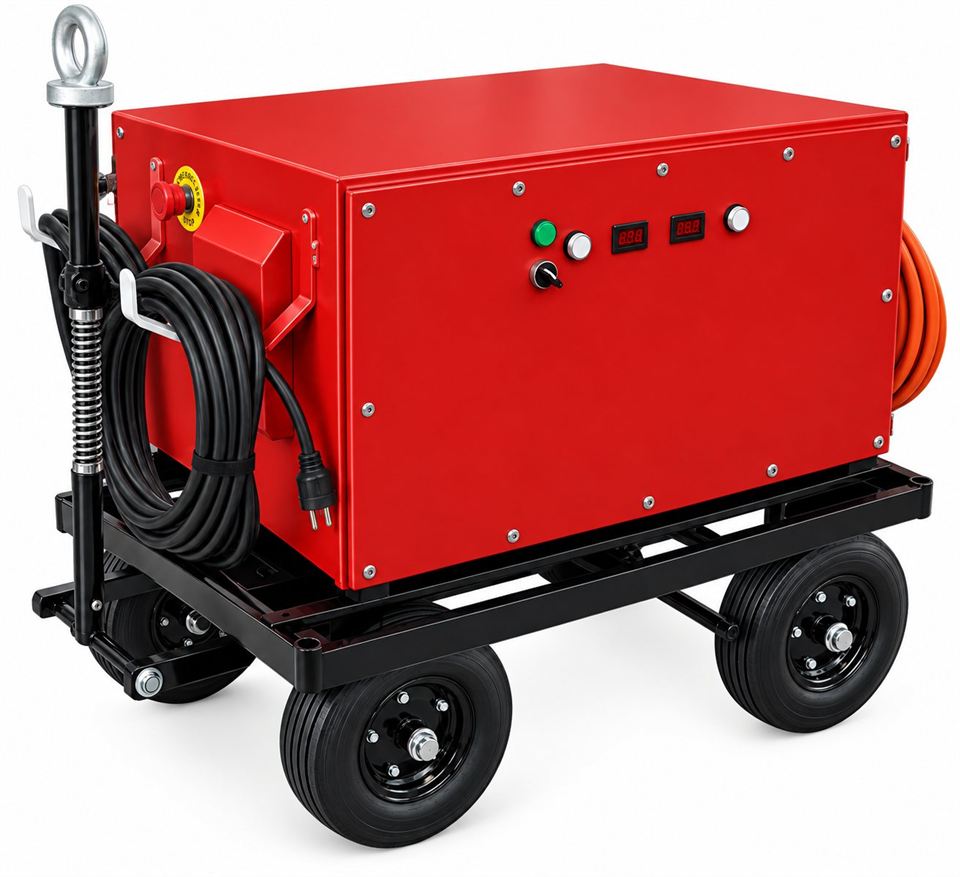

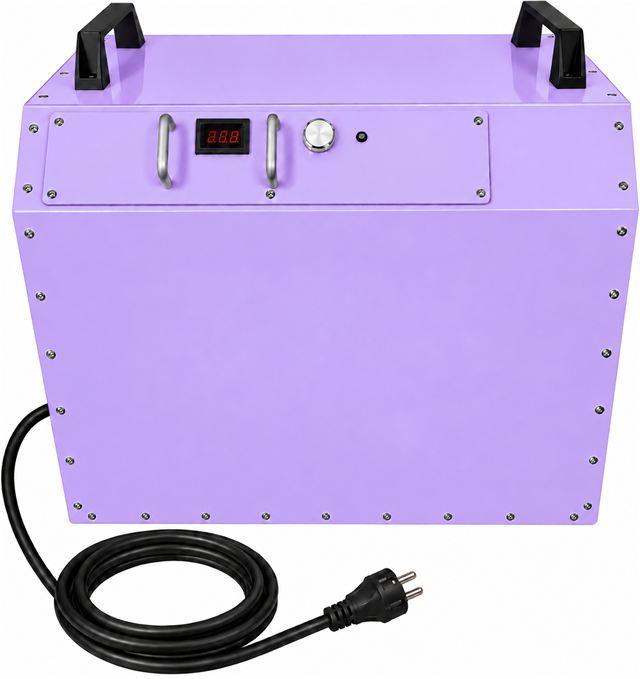

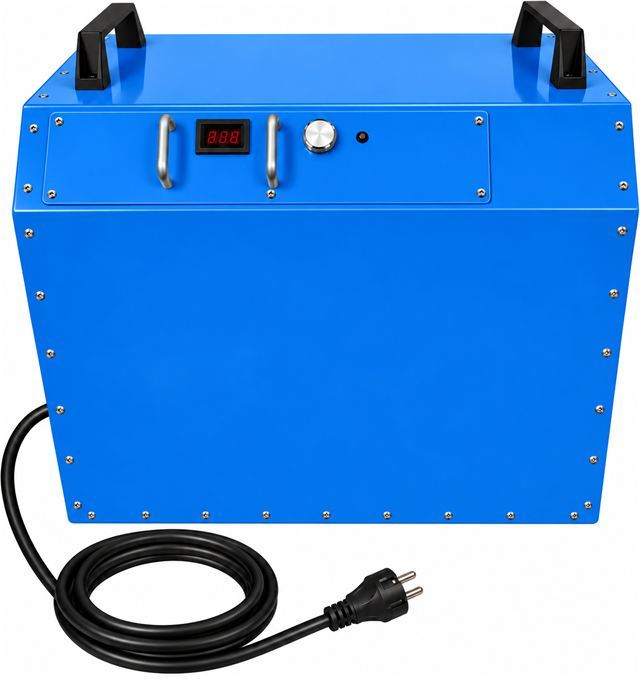

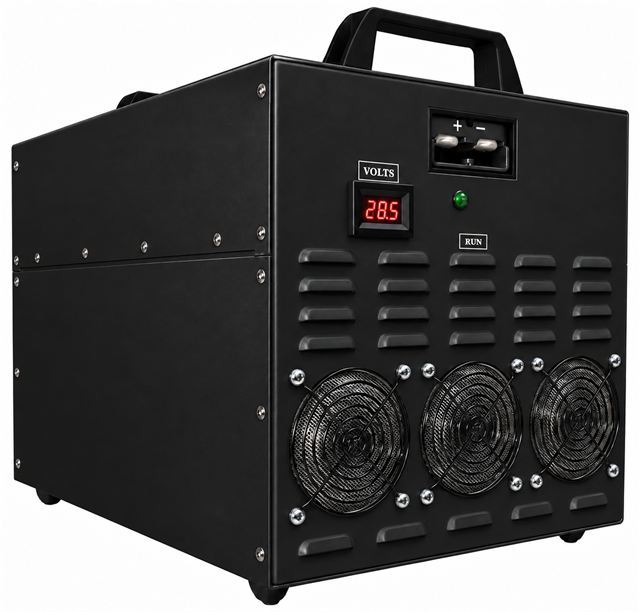

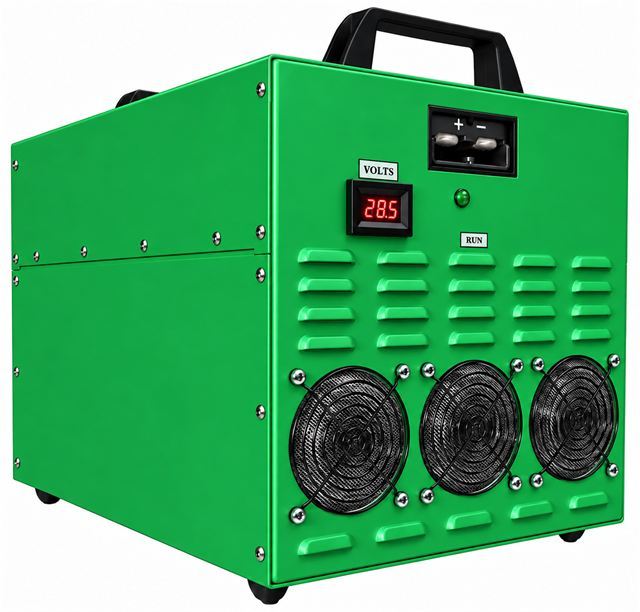

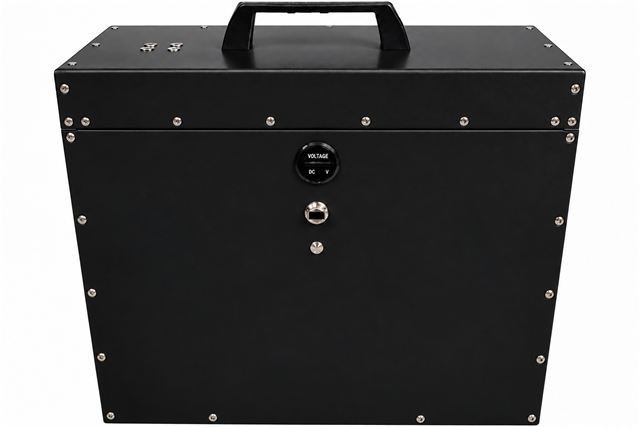

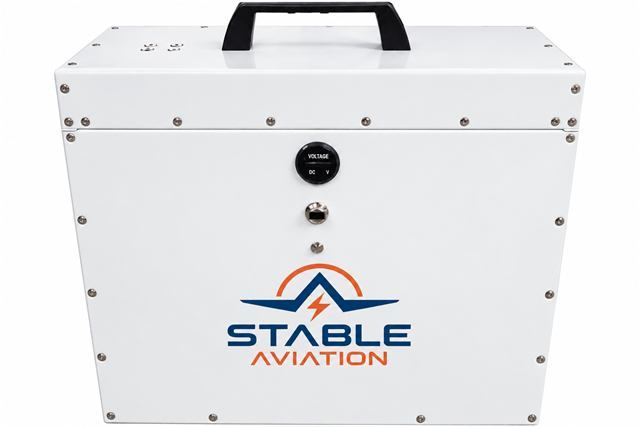

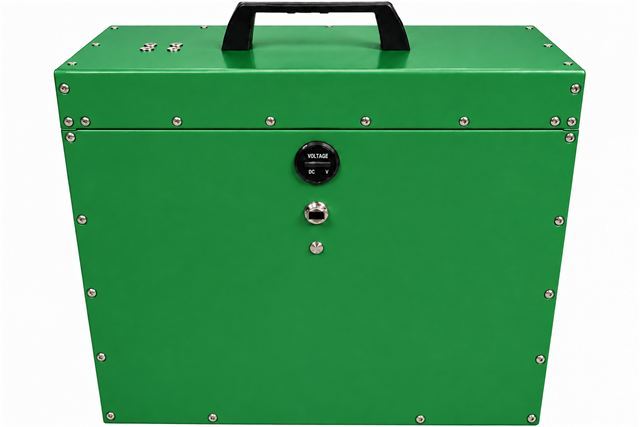

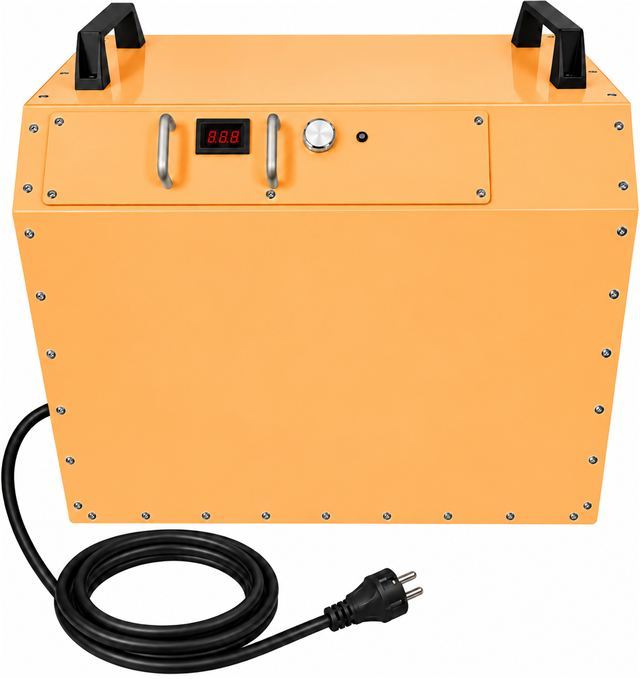

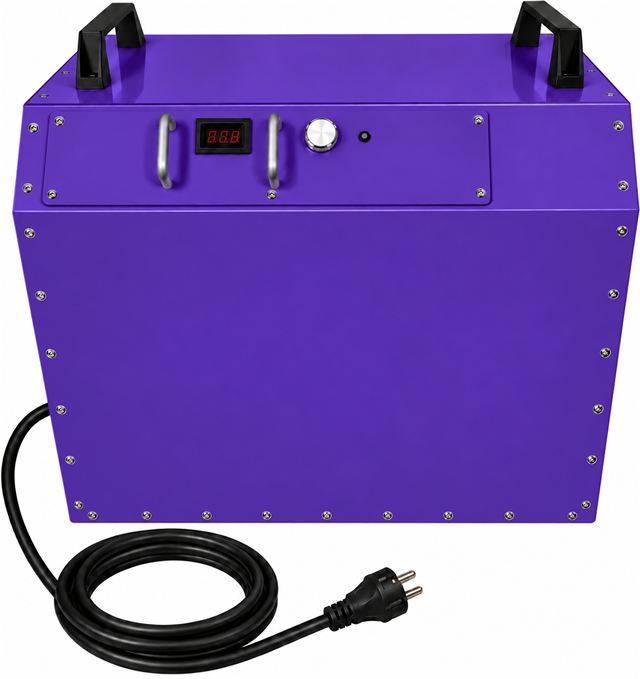

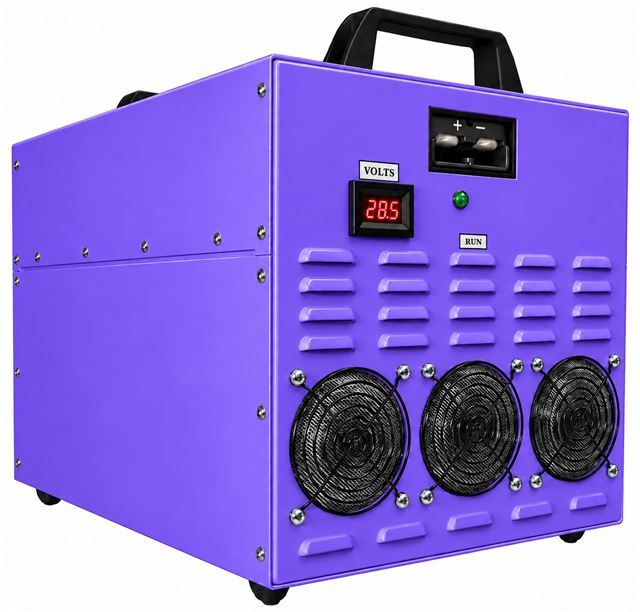

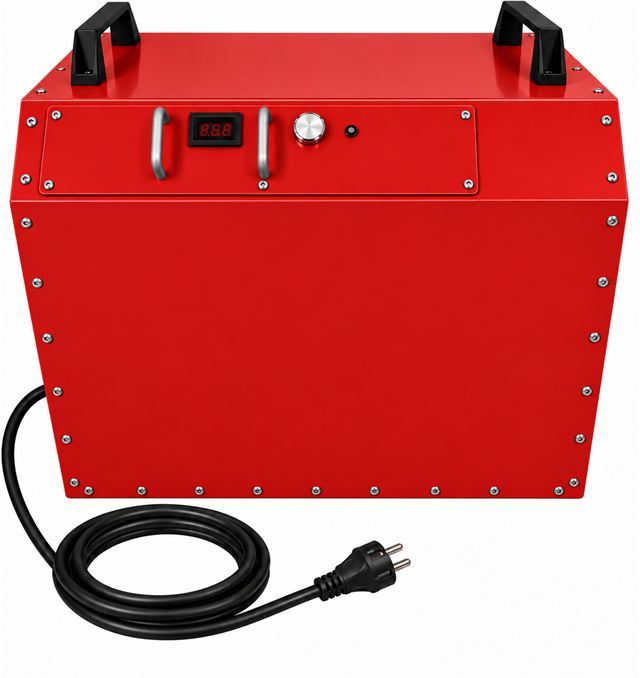

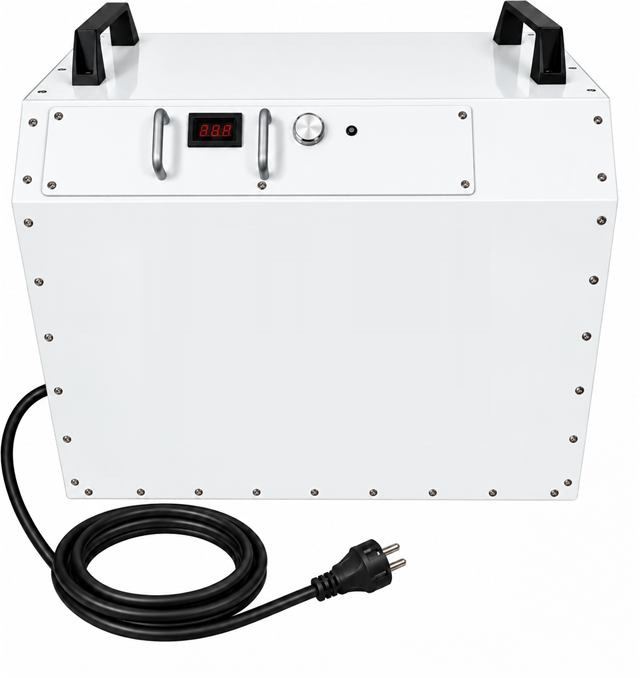

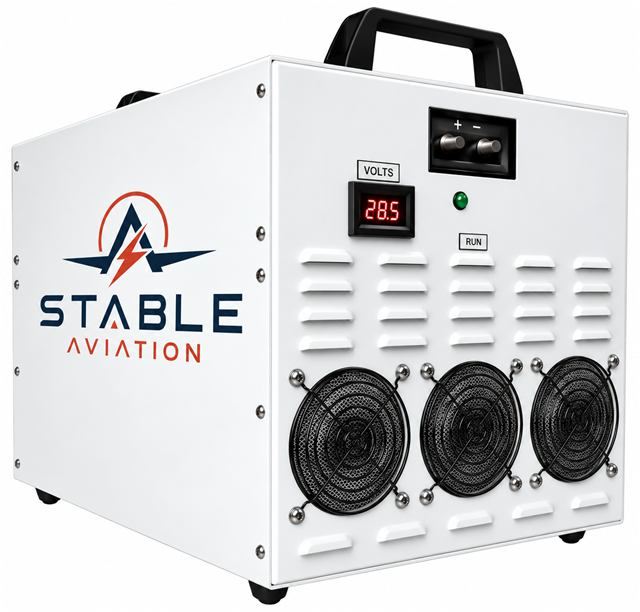

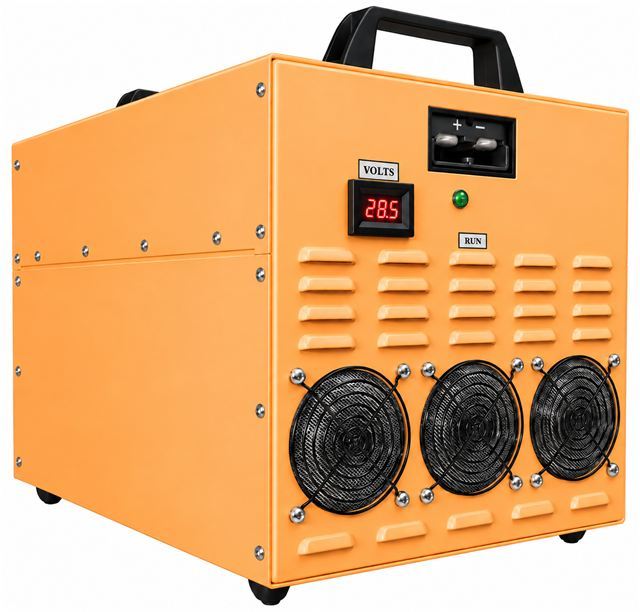

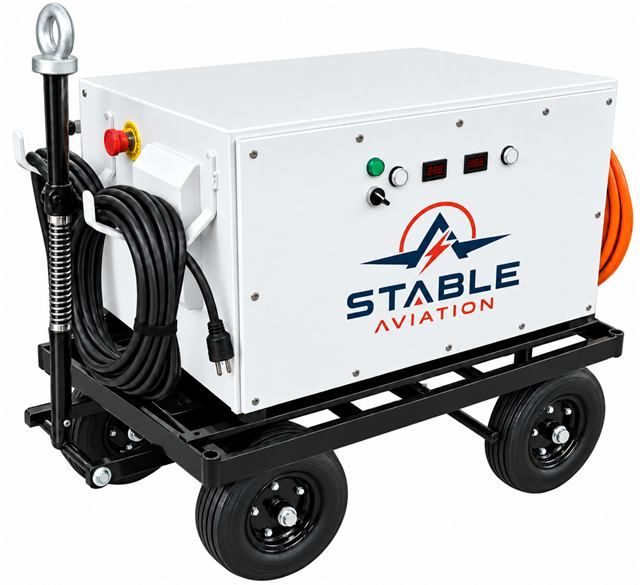

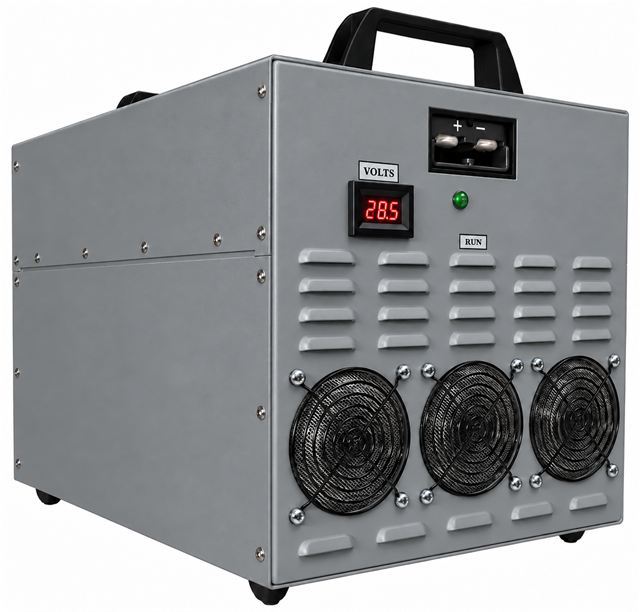

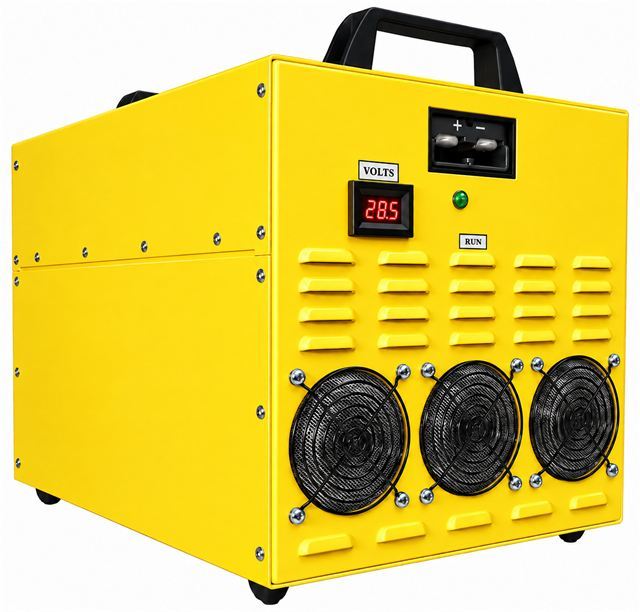

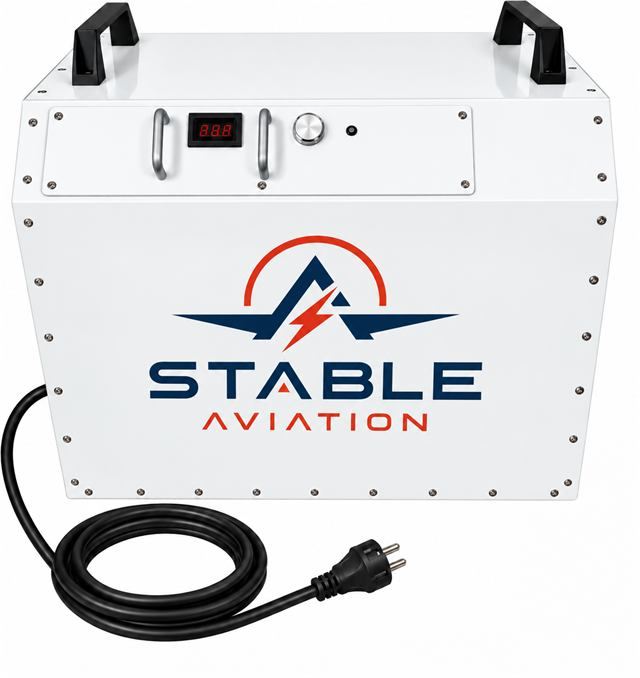

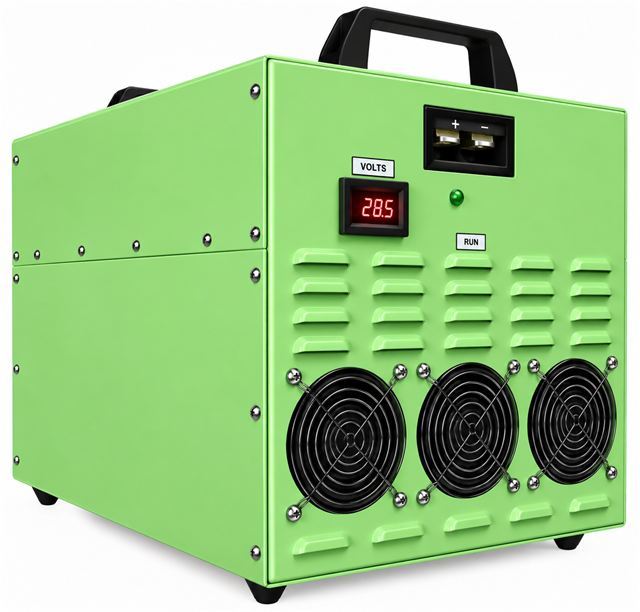

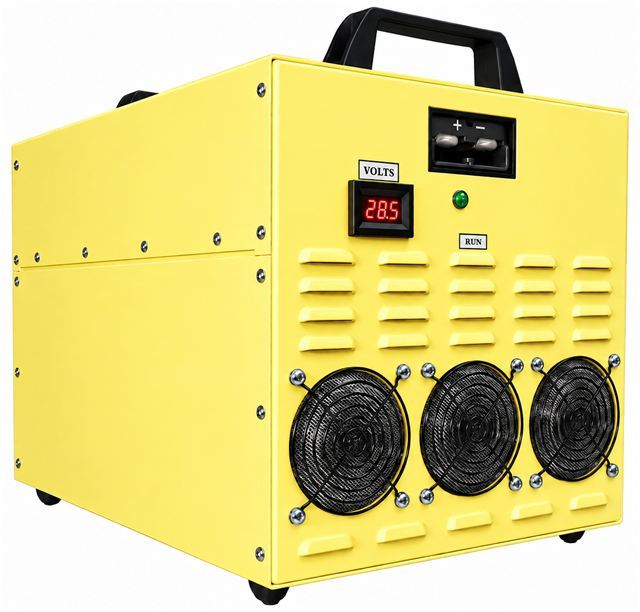

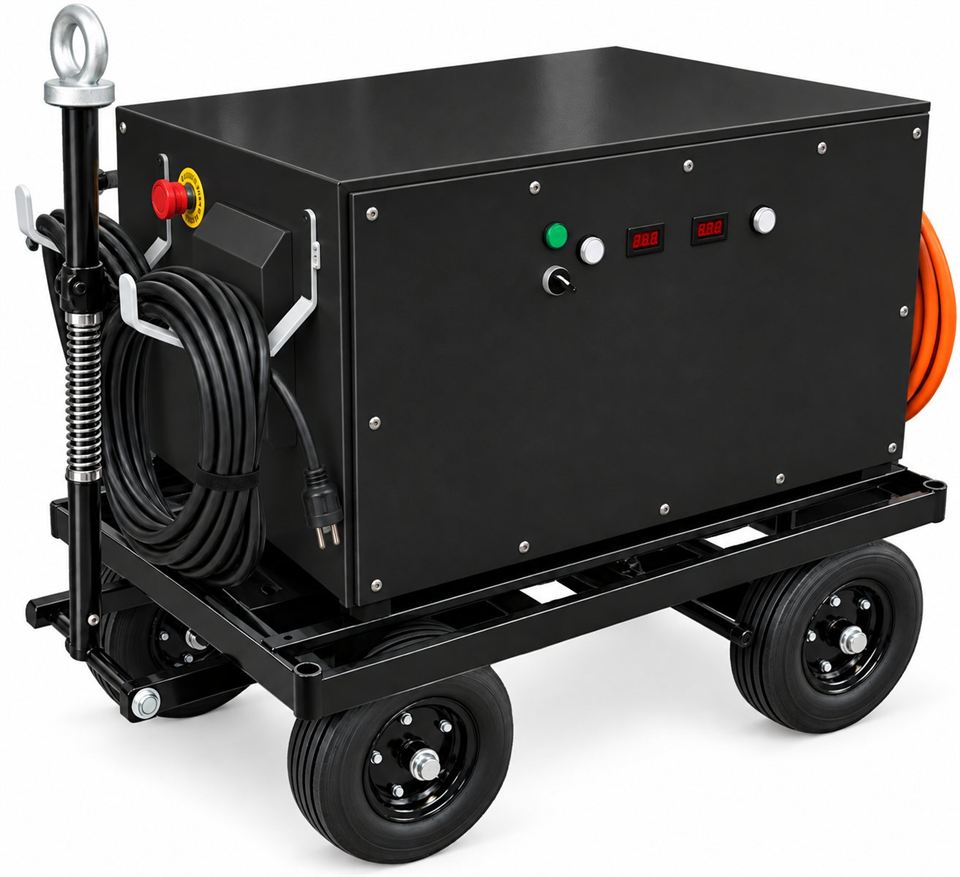

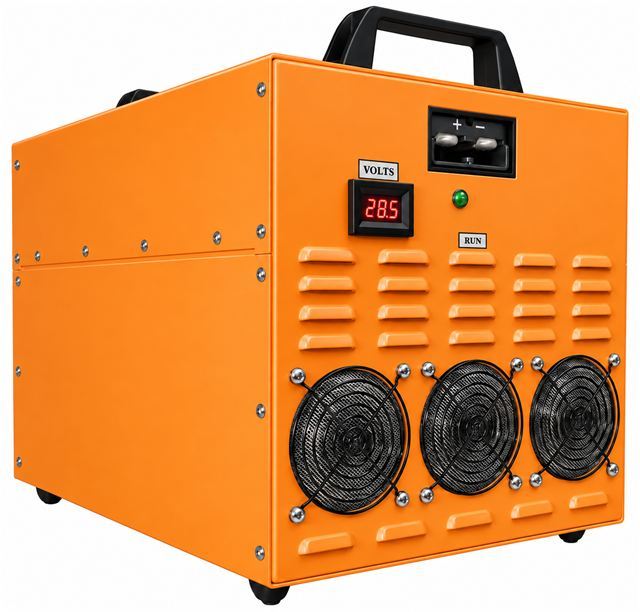

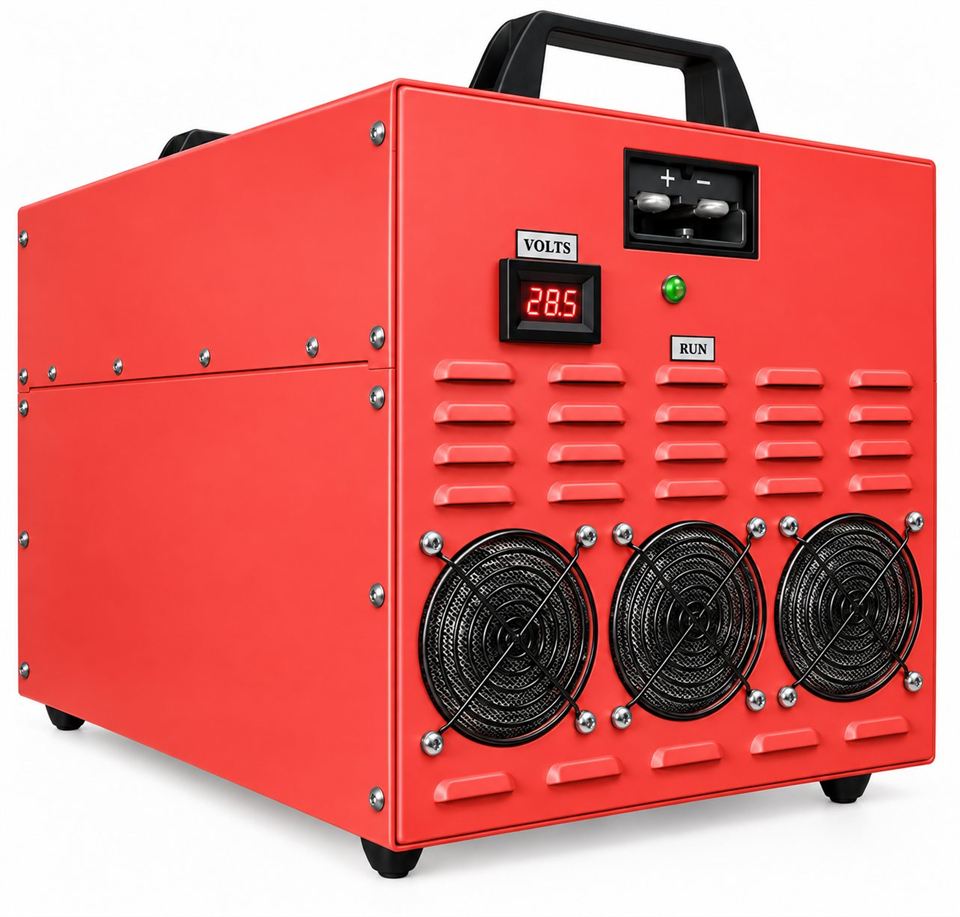

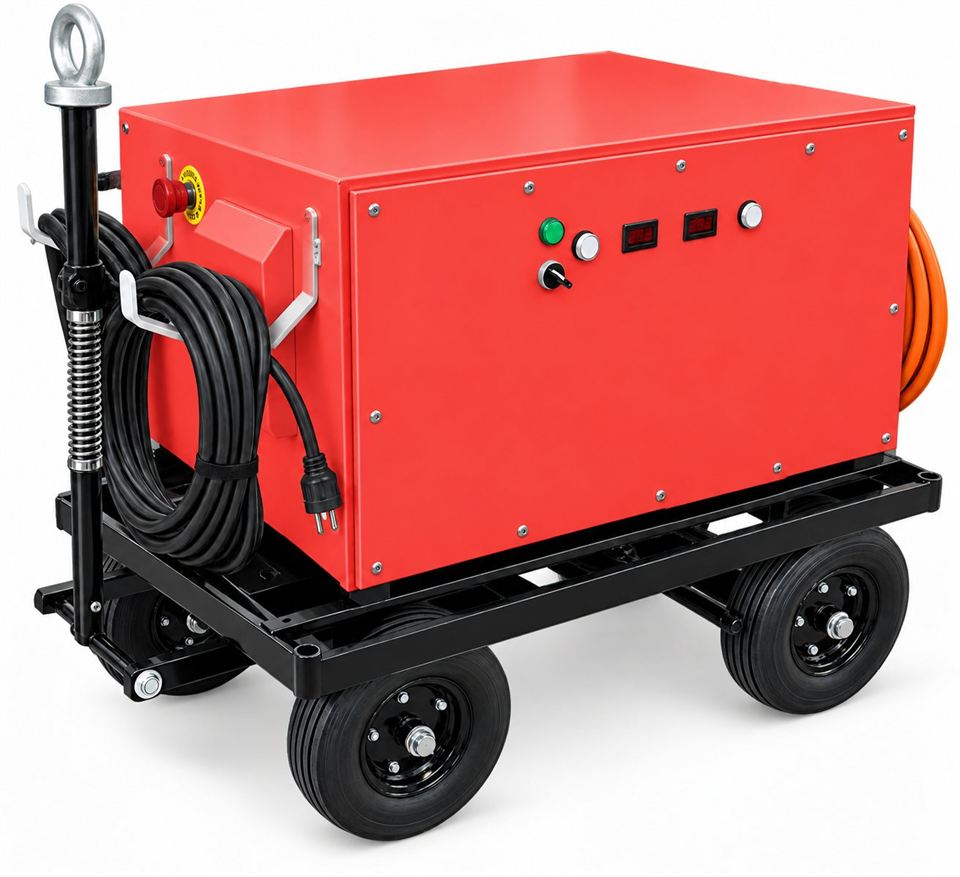

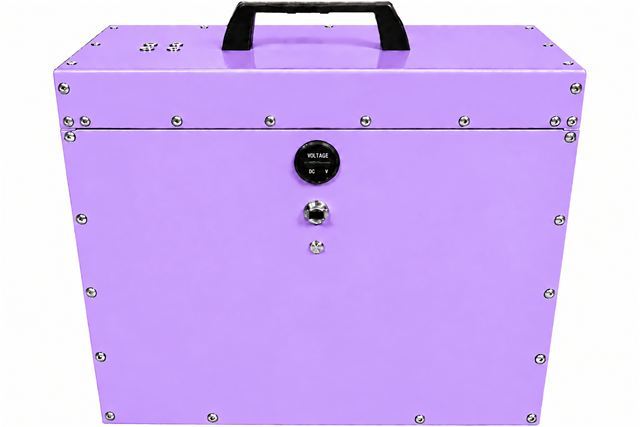

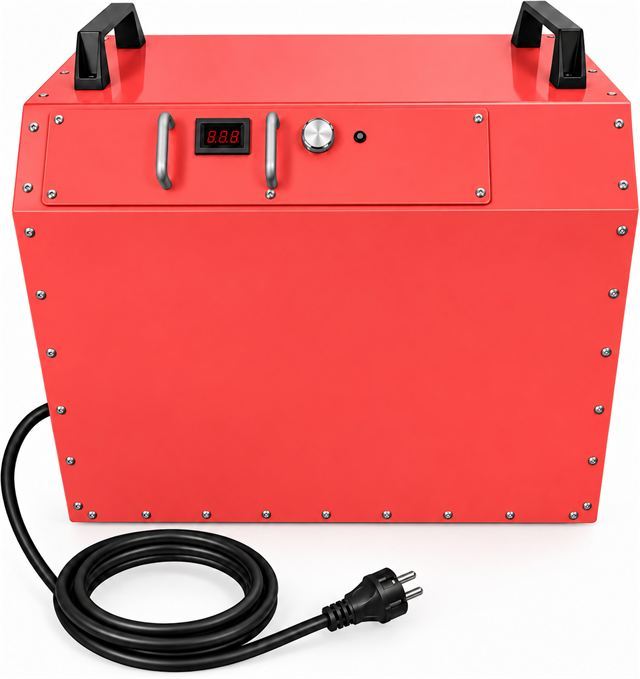

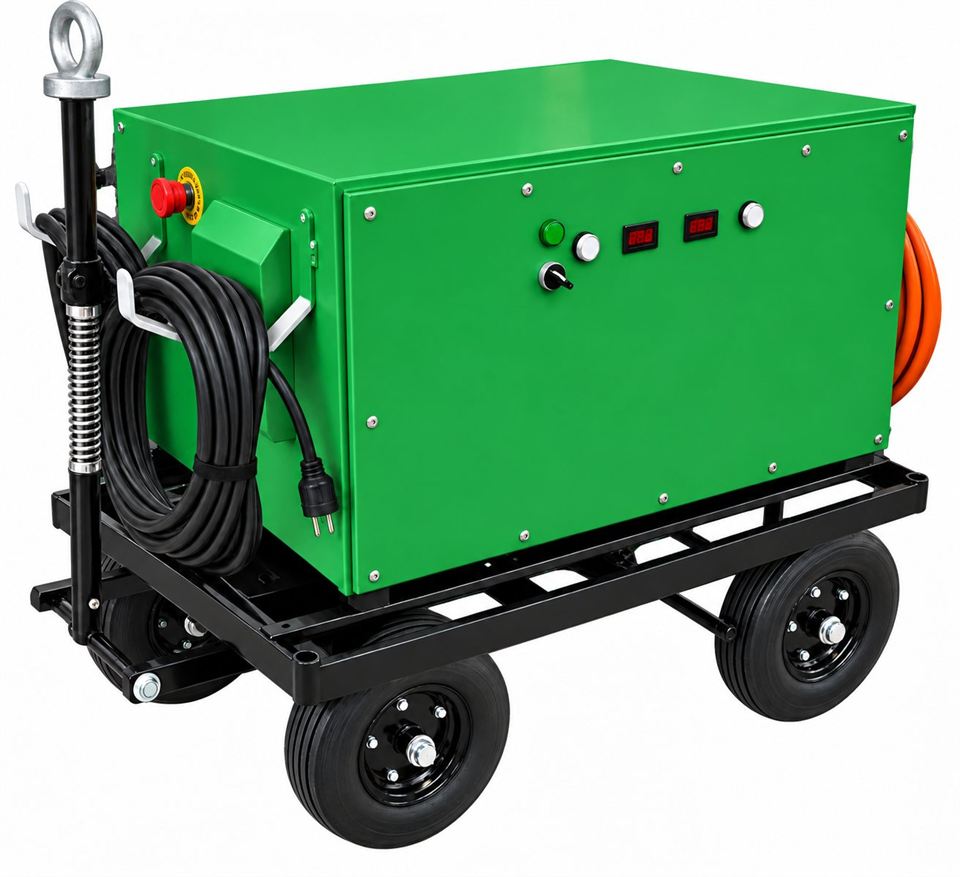

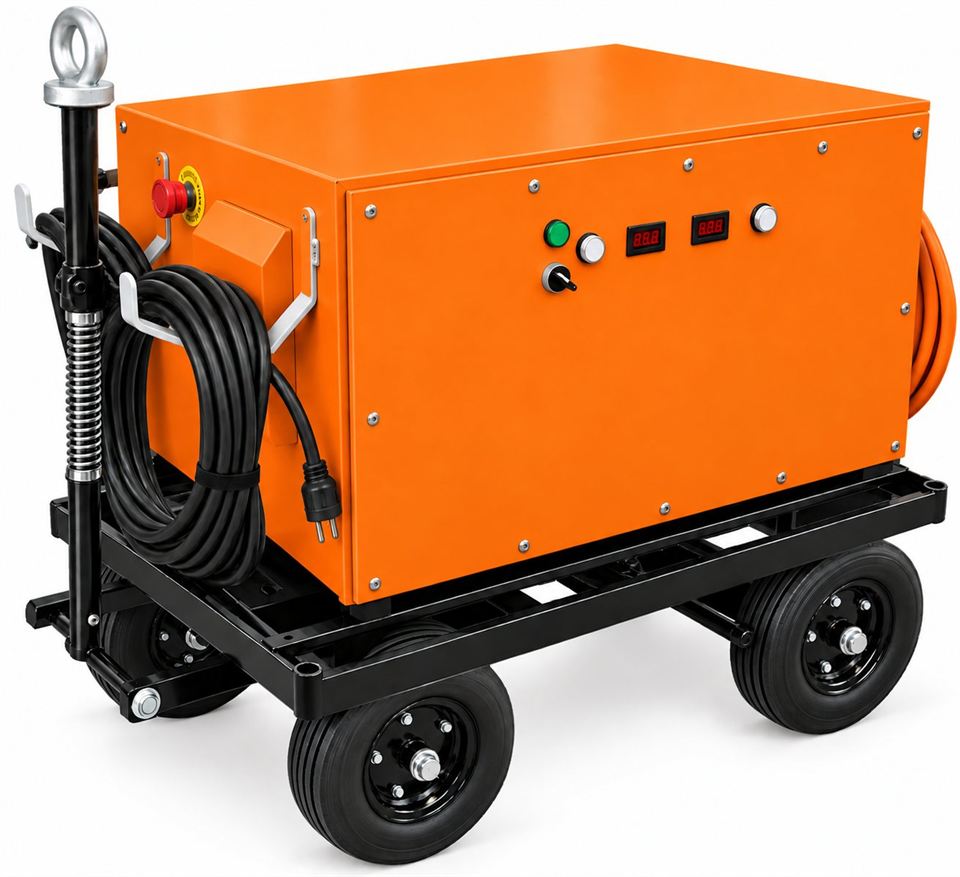

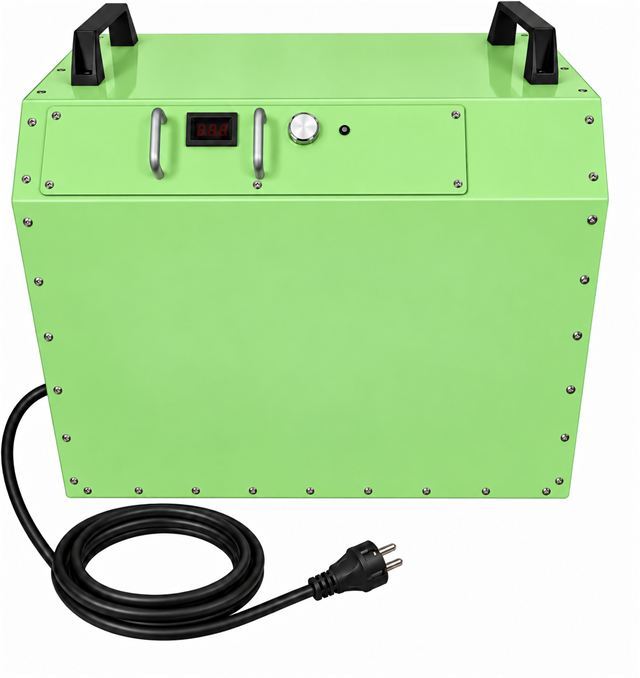

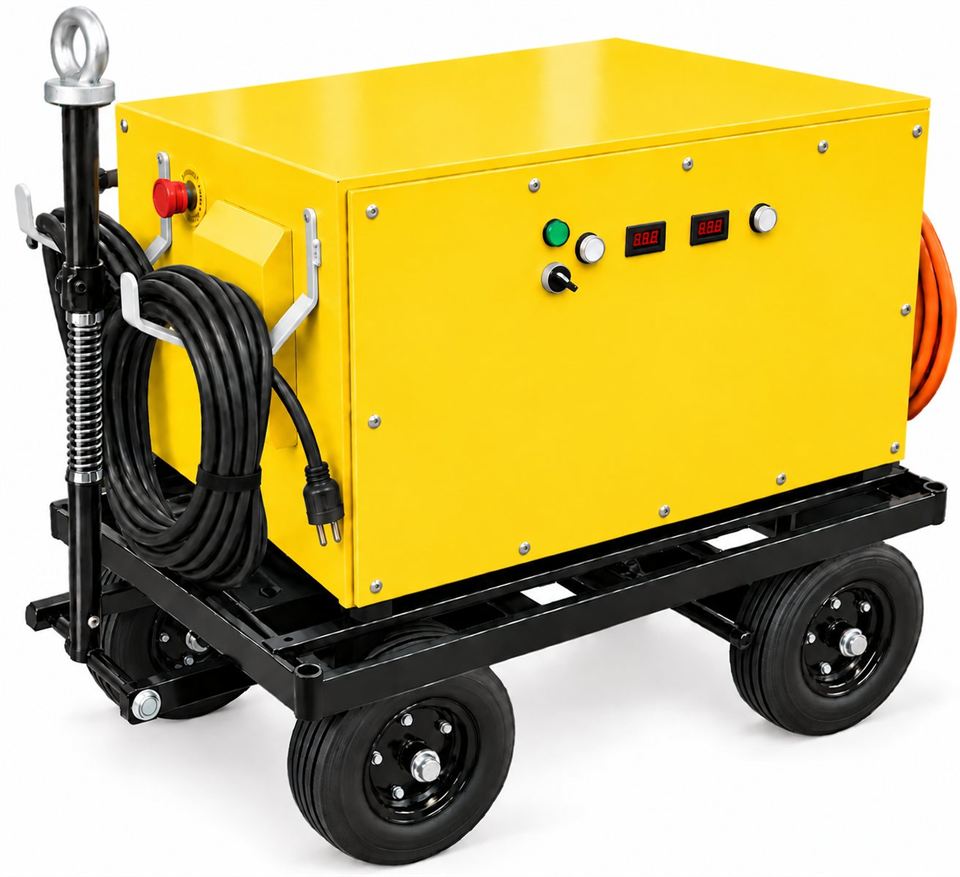

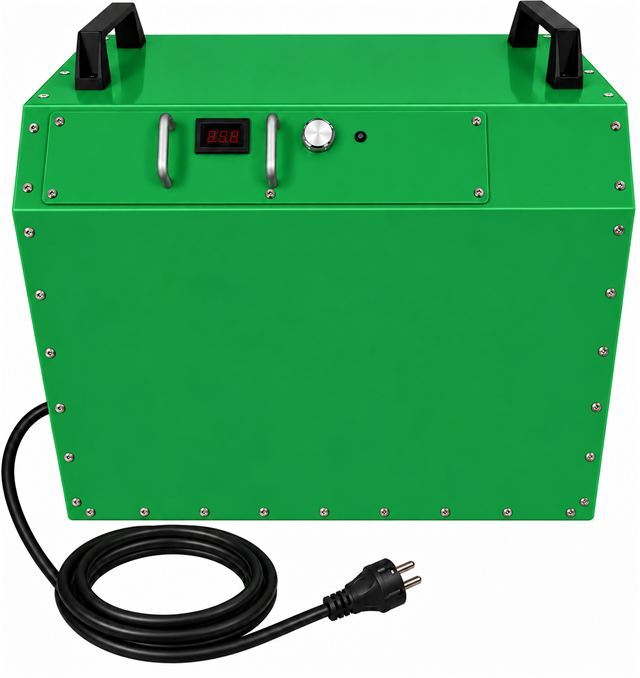

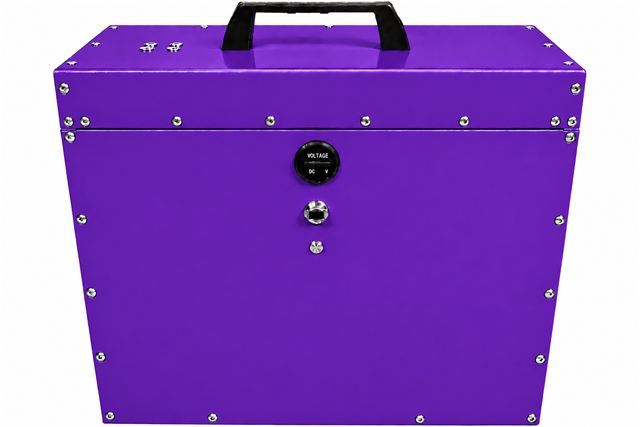

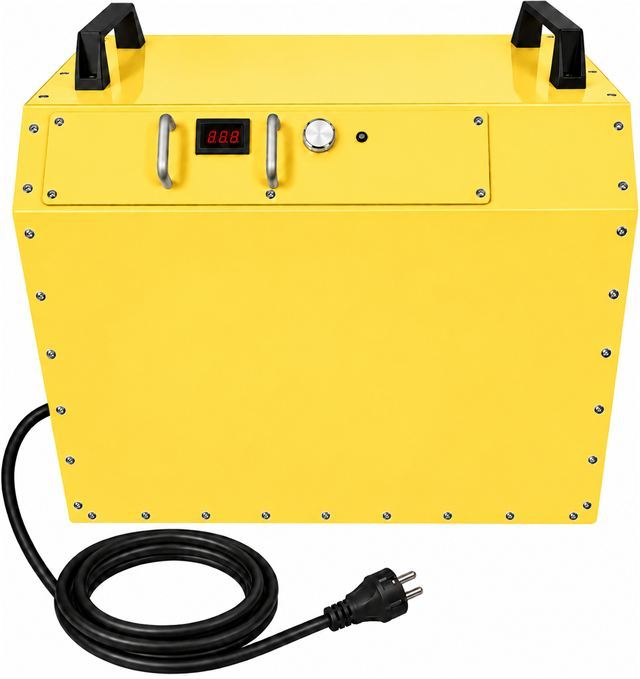

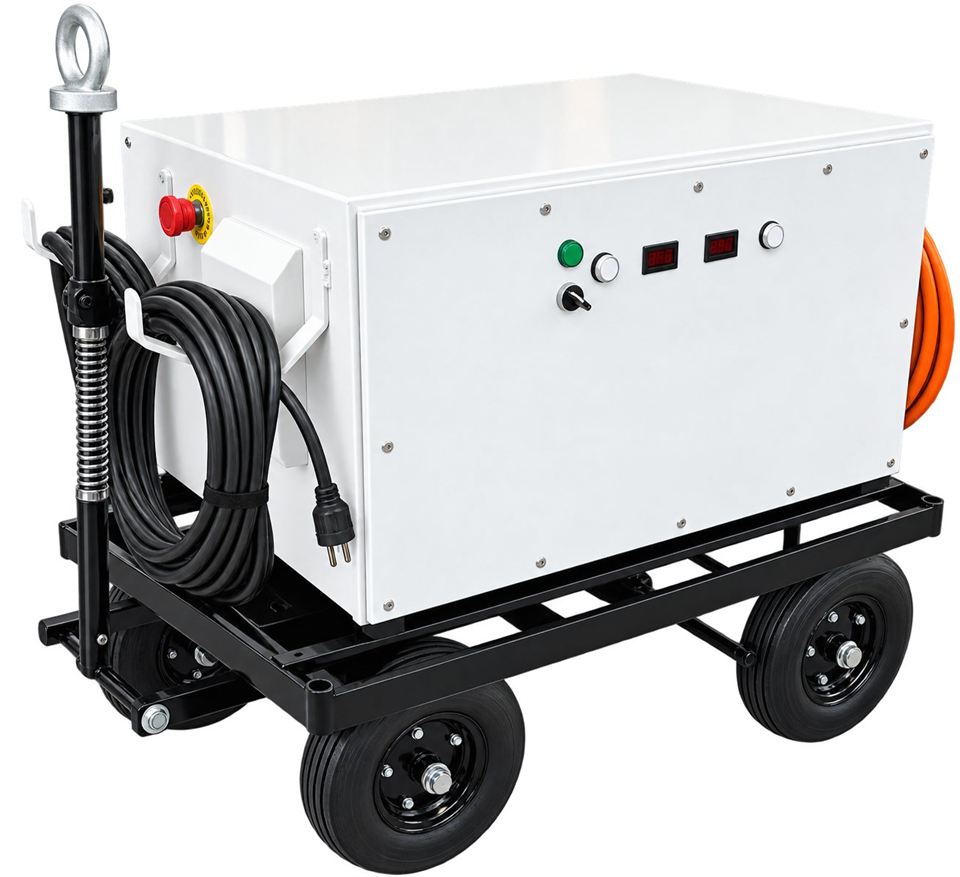

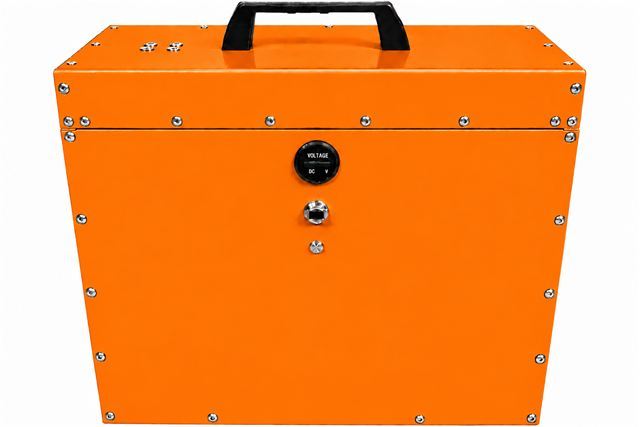

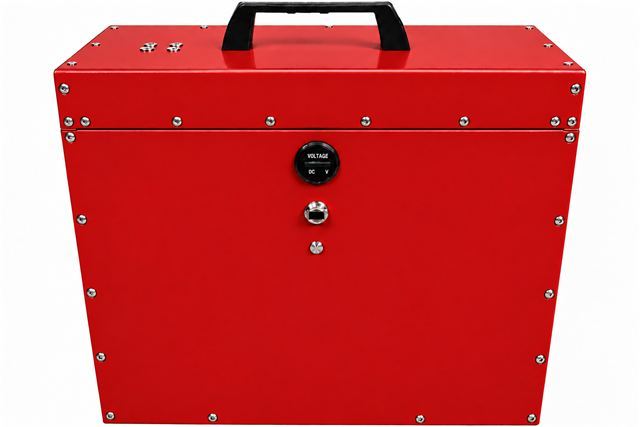

Stable Aviation ST1000S/2000S/5000S starter power unit Stable Aviation ST10000S/15000S/20000S starter power unit Stable Aviation starter power unit, finished in a custom colour Stable Aviation starter power unit with company logo
SpecificationST1000S 24/26/28ST2000S 24/26/28ST5000S 24/26/28ST10000S 24/26/28ST15000S 24/26/28ST20000S 24/26/28
Input voltage for charging90–260VAC90–260VAC90–260VAC90–260VAC90–260VAC90–260VAC
Output voltage25.8 / 27.9 / 30.1 VDC25.8 / 27.9 / 30.1 VDC25.8 / 27.9 / 30.1 VDC25.8 / 27.9 / 30.1 VDC25.8 / 27.9 / 30.1 VDC25.8 / 27.9 / 30.1 VDC
Starting current1,100A2,200A2,250A2,250A2,250A2,250A
Short circuit current2,450A4,900A5,000A5,000A5,000A5,000A
Battery capacity45 A/Hr90 A/Hr130 A/Hr260 A/Hr390 A/Hr520 A/Hr
Dimensions (L-W-H)500-160-400 mm450-320-320 mm550-400-450 mm1000-750-800 mm1000-750-800 mm1000-750-800 mm
Weight28/30/32 kg60/64/68 kg100/110/120 kg200/220/240 kg300/330/360 kg400/440/480 kg

28V continuous power for aircraft

Stable Aviation manufactures portable continuous power units, used for avionics work, maintenance, diagnostics and demonstrations. These units are in operation at hangars, maintenance facilities, and airports around the world, and are praised for their performance by both personnel and managers with regard to efficiency, safety and flexibility towards all kinds of aircraft.

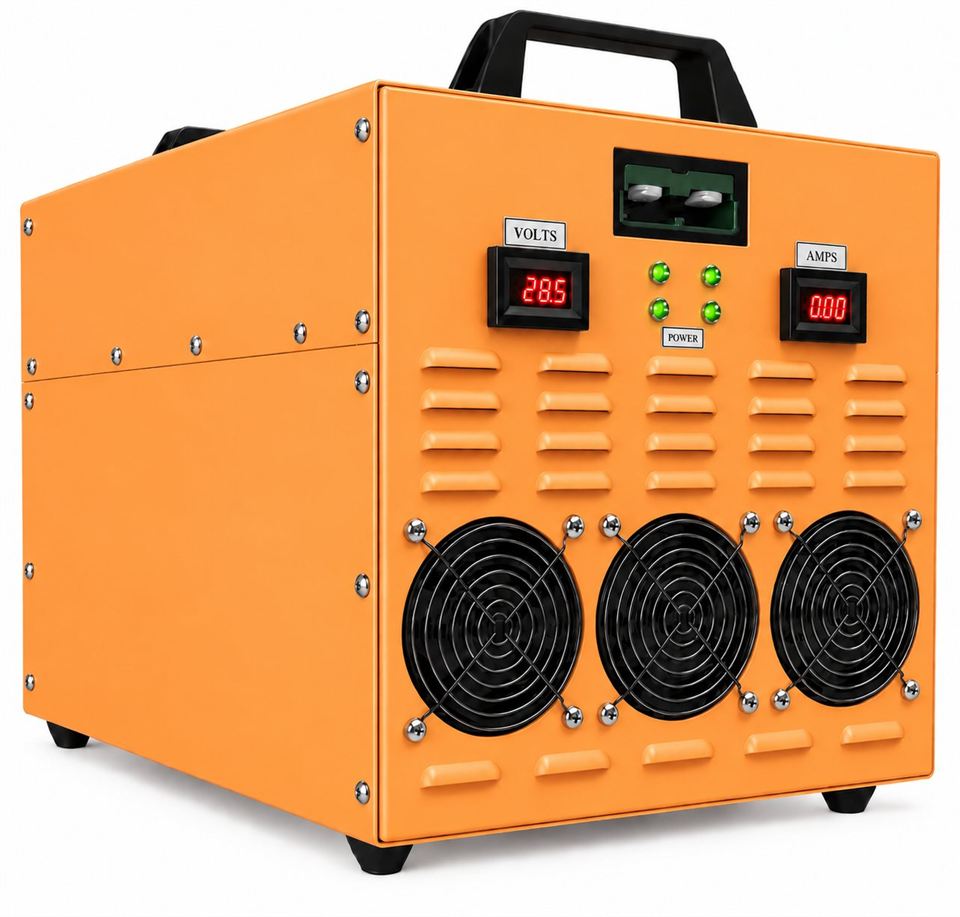

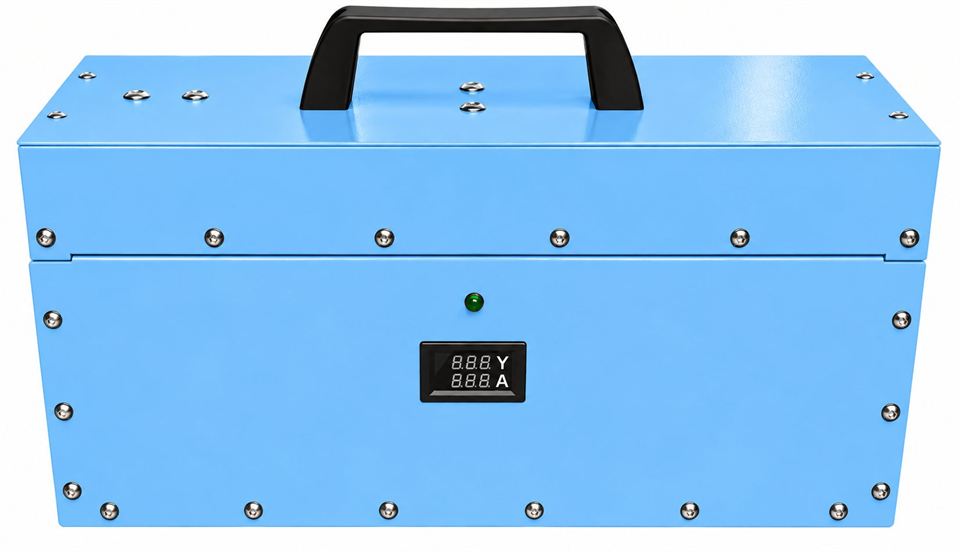

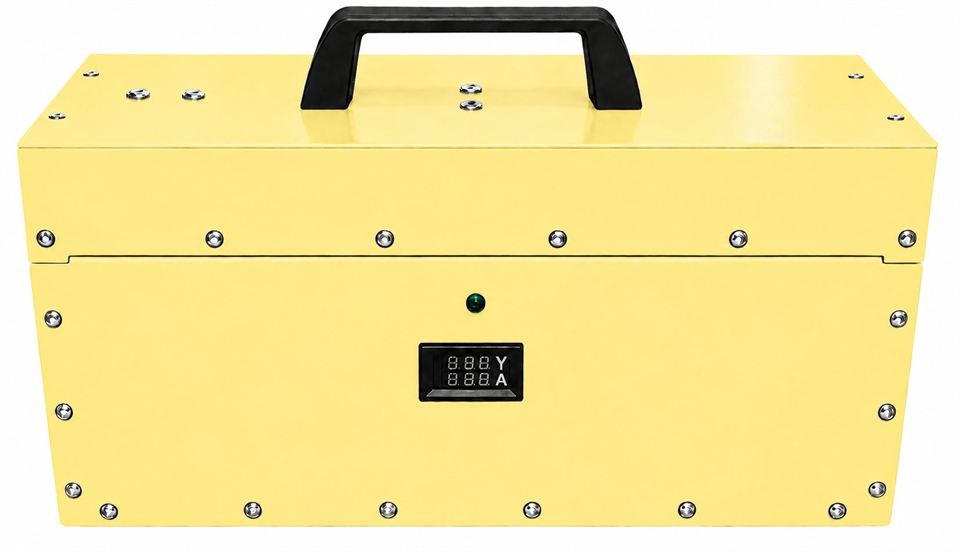

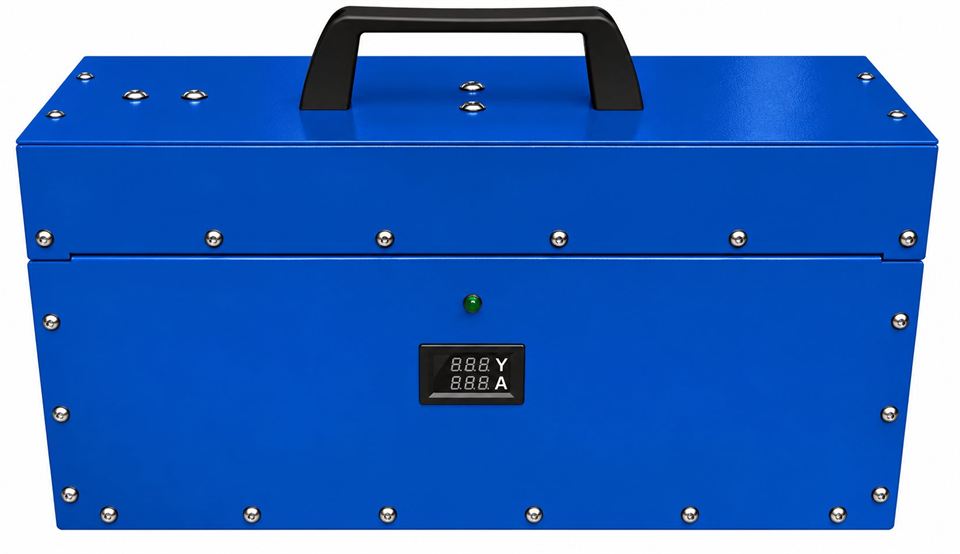

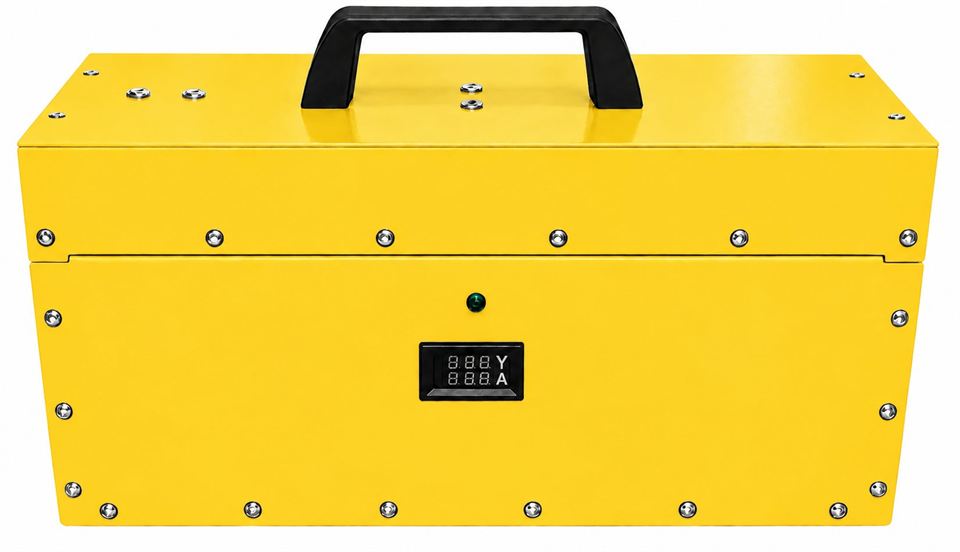

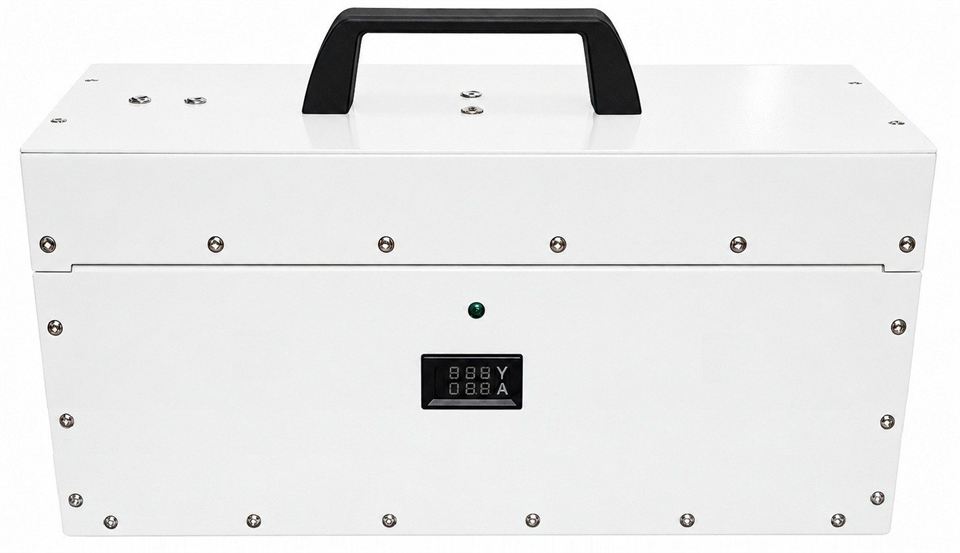

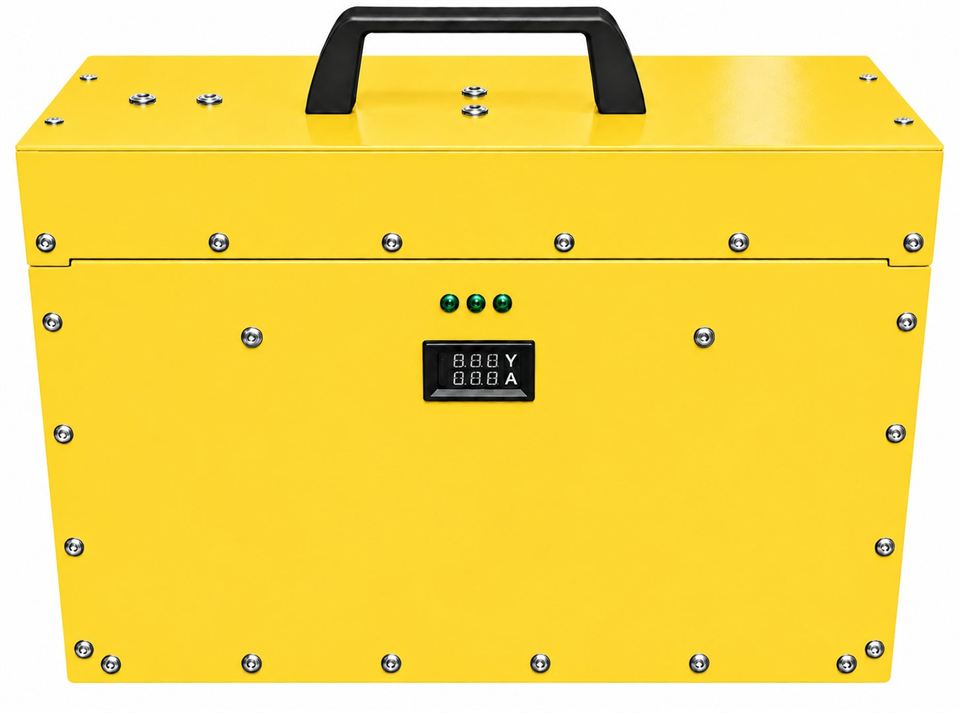

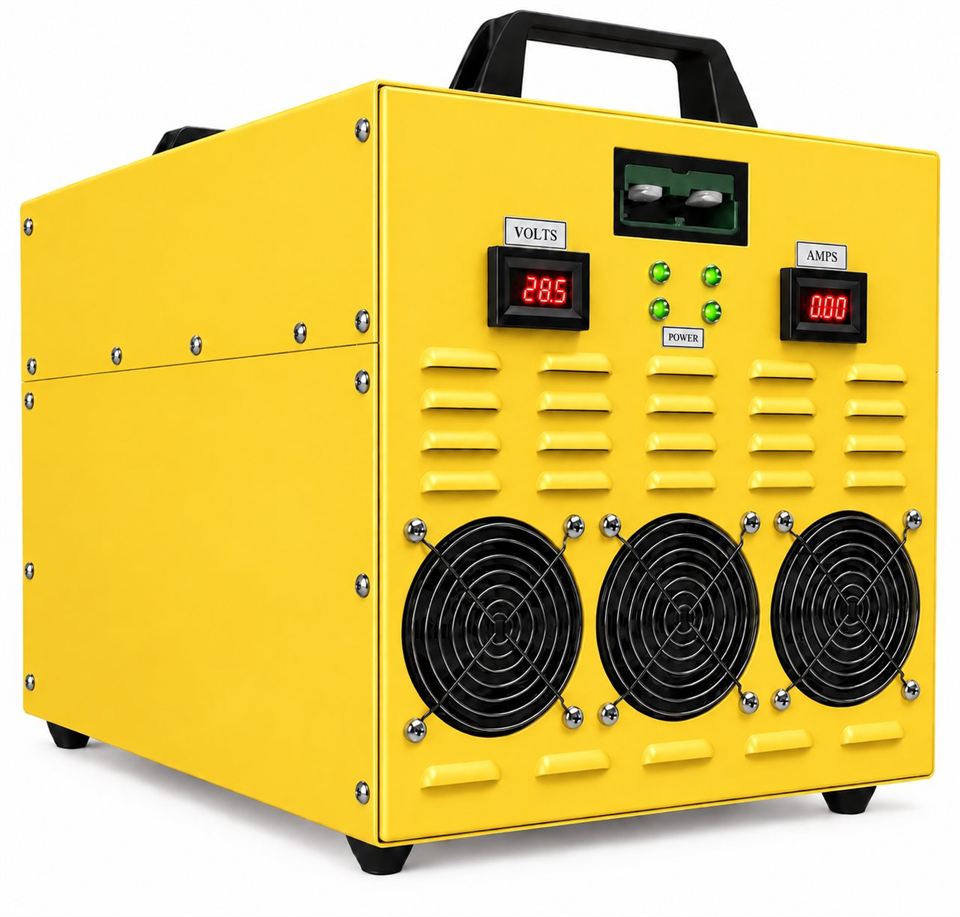

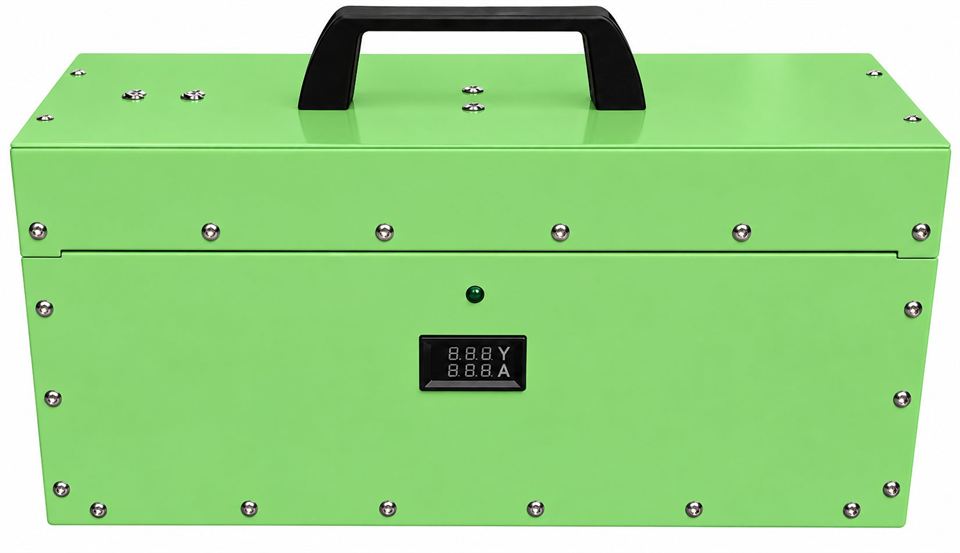

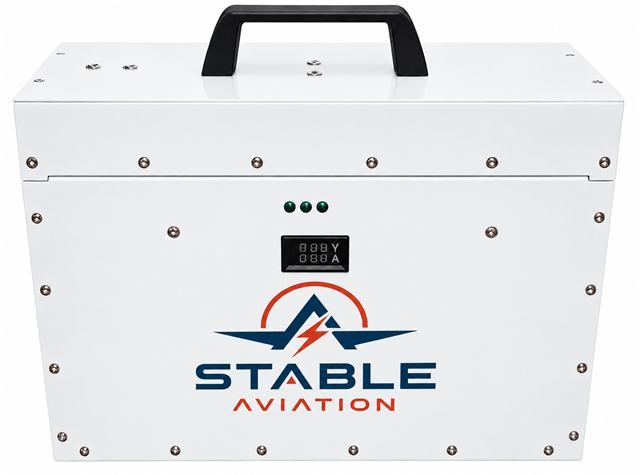

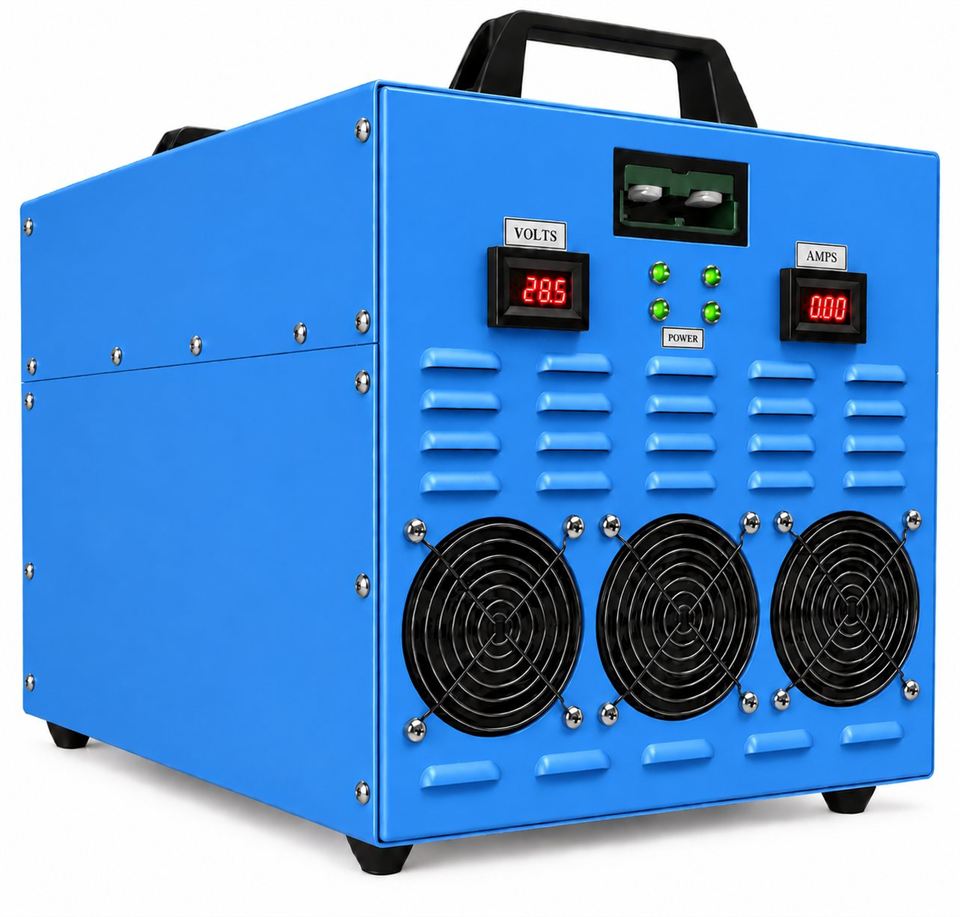

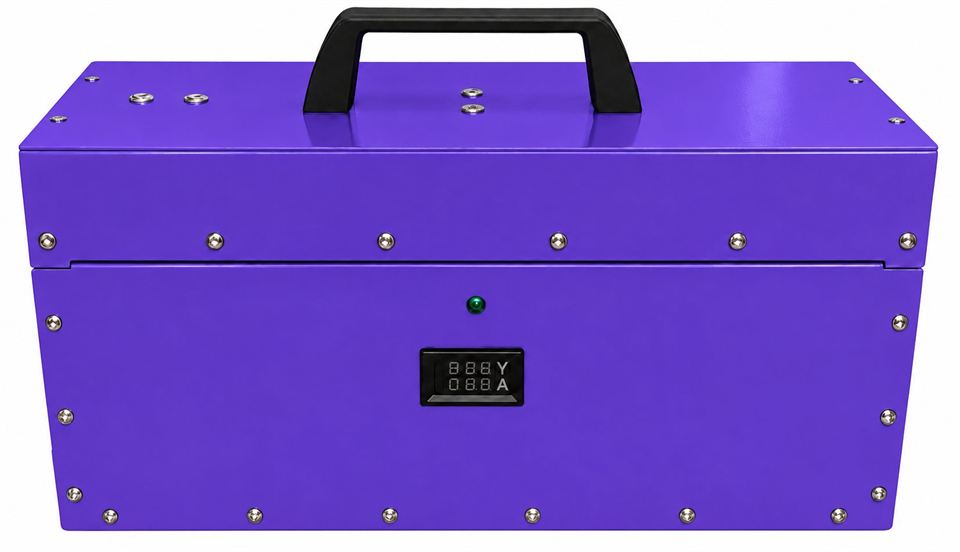

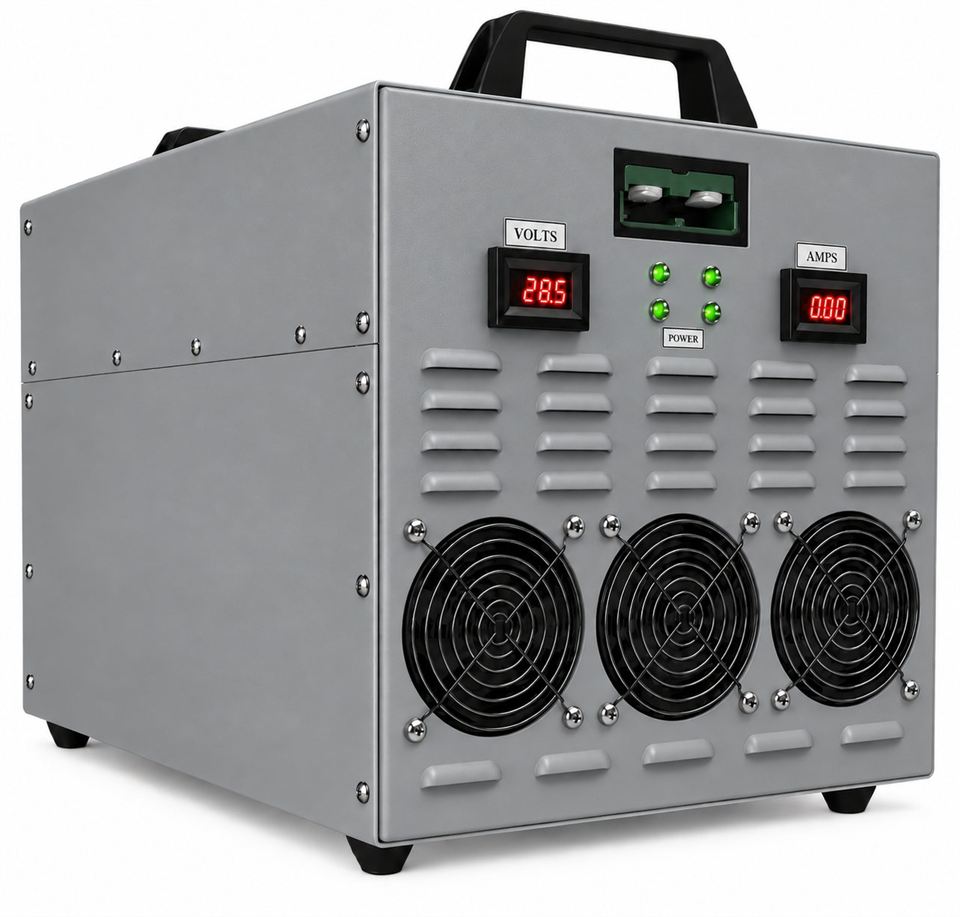

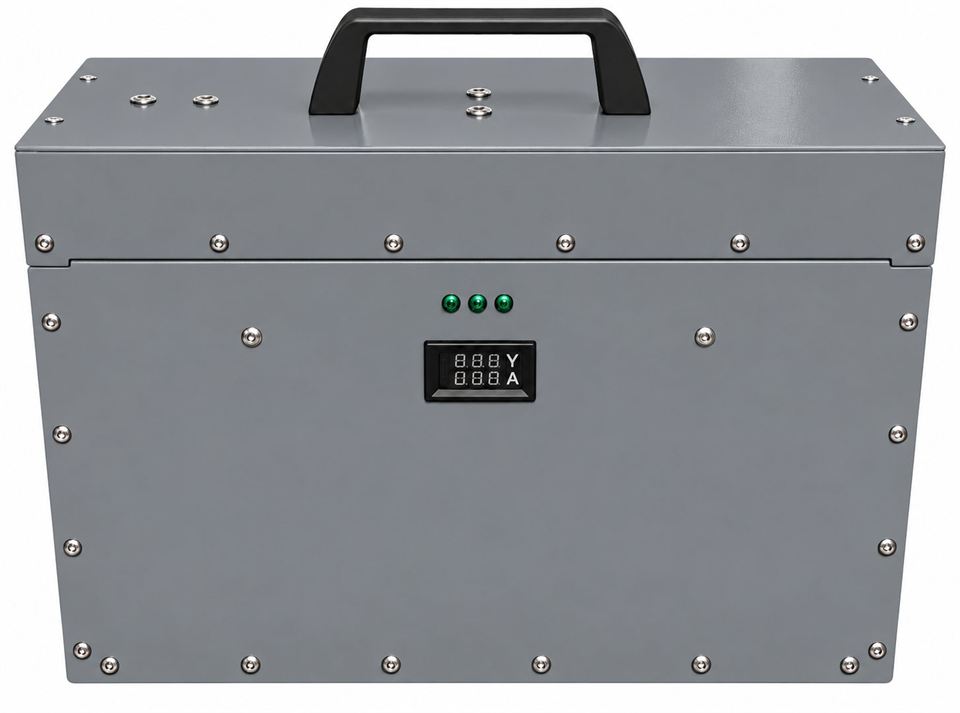

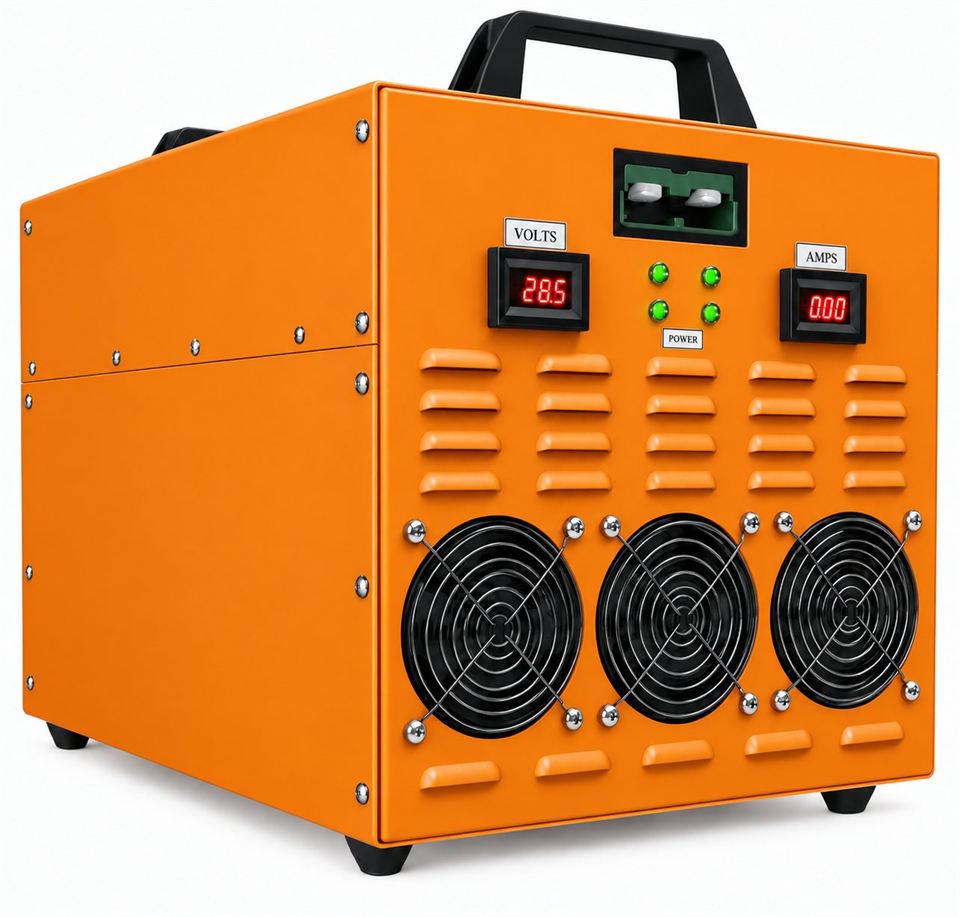

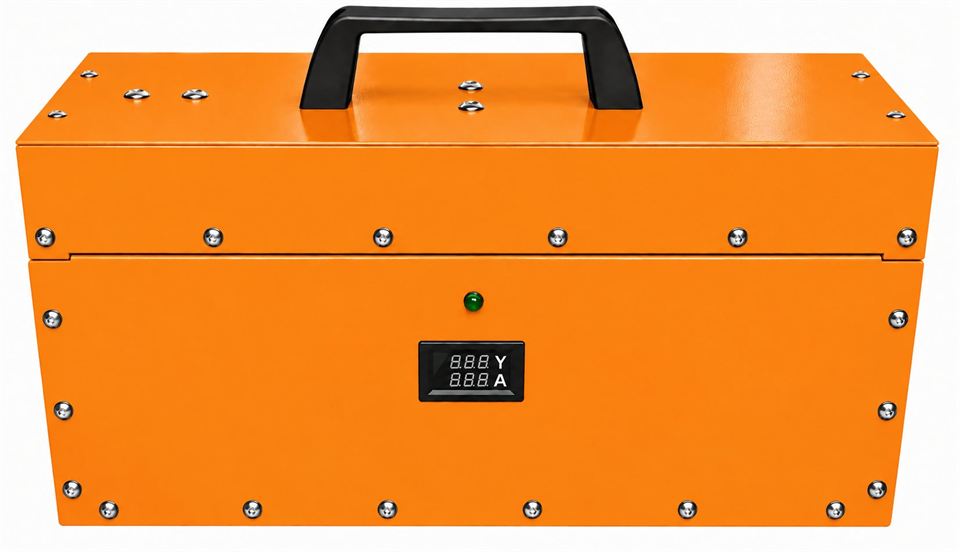

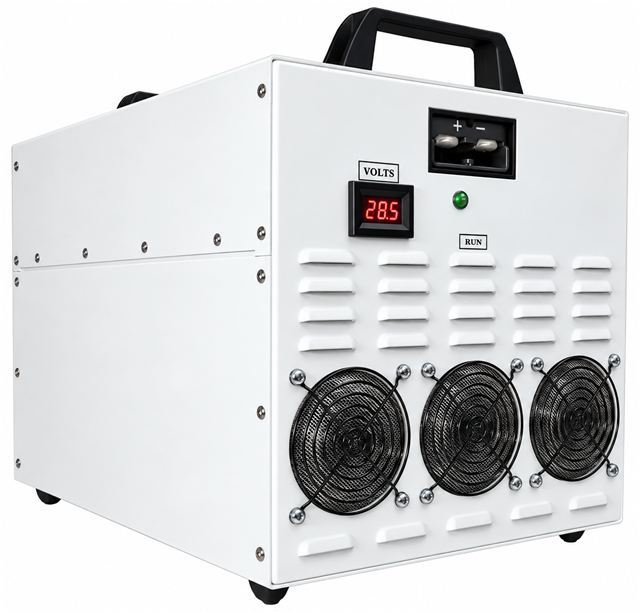

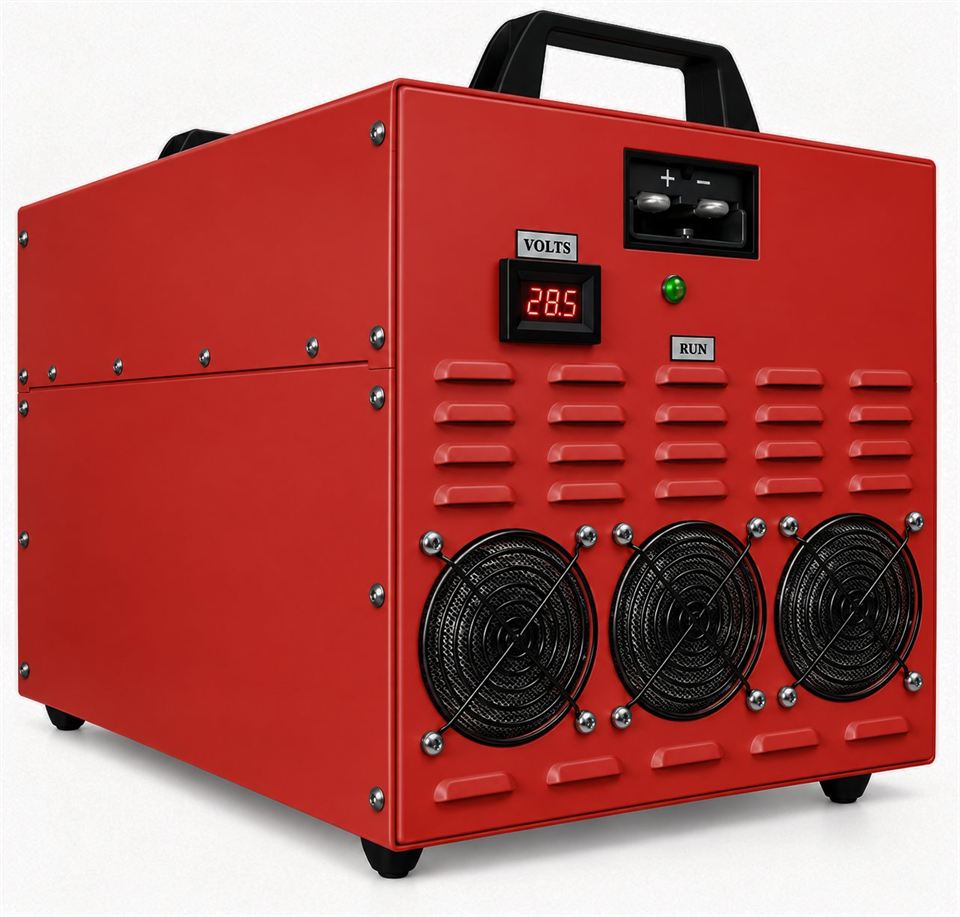

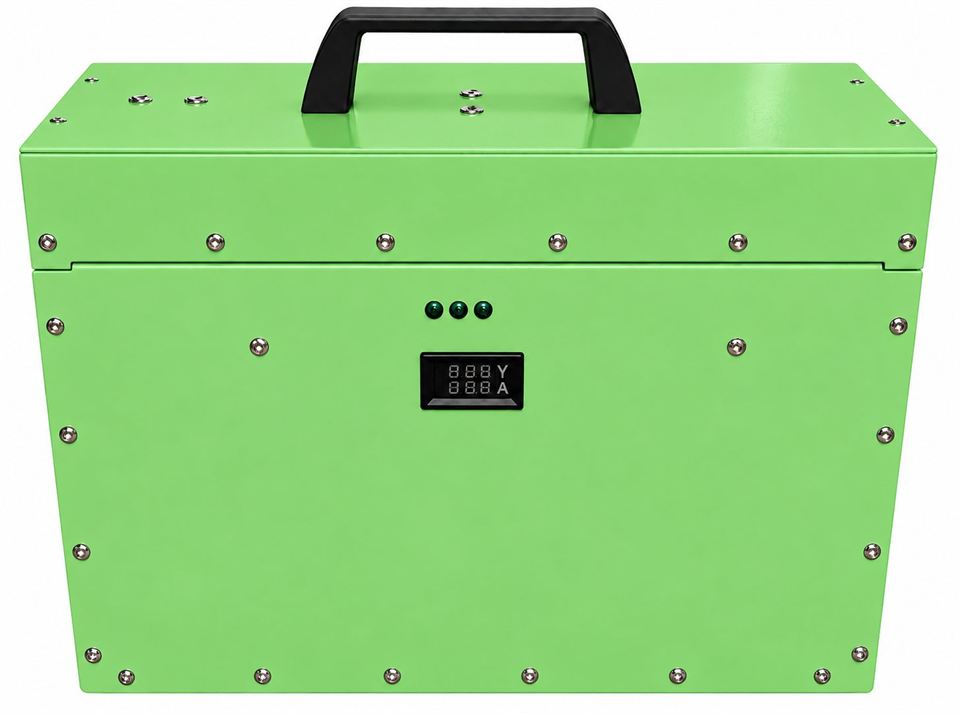

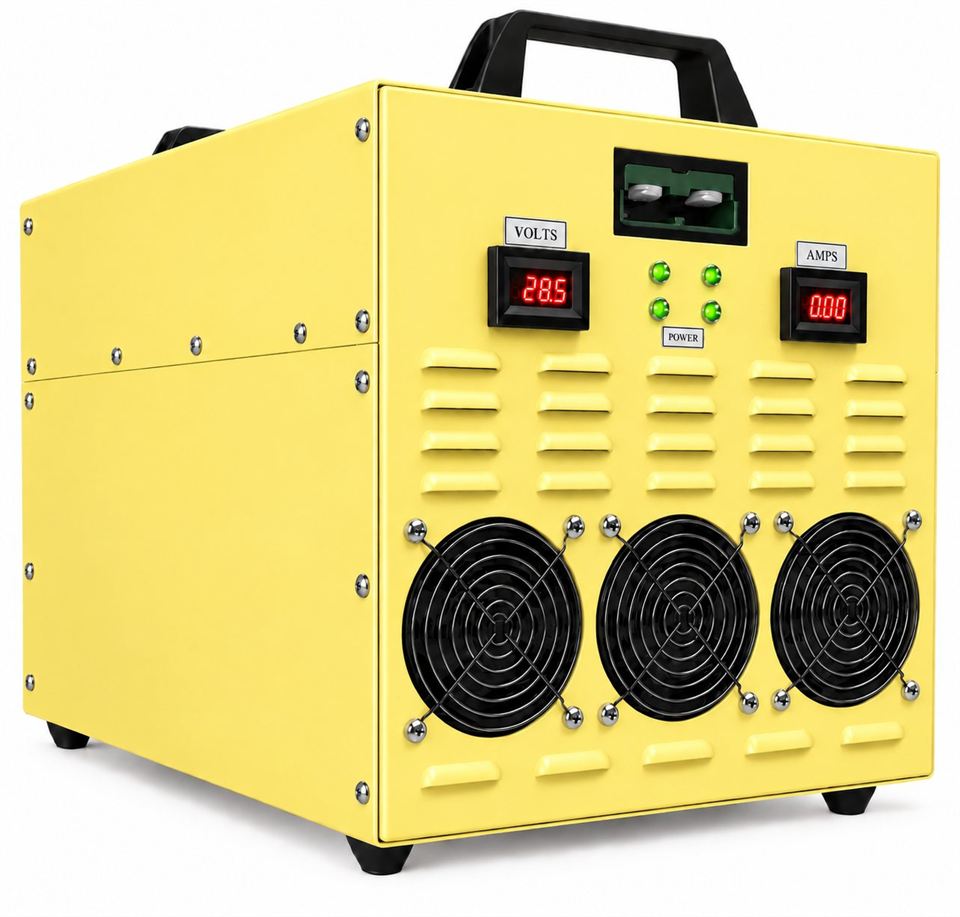

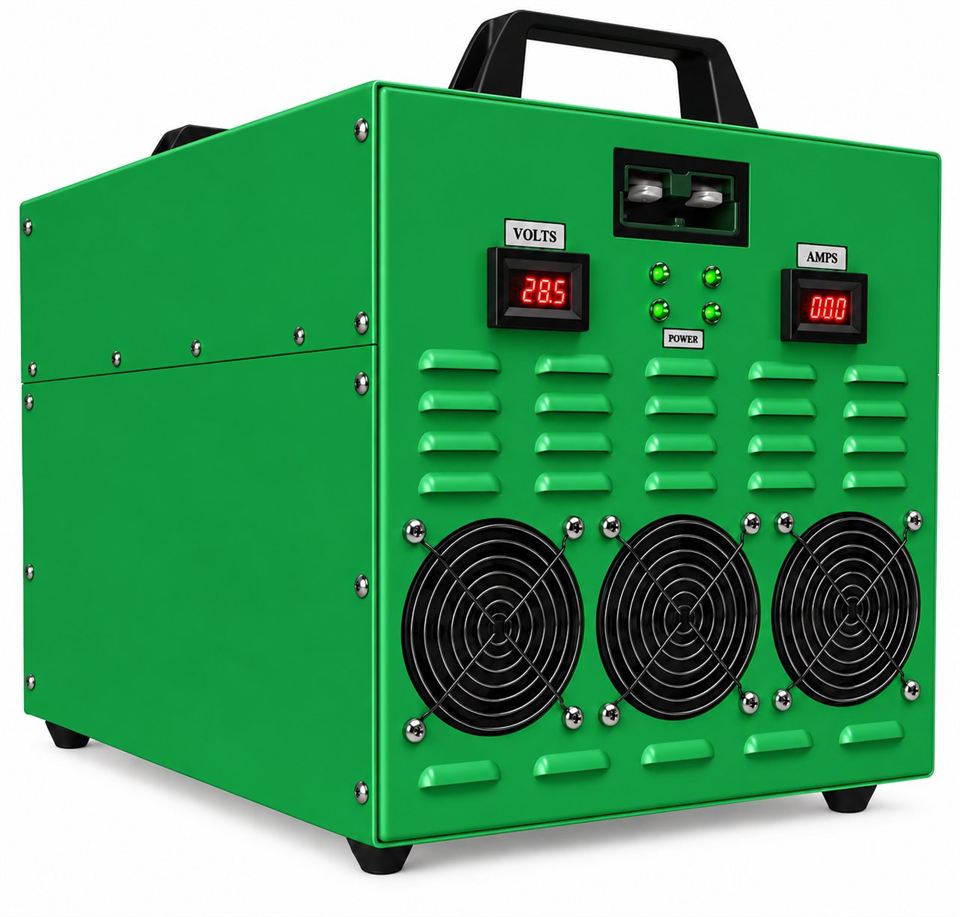

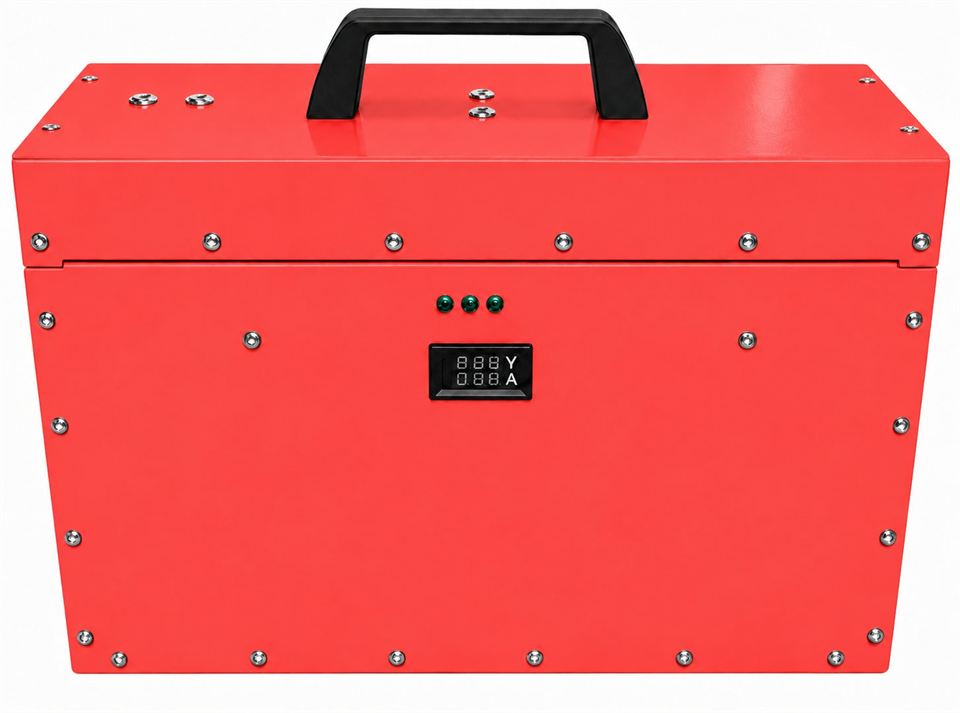

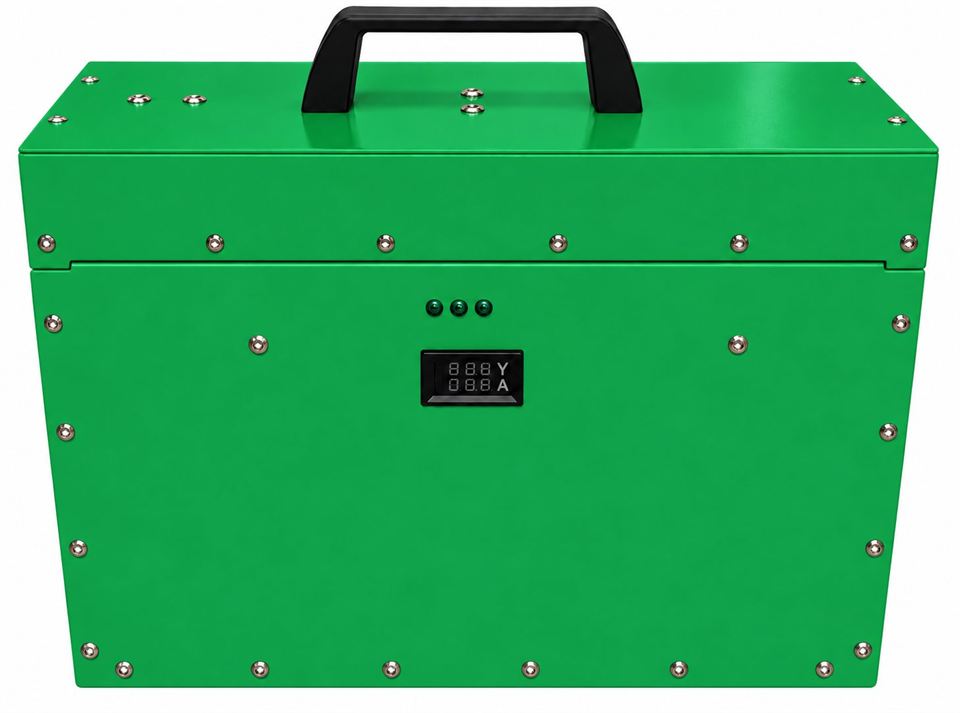

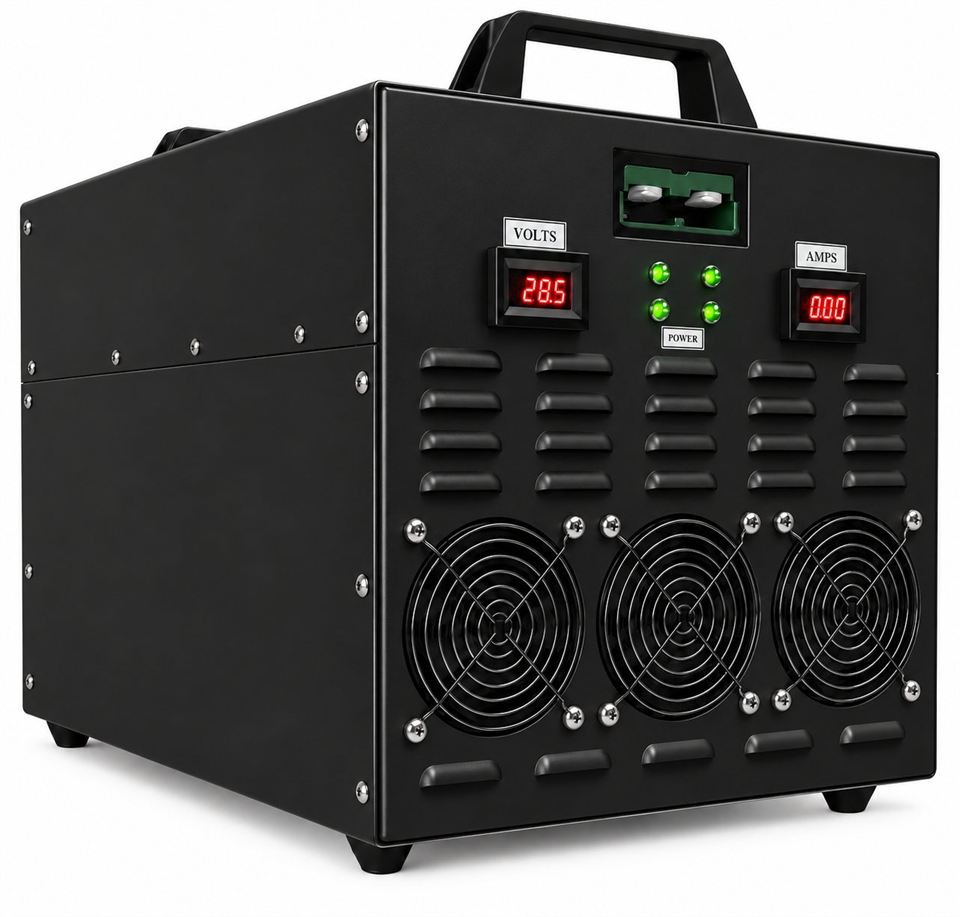

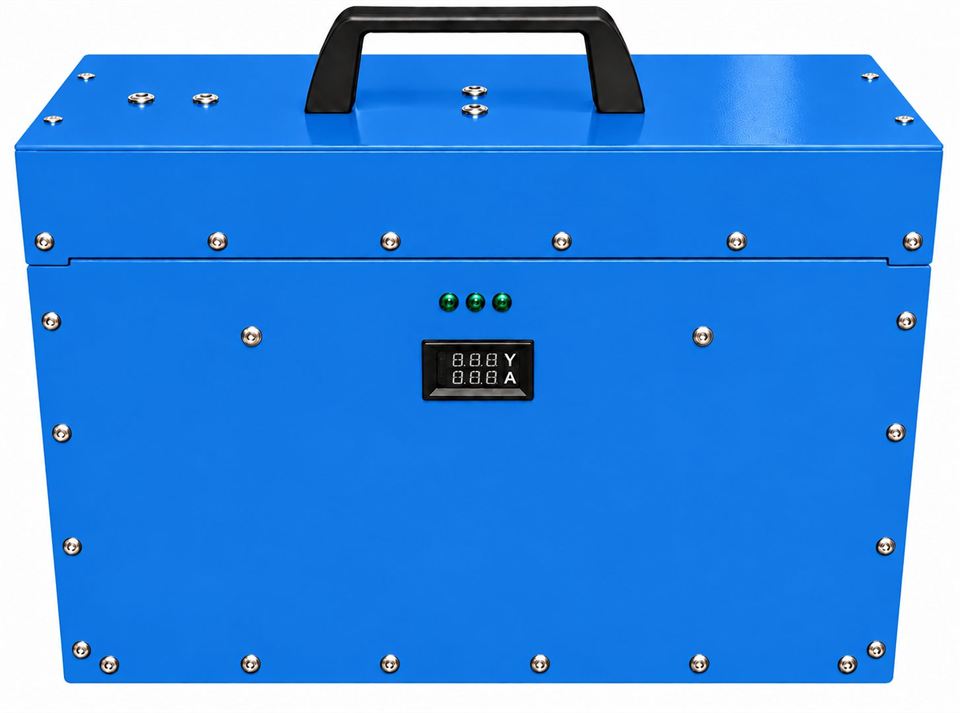

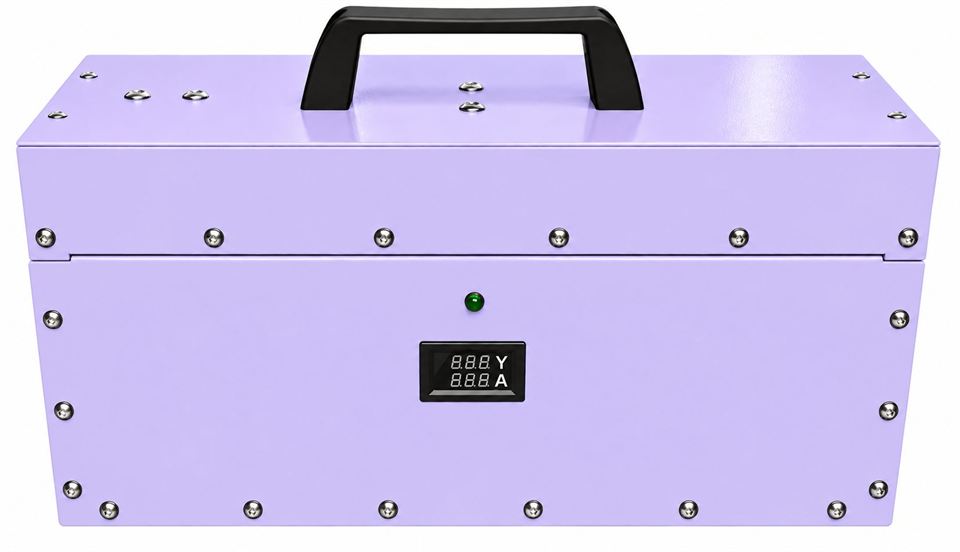

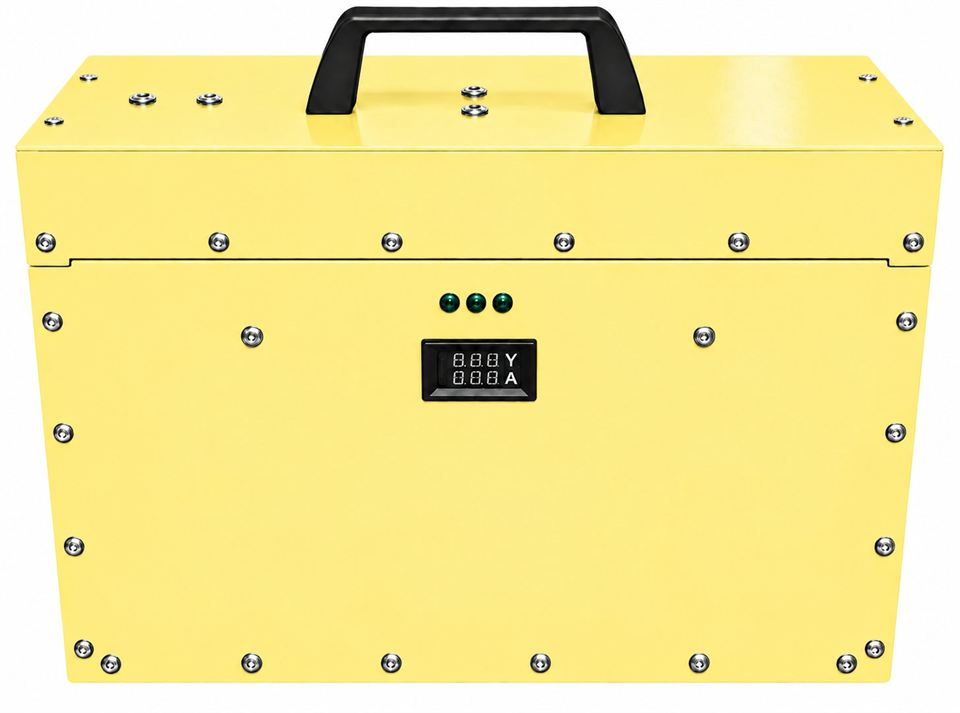

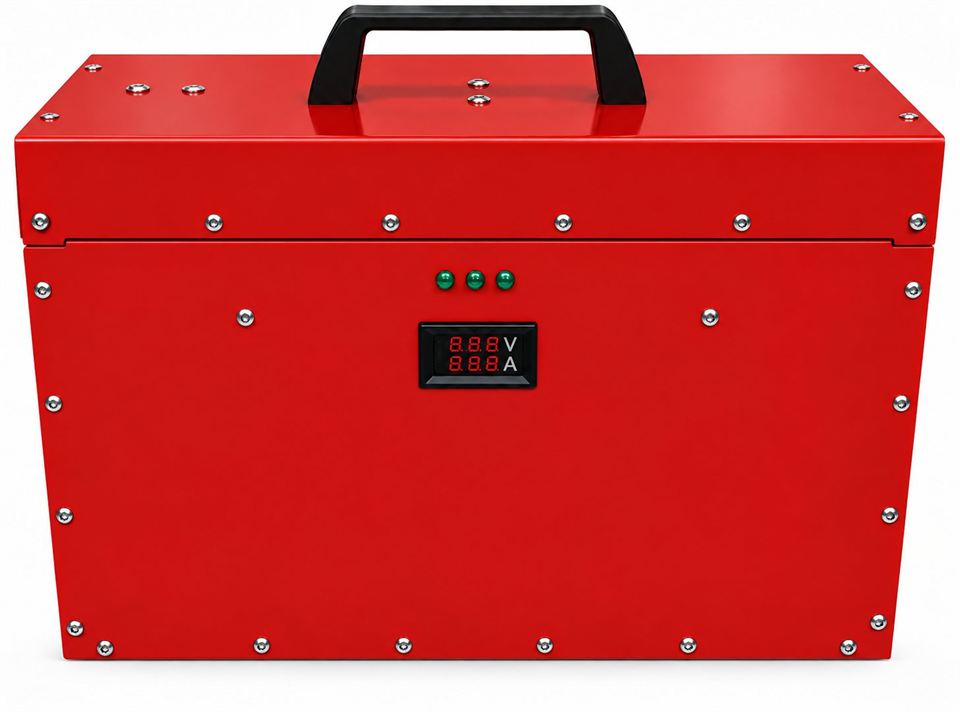

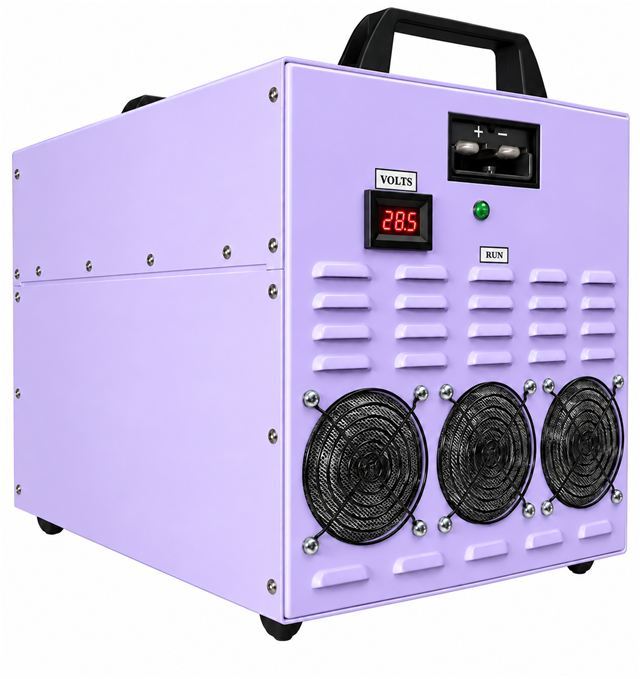

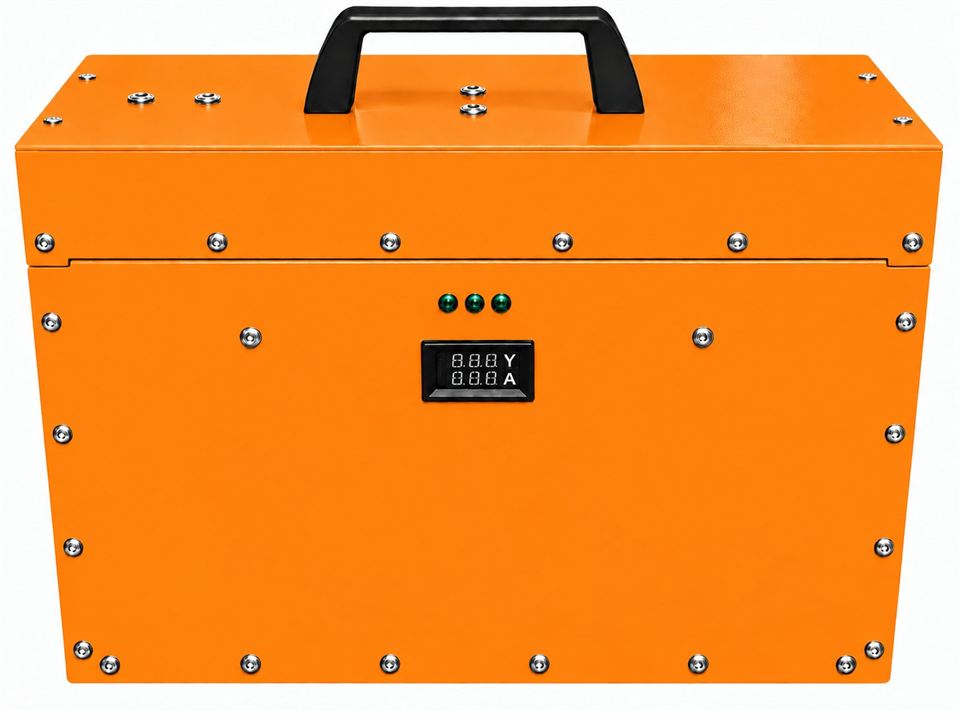

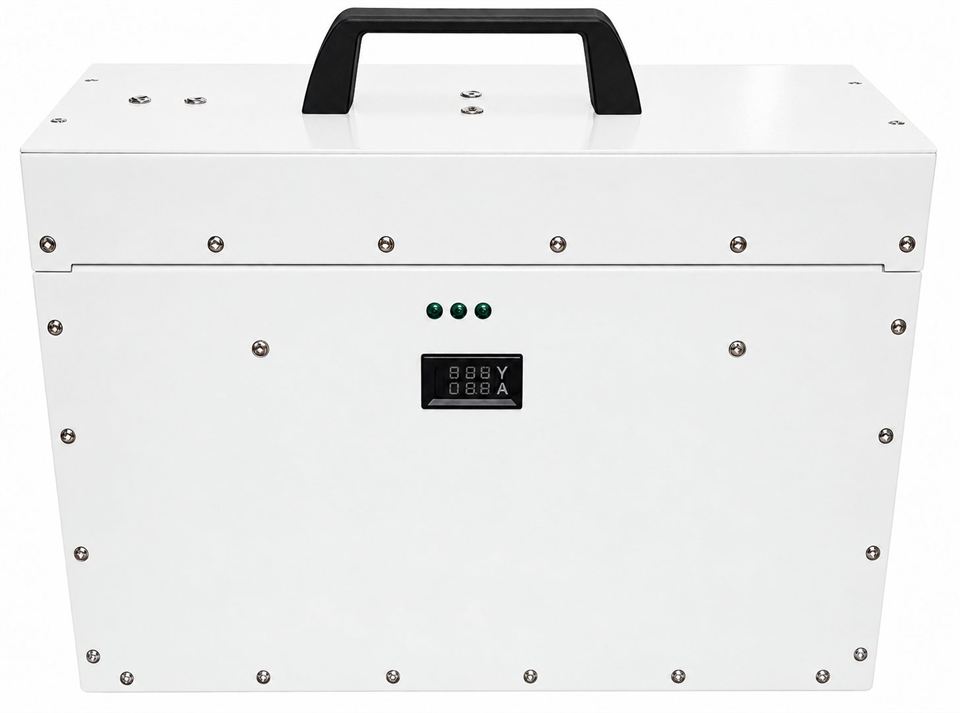

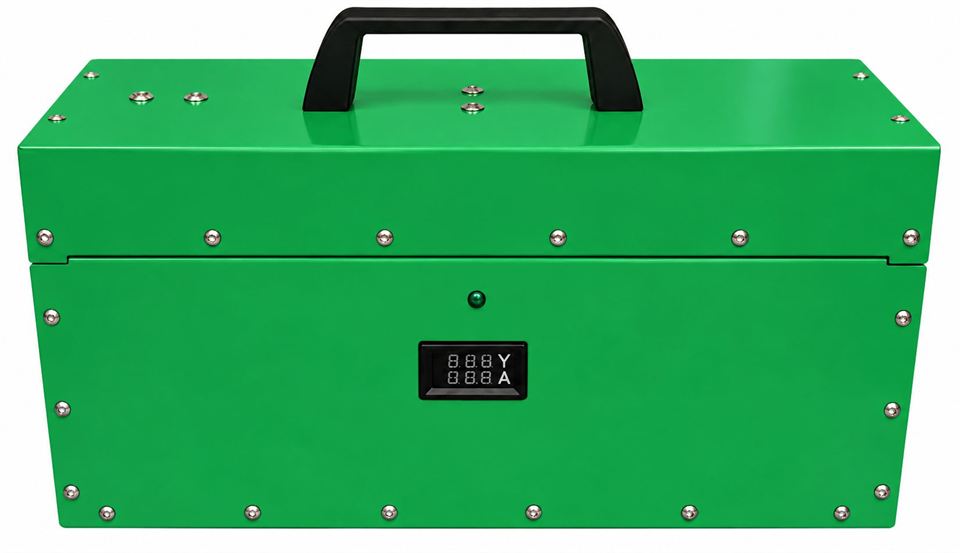

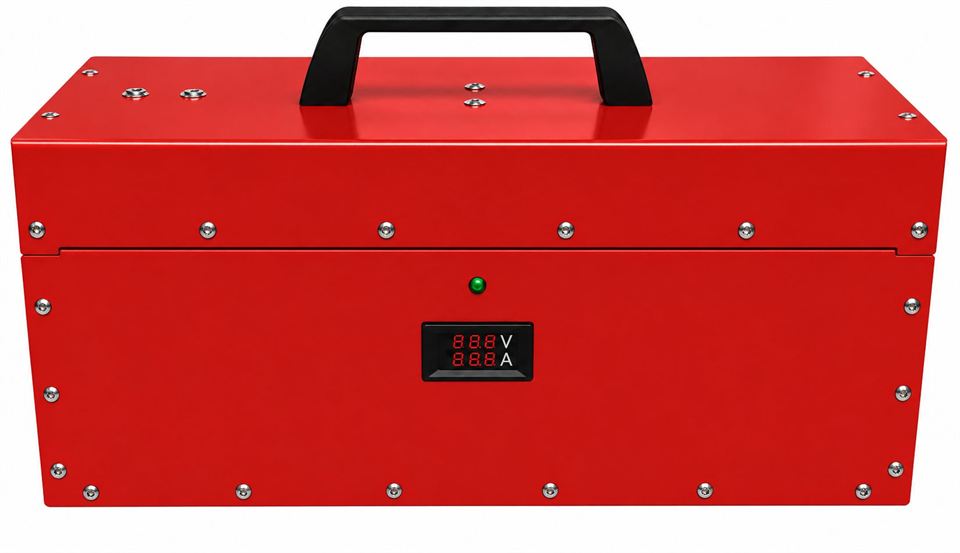

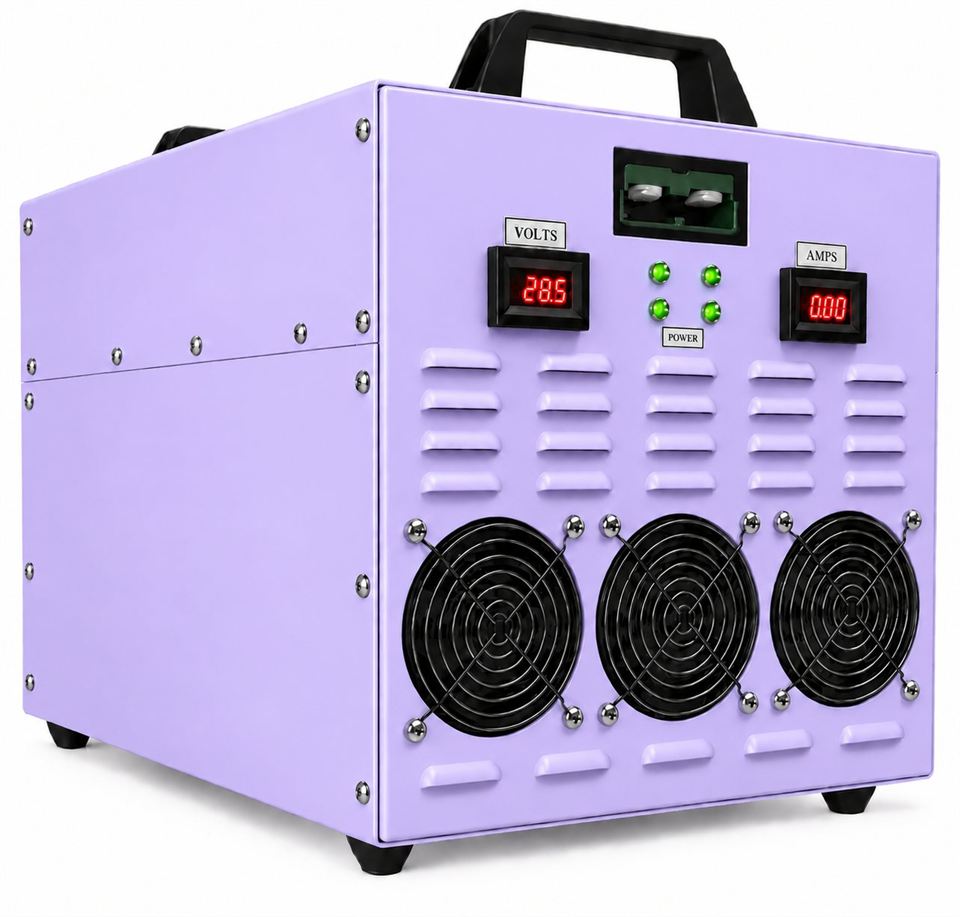

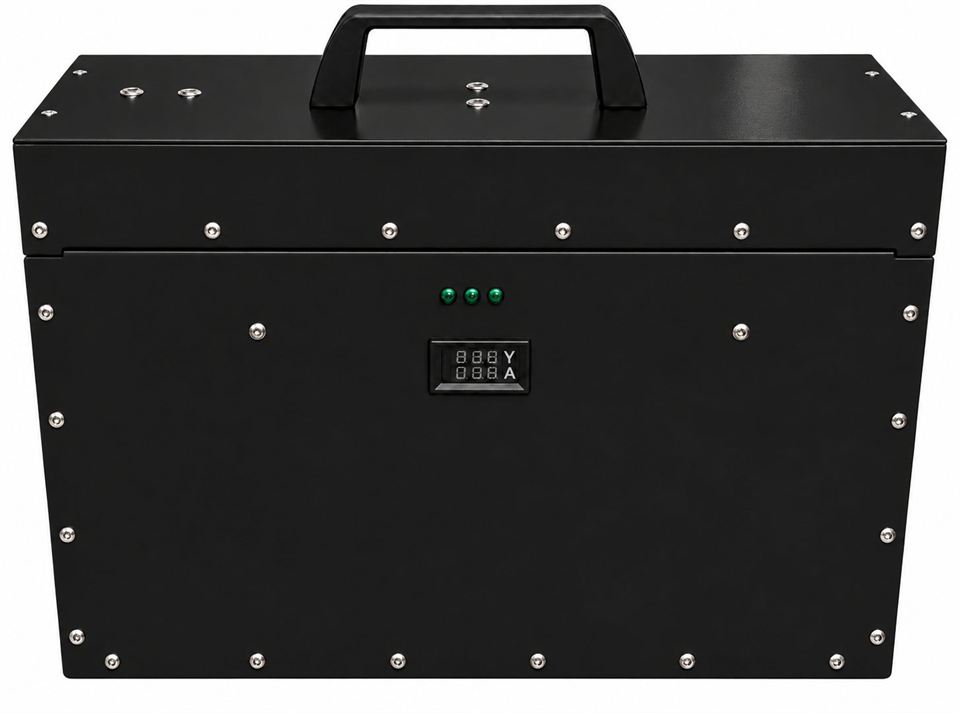

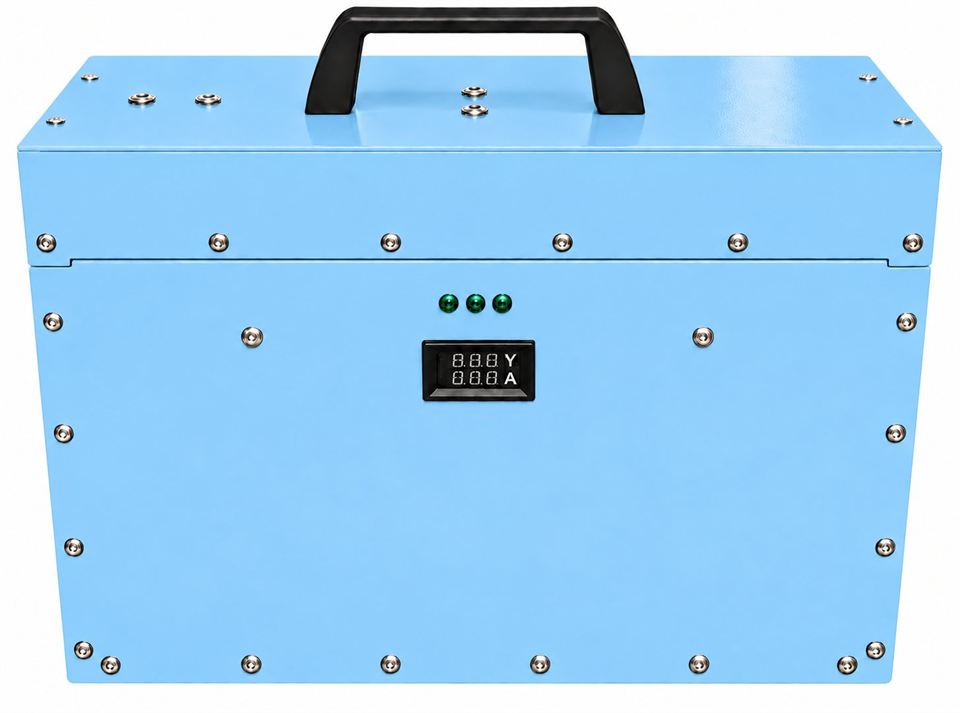

Stable Aviation ST50/ST100 continuous power unit Stable Aviation ST200/ST300 continuous power unit Stable Aviation ST400/ST600 continuous power unit
SpecificationST50ST100ST200ST300ST400ST600
Input voltage90–260VAC90–260VAC340–460VAC340–460VAC340–460VAC340–460VAC
Input current8A / 1ph16A / 1ph16A / 3ph16A / 3ph32A / 3ph32A / 3ph
Output voltage28.5VDC28.5VDC28.5VDC28.5VDC28.5VDC28.5VDC
Output current50A100A200A300A400A600A
Peak current55A110A220A330A440A660A
Dimensions (L-W-H)450-160-180 mm450-160-180 mm450-160-320 mm450-160-320 mm450-320-320 mm450-320-320 mm
Weight6 kg7 kg10 kg13 kg20 kg26 kg

Combination power for aircraft

Stable Aviation manufactures portable Combination Power Units, combining Starter Power Units and Continuous Power Units in one cabinet. They provide continuous power for avionics work, maintenance, diagnostics, and demonstrations, as well as being able to start the aircraft engine or the APU.

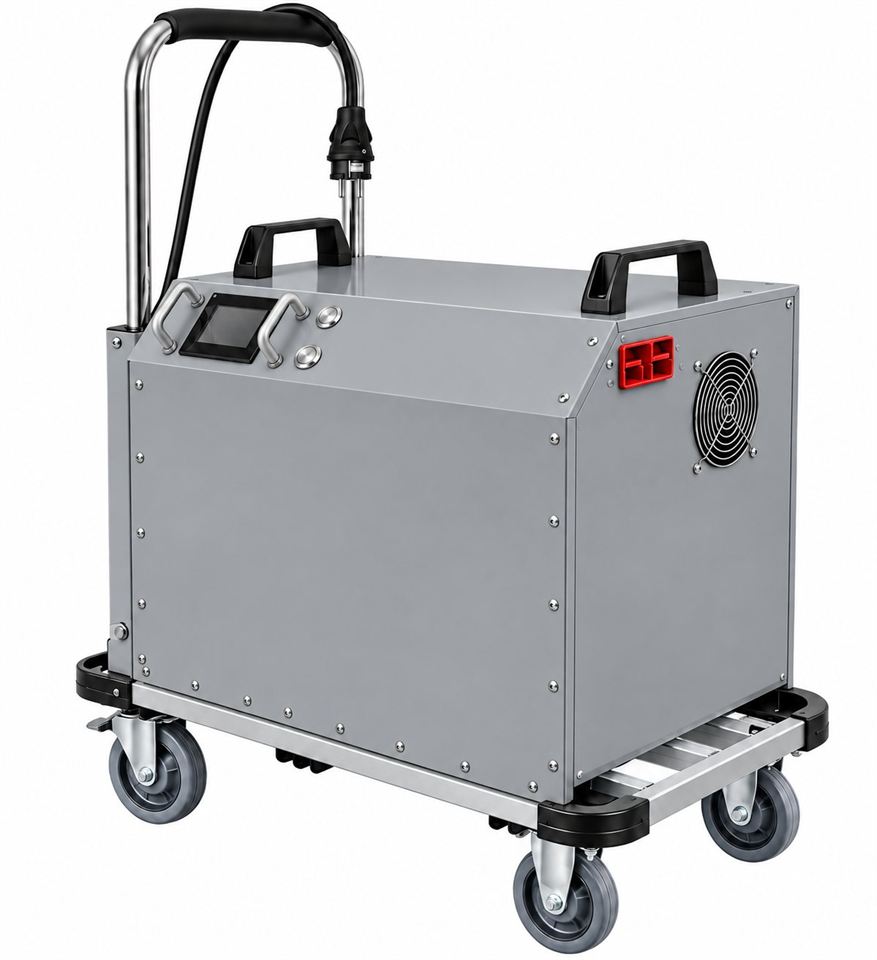

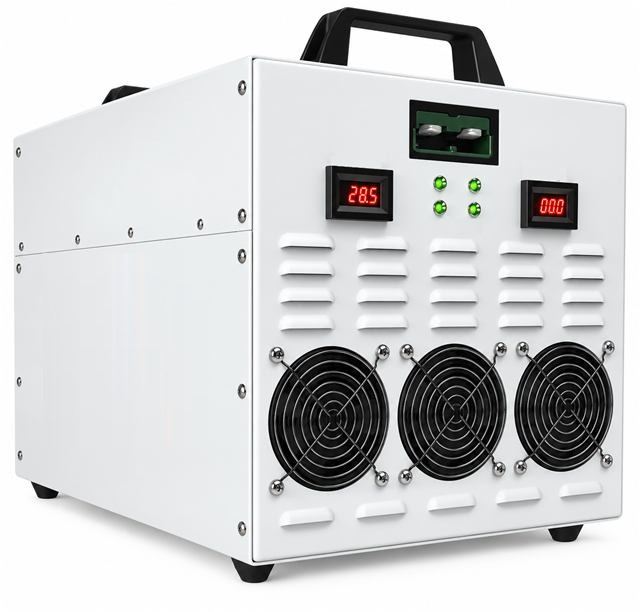

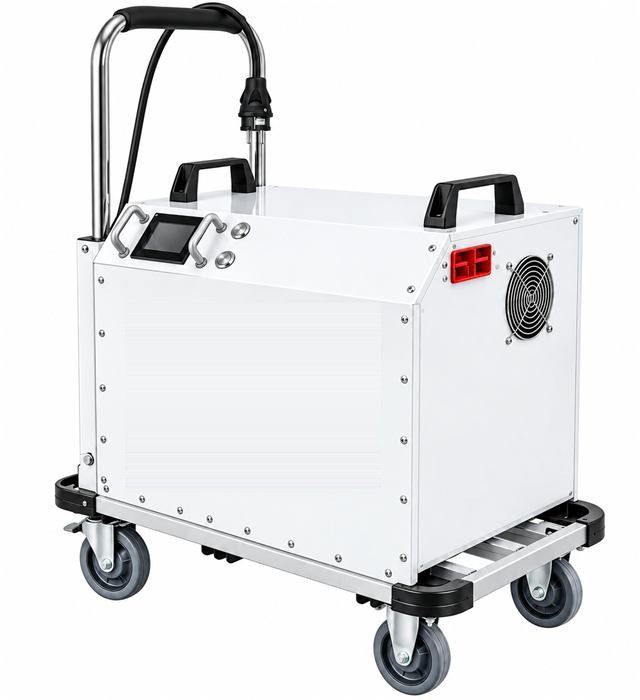

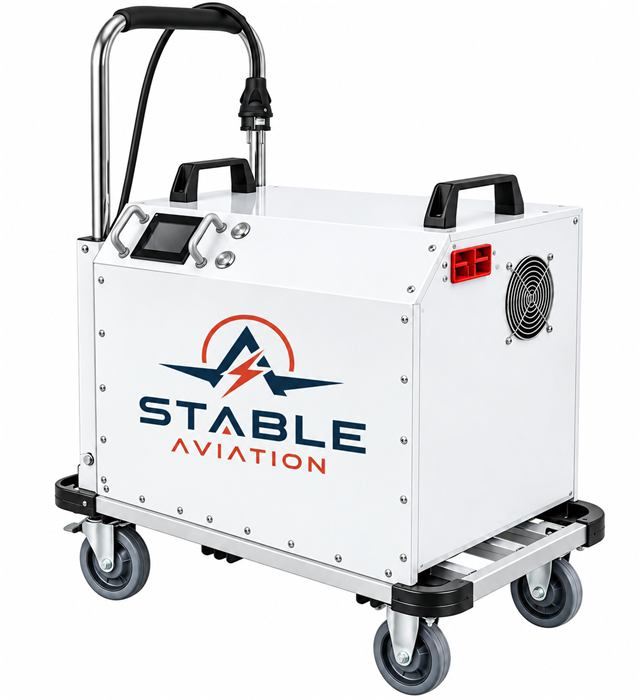

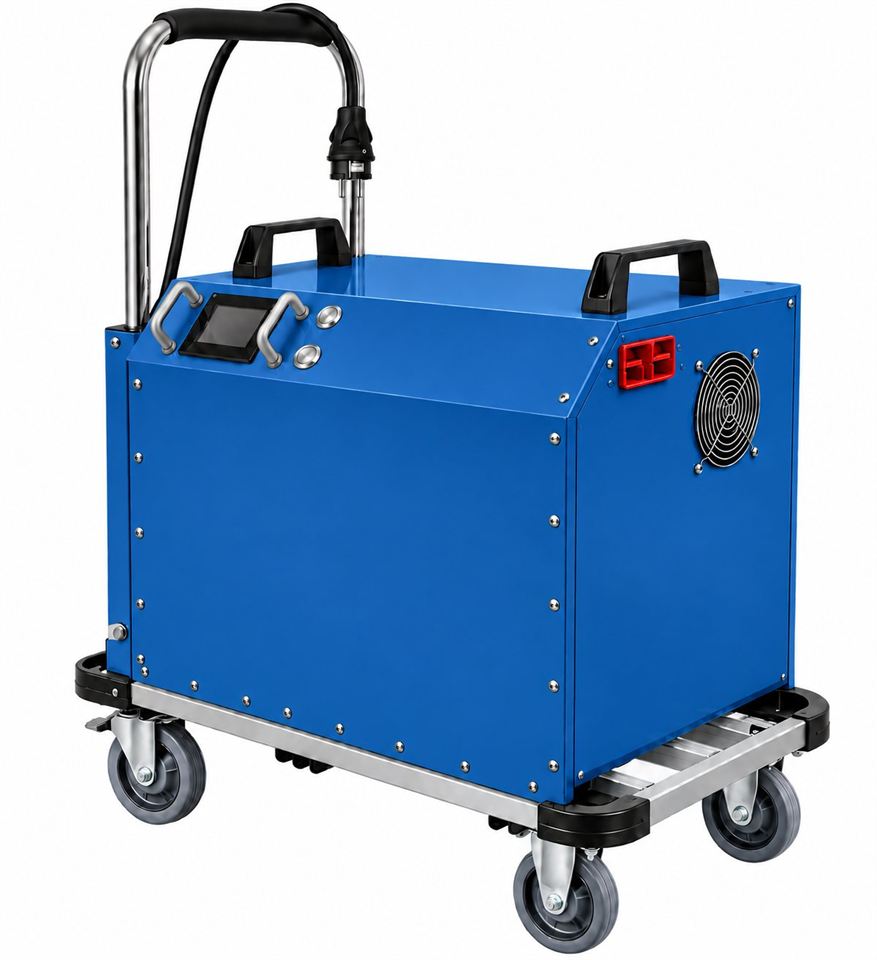

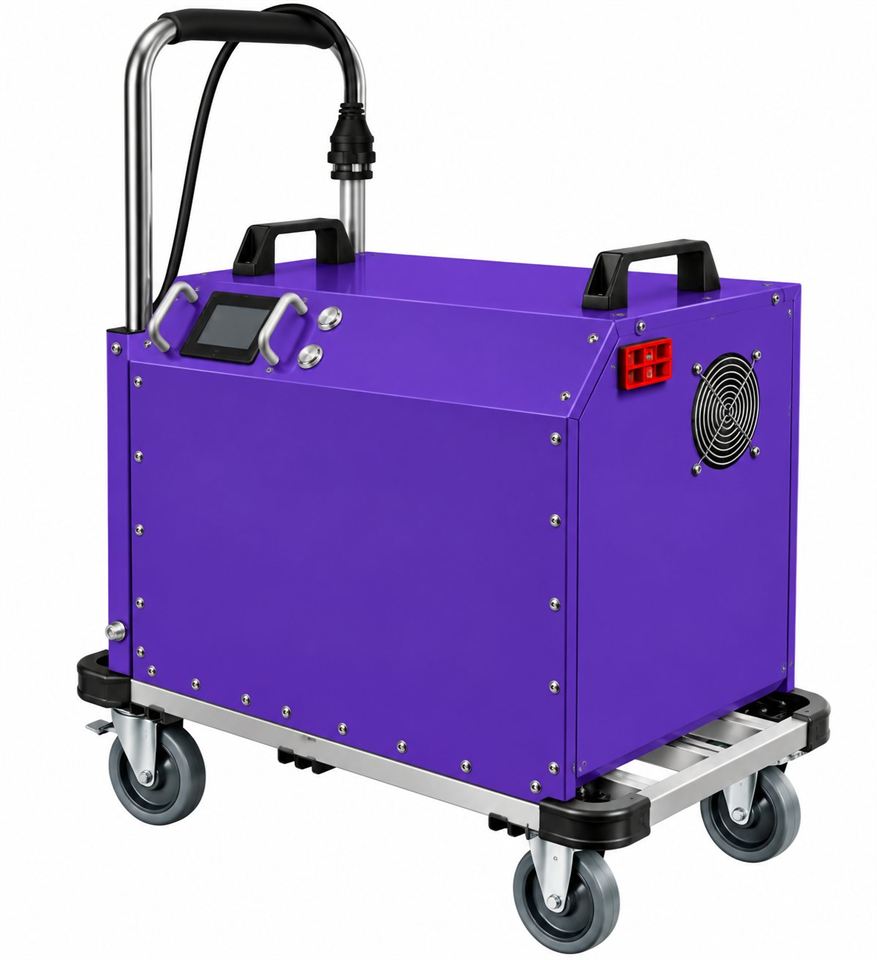

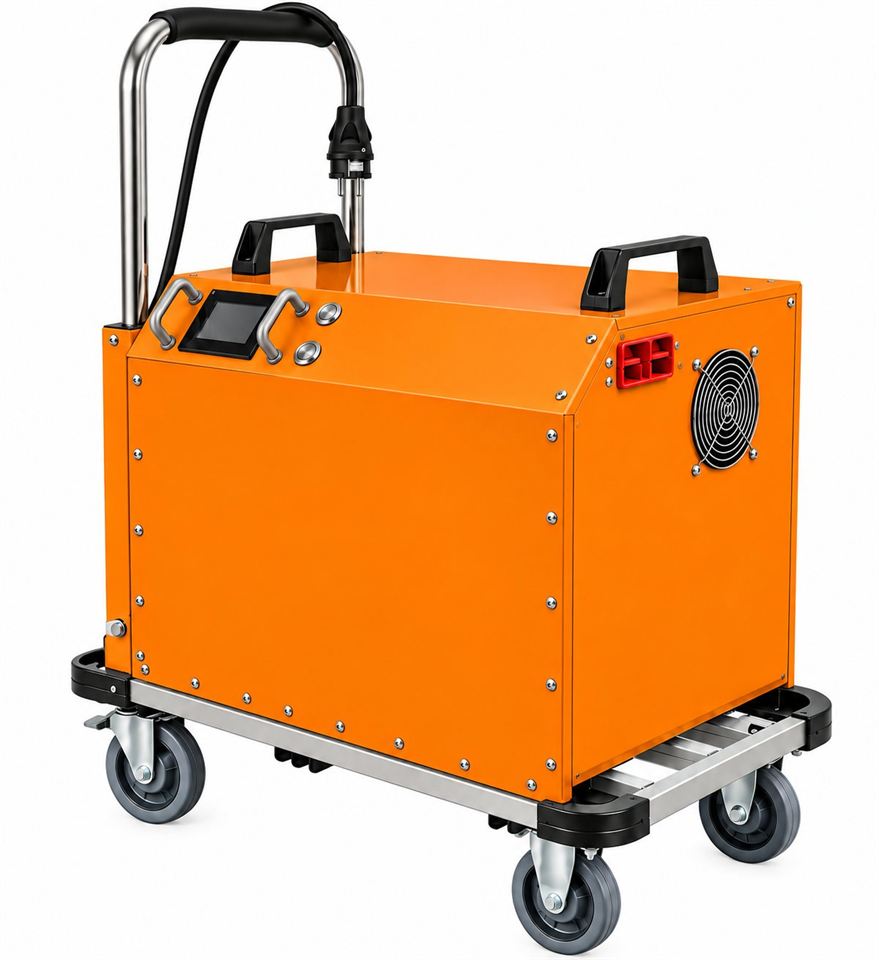

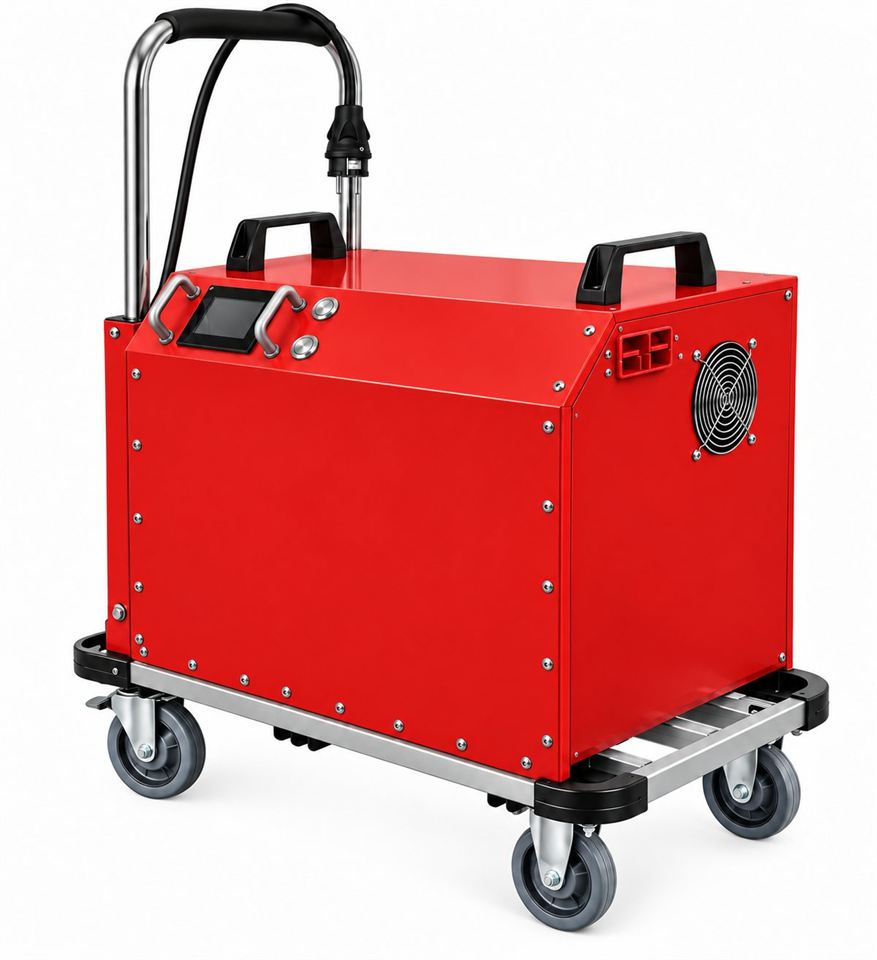

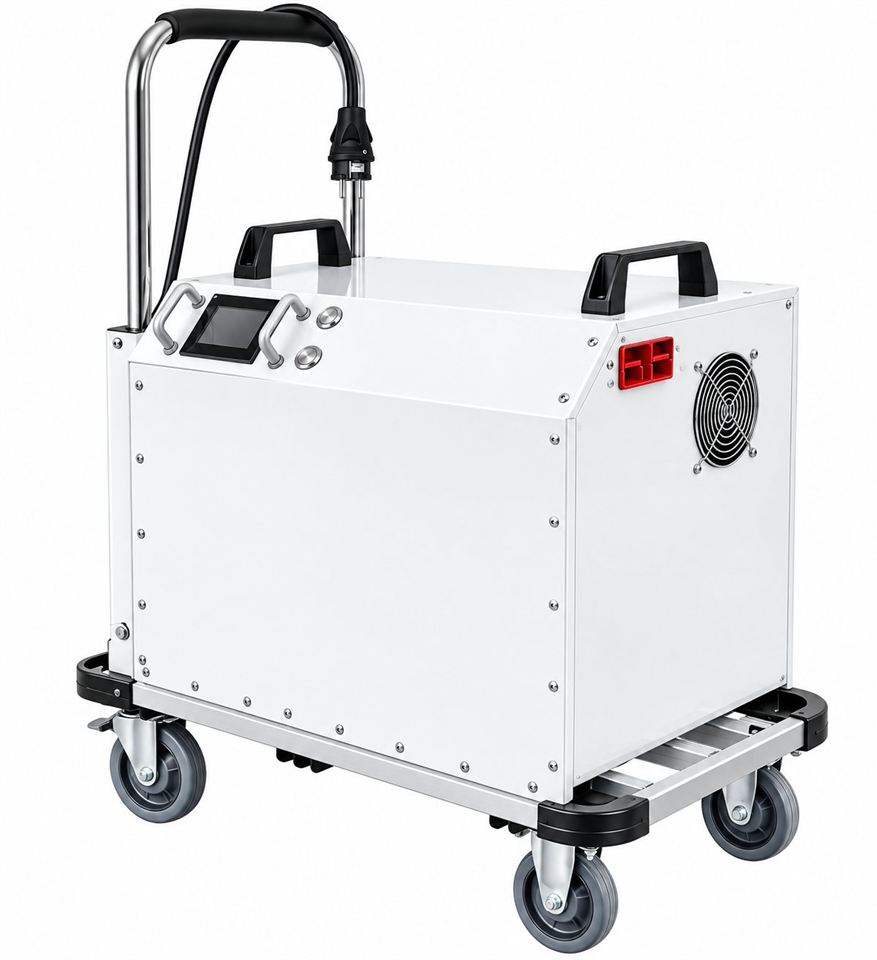

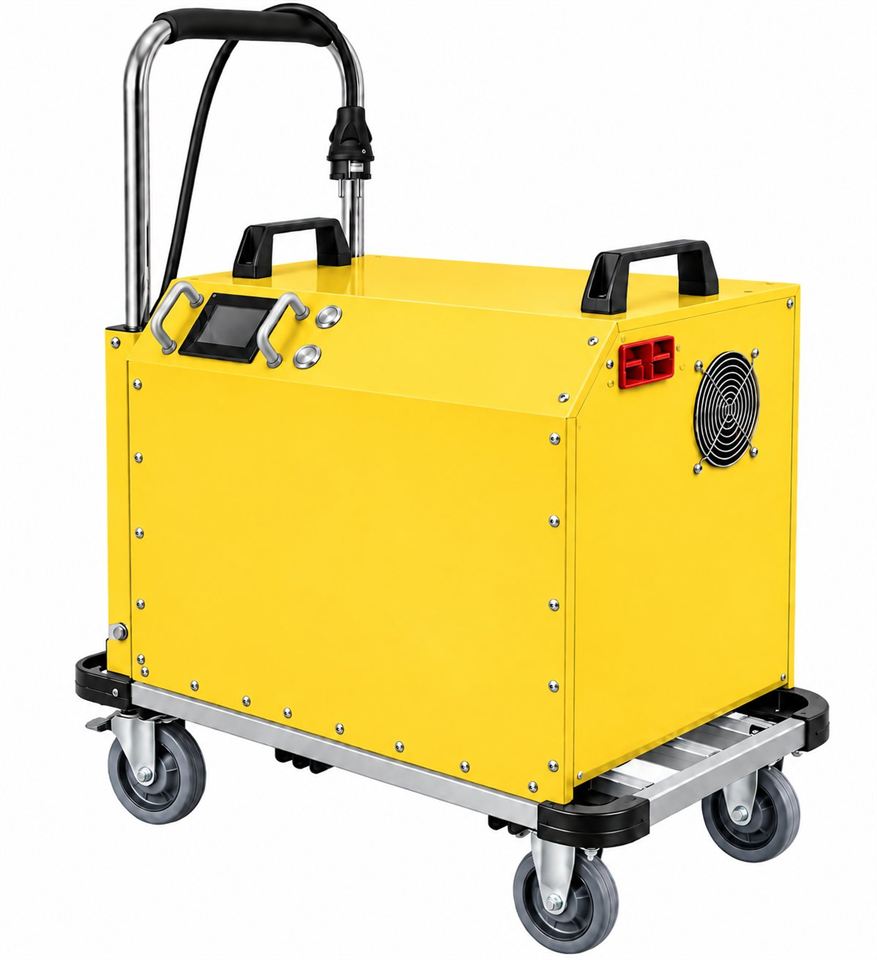

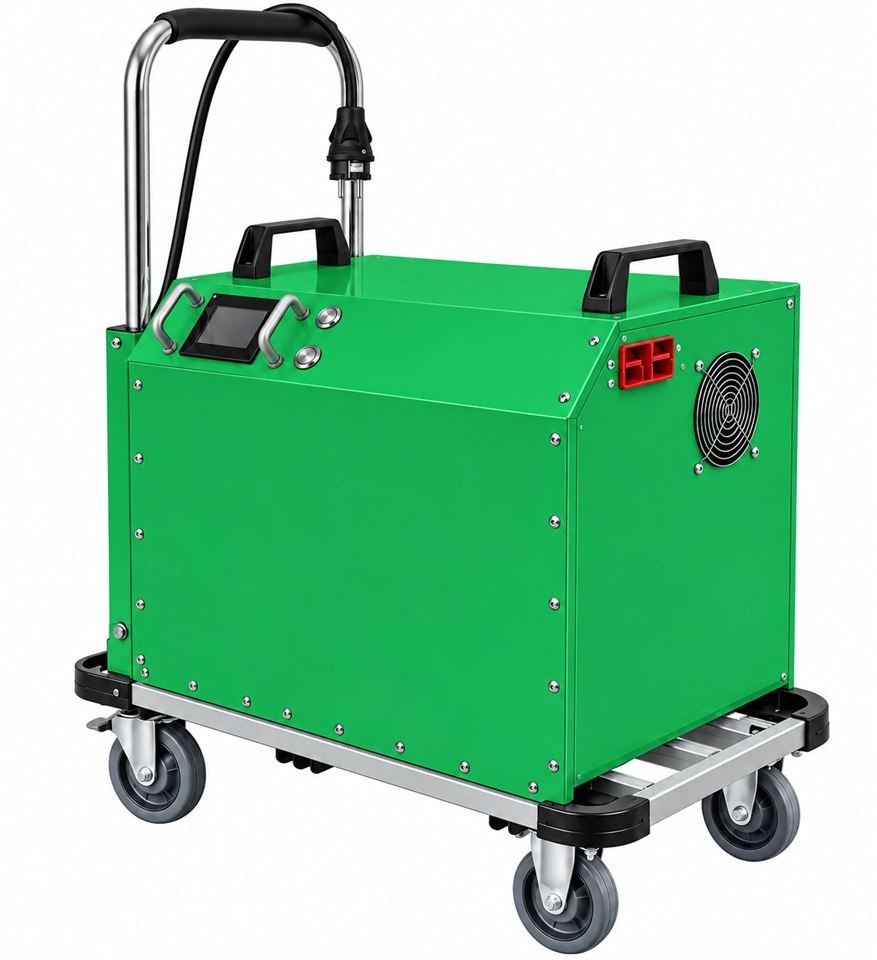

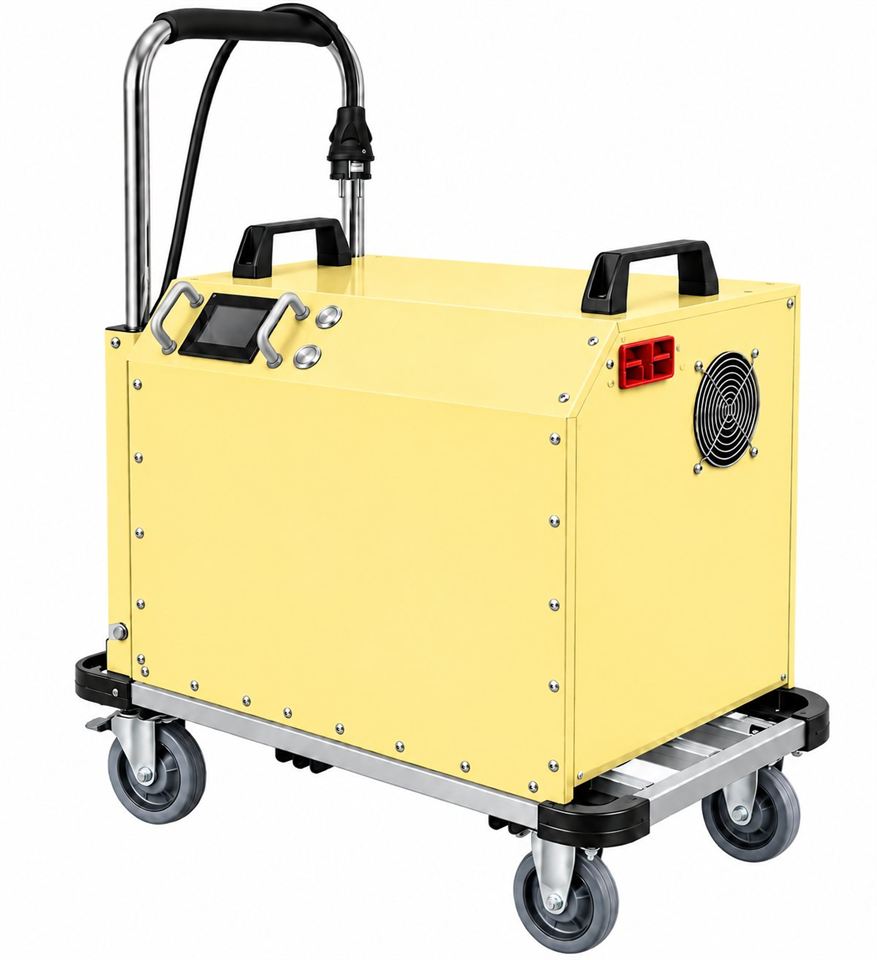

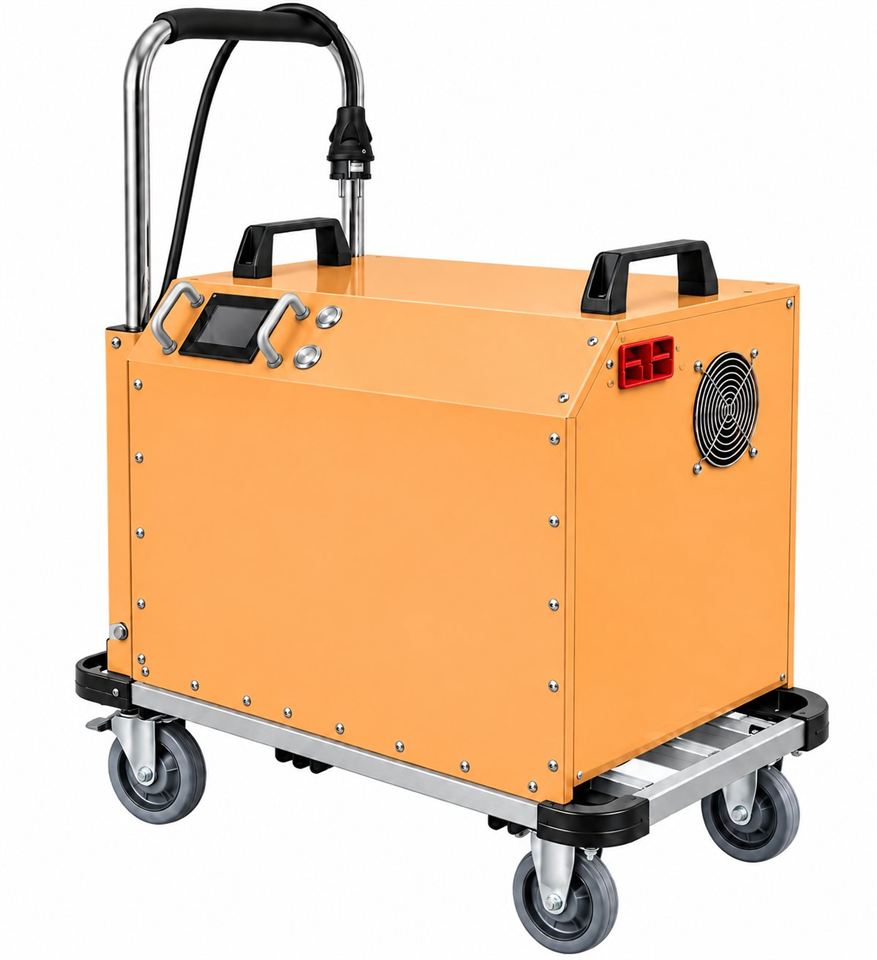

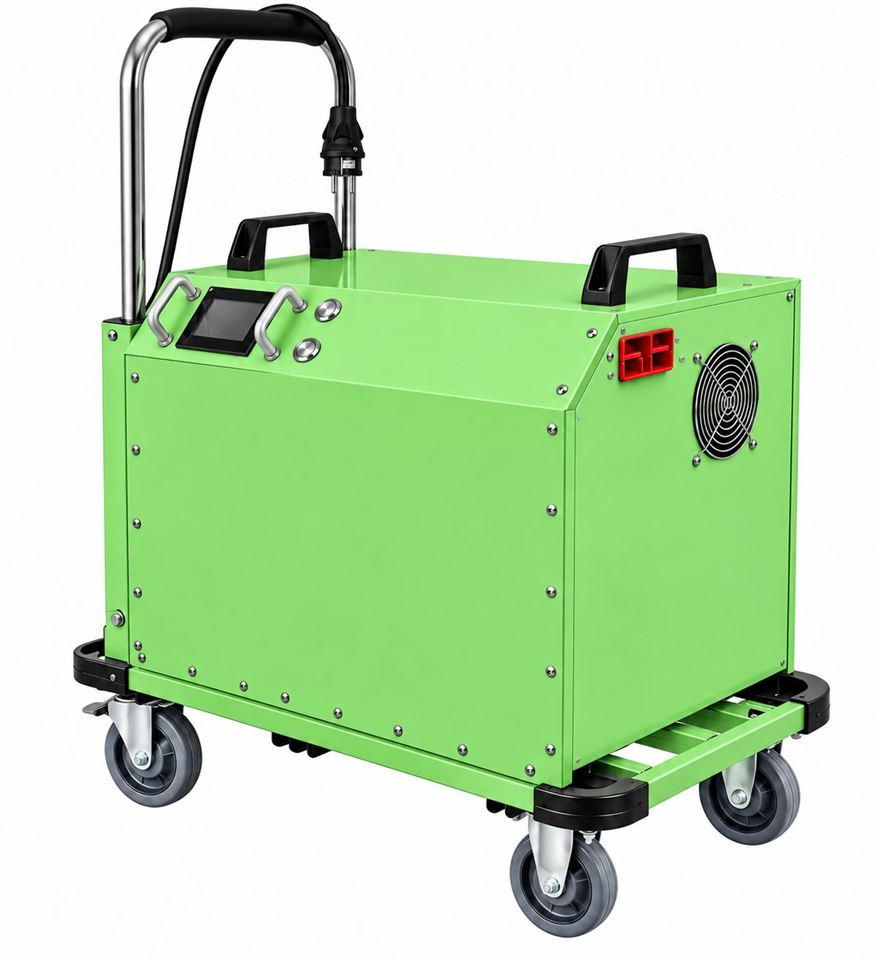

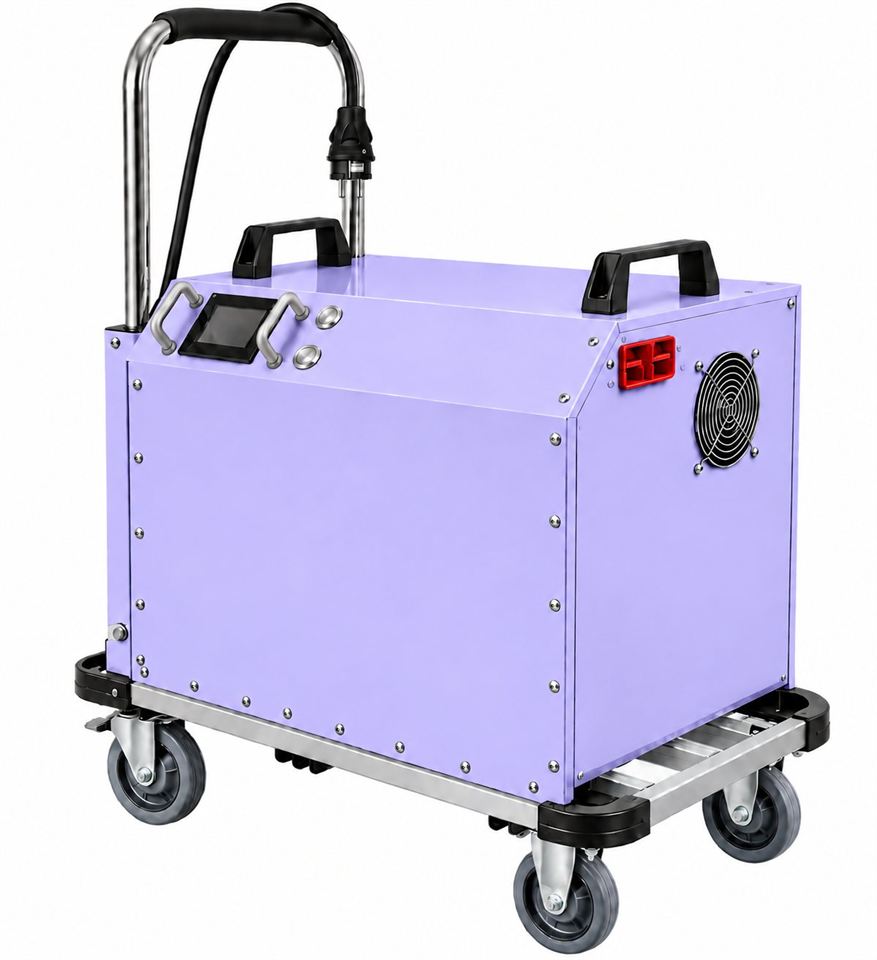

Stable Aviation combination power unit, starter and continuous power in one cabinet
SpecificationST50‑1000S/2000S/5000S 24/26ST100‑1000S/2000S/5000S 24/26ST200‑1000S/2000S/5000S 24/26ST300‑1000S/2000S/5000S 24/26ST400‑1000S/2000S/5000S 24/26
Input voltage90–260VAC90–260VAC340–460VAC340–460VAC340–460VAC
Input current8A / 1ph16A / 1ph16A / 3ph16A / 3ph32A / 3ph
Output voltage (continuous)28.5VDC28.5VDC28.5VDC28.5VDC28.5VDC
Continuous current50A100A200A300A400A
Starting voltage (24 / 26)25.8 / 27.9 VDC25.8 / 27.9 VDC25.8 / 27.9 VDC25.8 / 27.9 VDC25.8 / 27.9 VDC
Starting current (1000S/2000S/5000S)1,100 / 2,200 / 2,250 A1,100 / 2,200 / 2,250 A1,100 / 2,200 / 2,250 A1,100 / 2,200 / 2,250 A1,100 / 2,200 / 2,250 A
Battery capacity45/90/130 A/Hr45/90/130 A/Hr45/90/130 A/Hr45/90/130 A/Hr45/90/130 A/Hr
Dimensions (L-W-H)550-400-450 mm550-400-450 mm550-400-450 mm550-400-450 mm550-400-450 mm
Weight (24V)40/65/100 kg42/67/102 kg45/70/105 kg48/73/108 kg42/77/112 kg
Weight (26V)42/70/108 kg44/69/104 kg47/72/107 kg50/75/110 kg54/79/114 kg

eGPU aircraft ground power units

Stable Aviation manufactures mobile eGPU units — a state-of-the-art design that supplies true 28.5VDC output with no input mains applied. Each unit provides 28.5VDC continuous power for avionics work and start power for the aircraft or APU, operating in either AC Mode (power from the input mains supply) or DC Mode (power from the internal batteries); all batteries charge automatically when connected to input power. Units are fitted on a trolley with 6 rubber mounts to absorb vibration, and fitted with a brake.

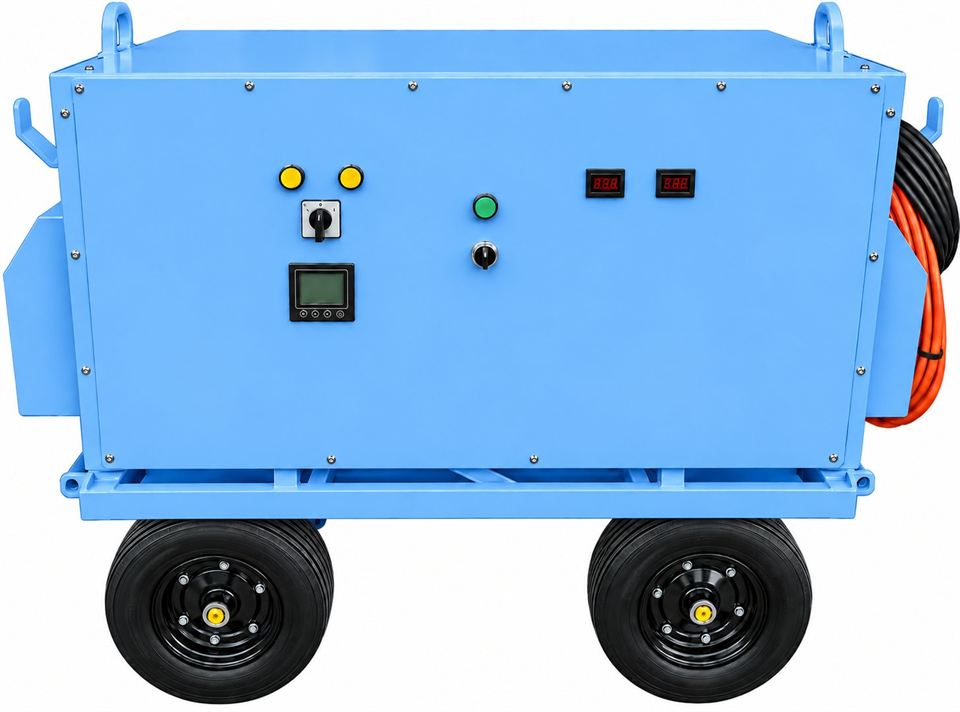

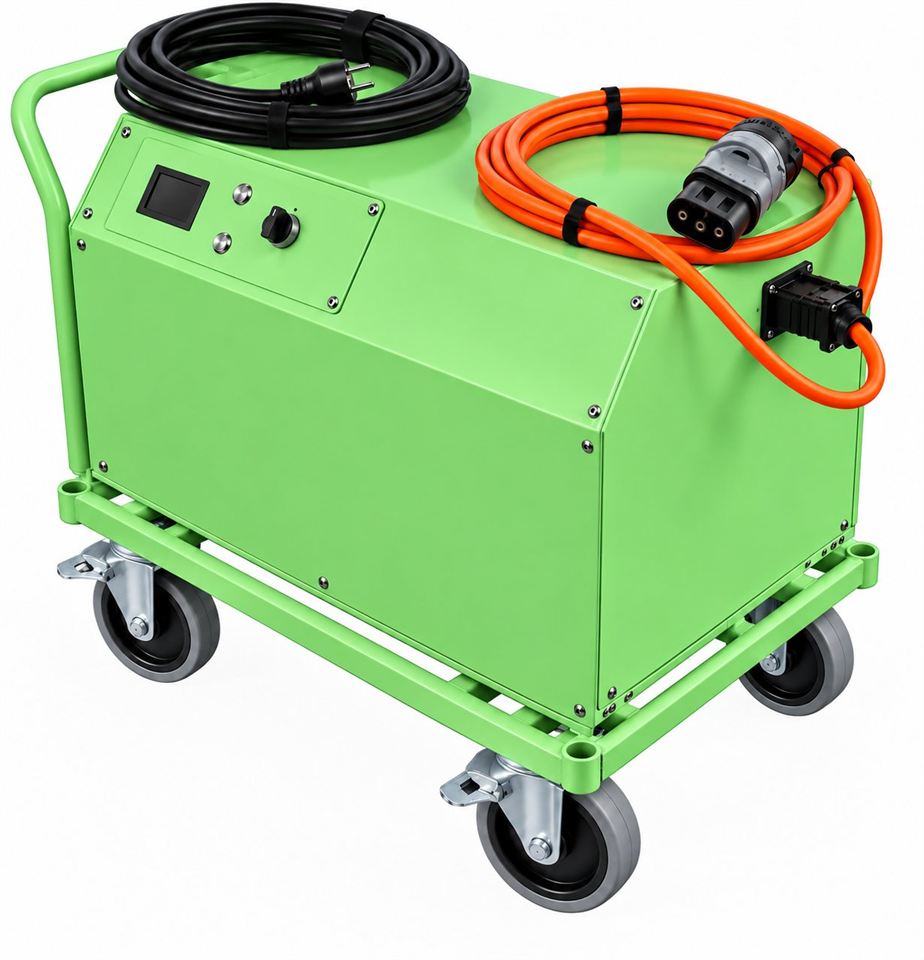

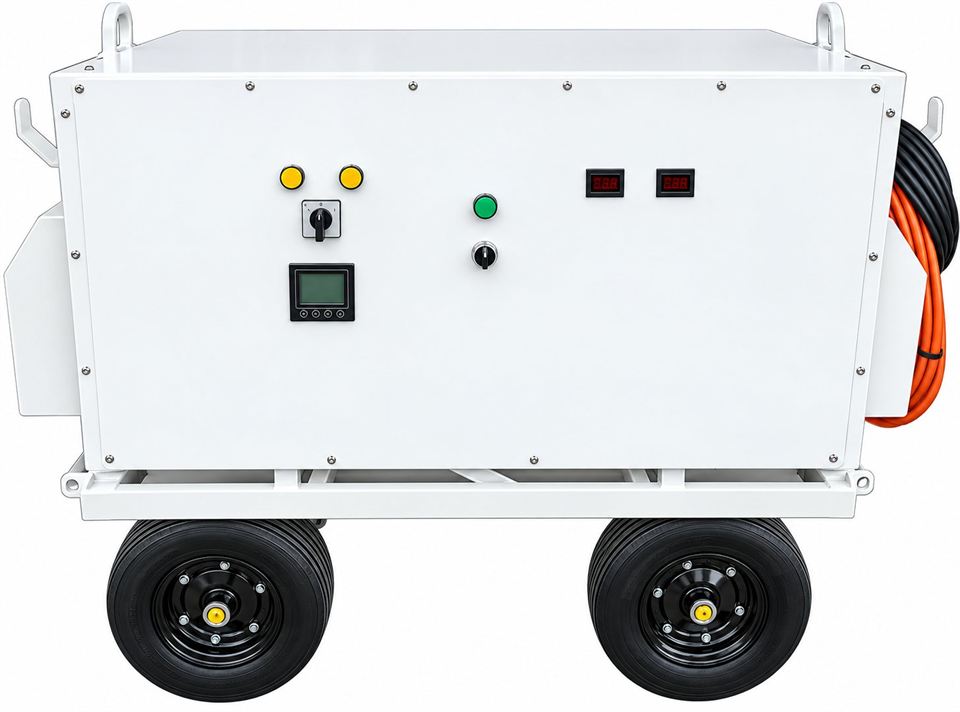

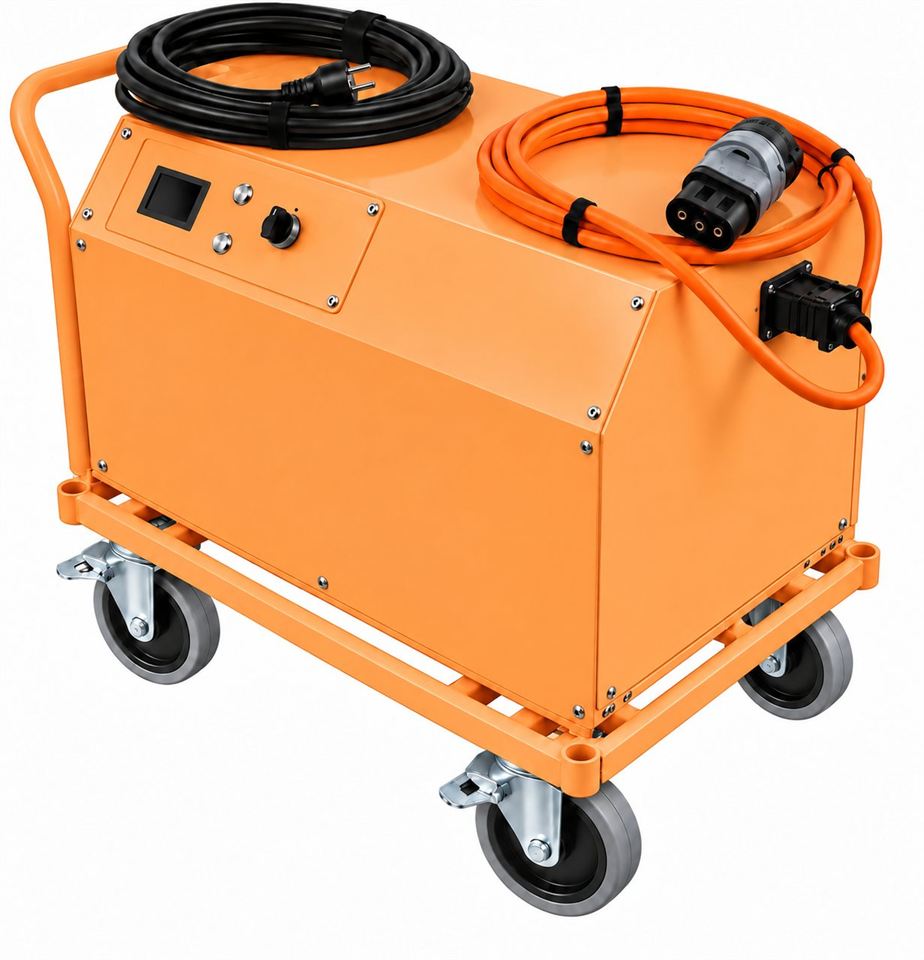

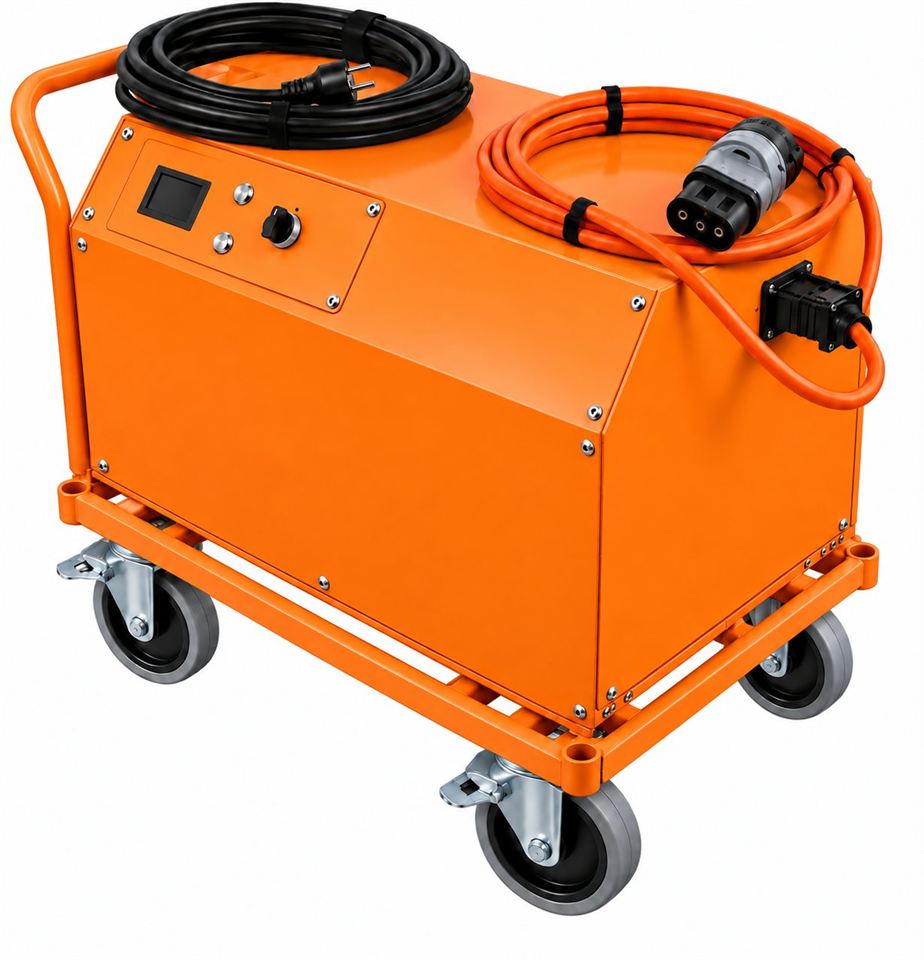

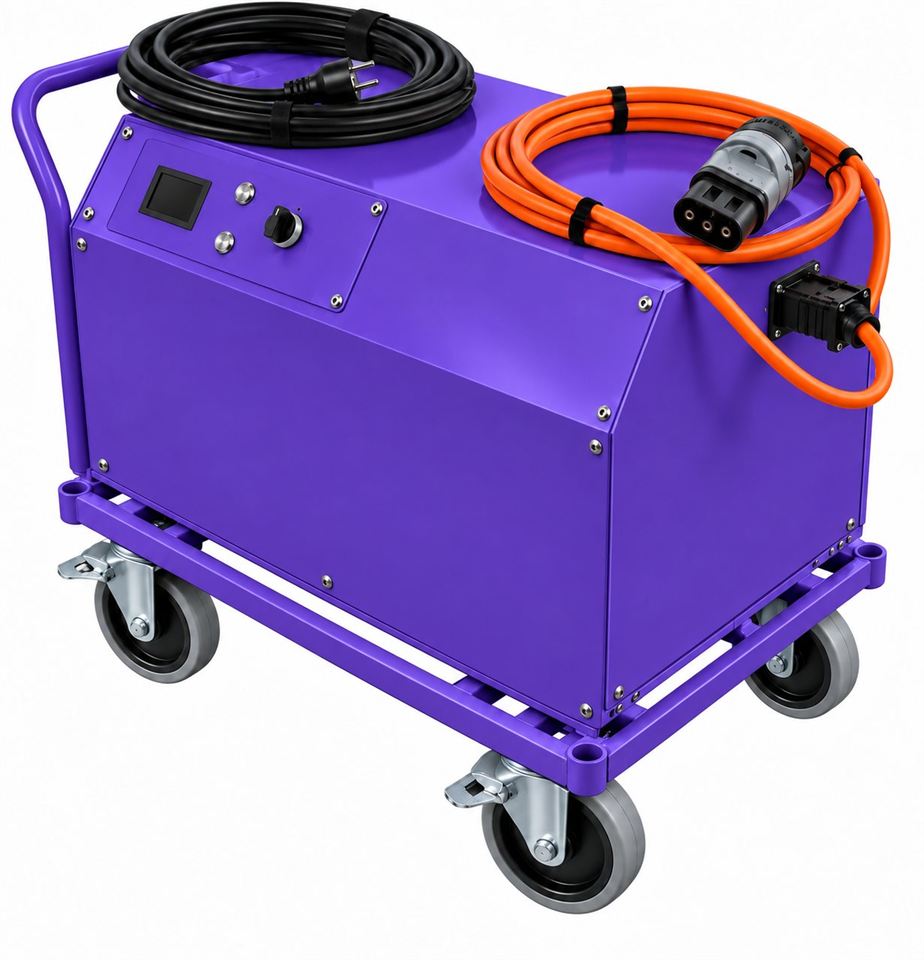

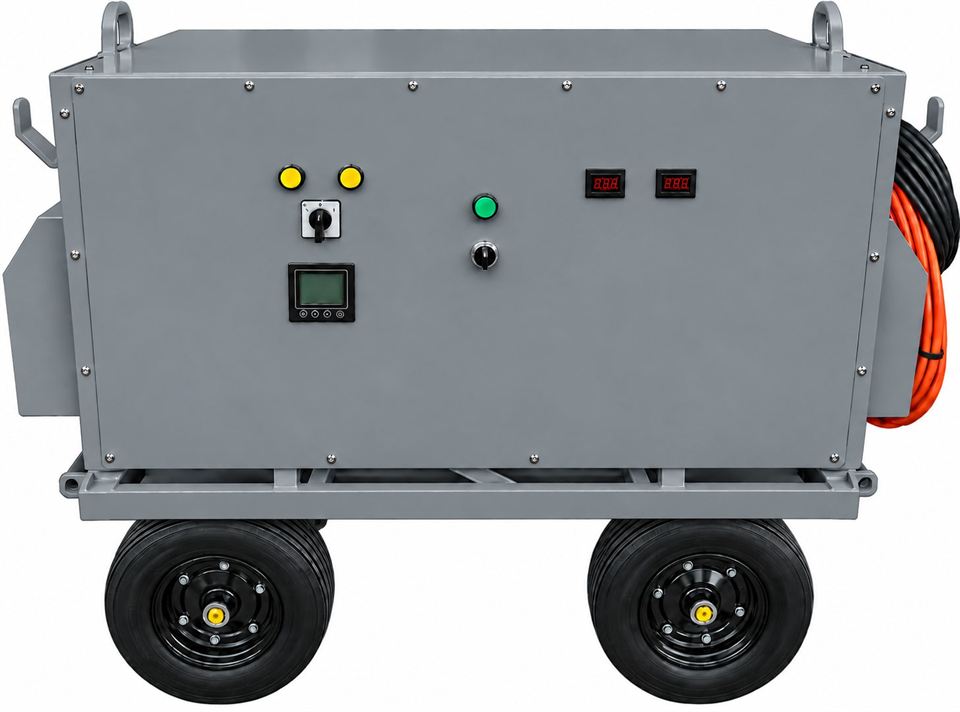

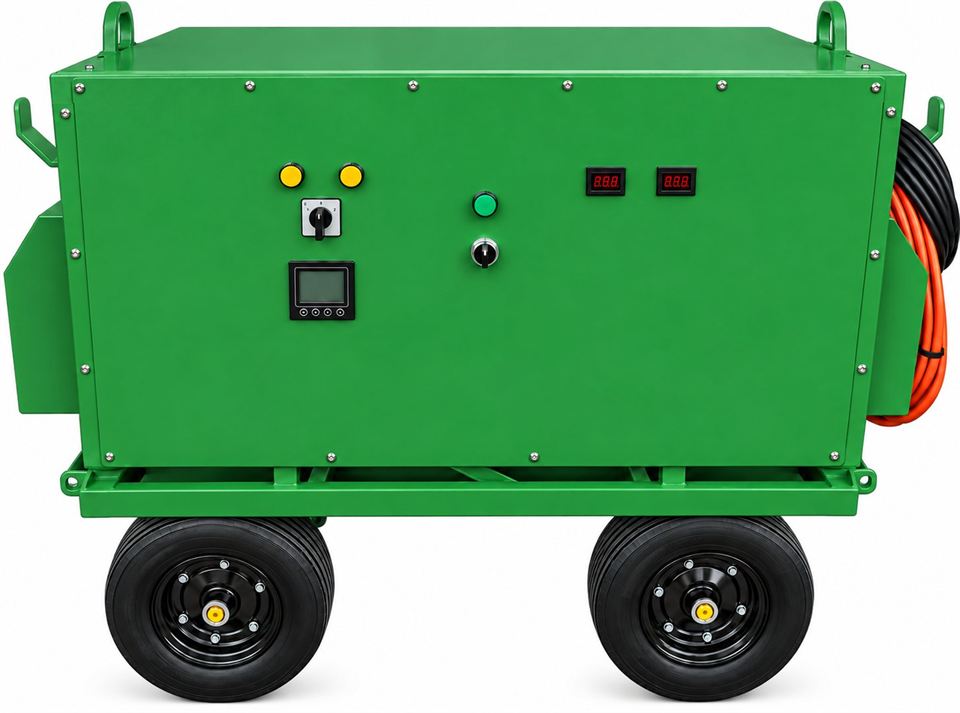

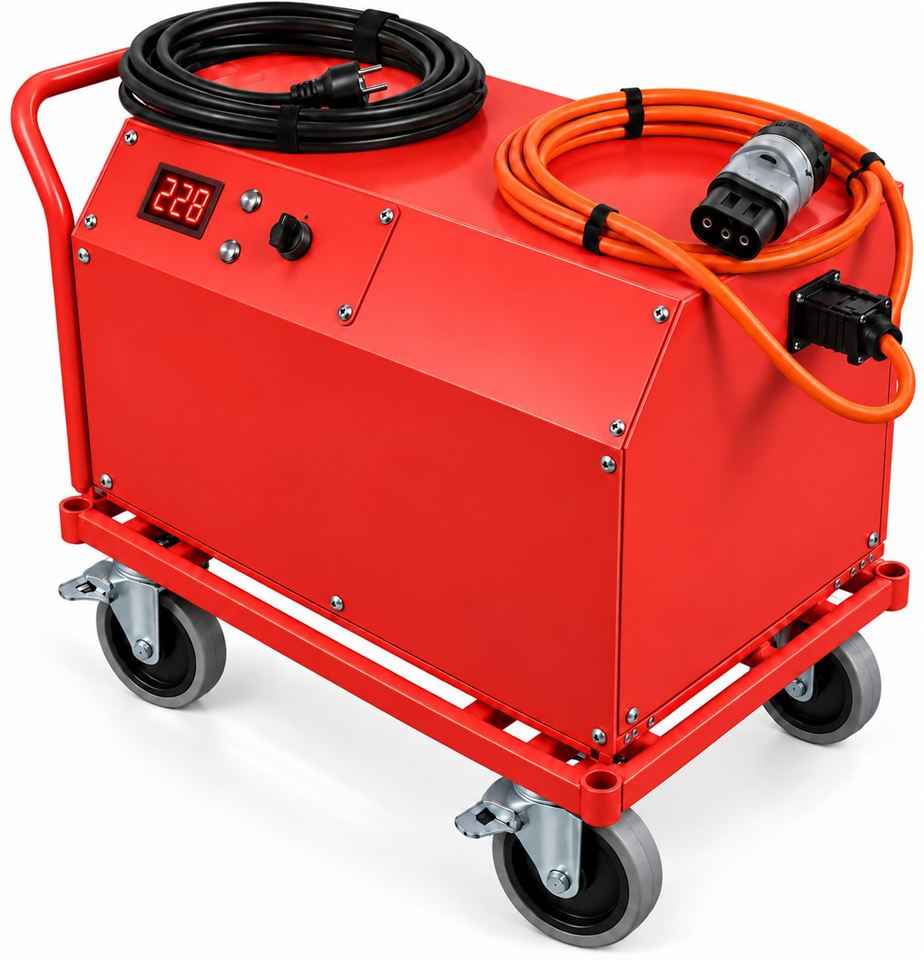

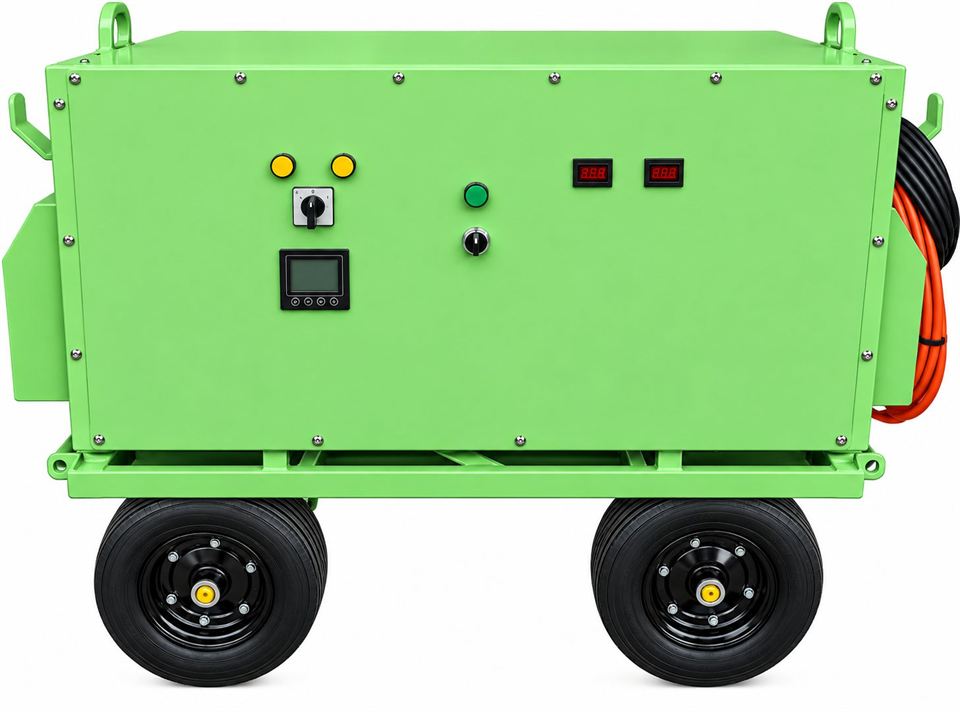

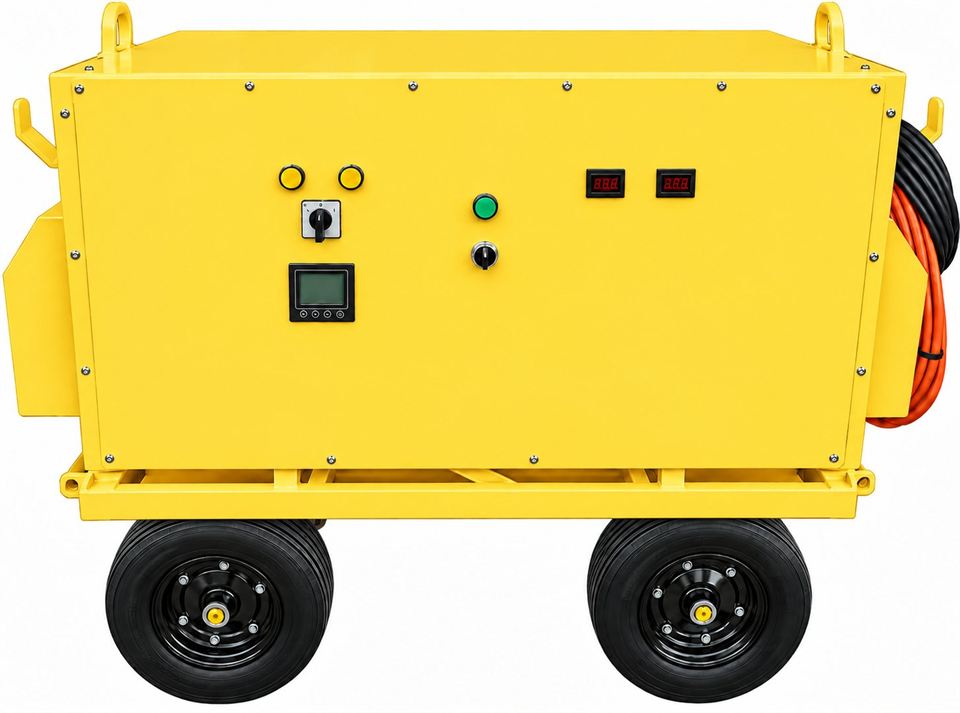

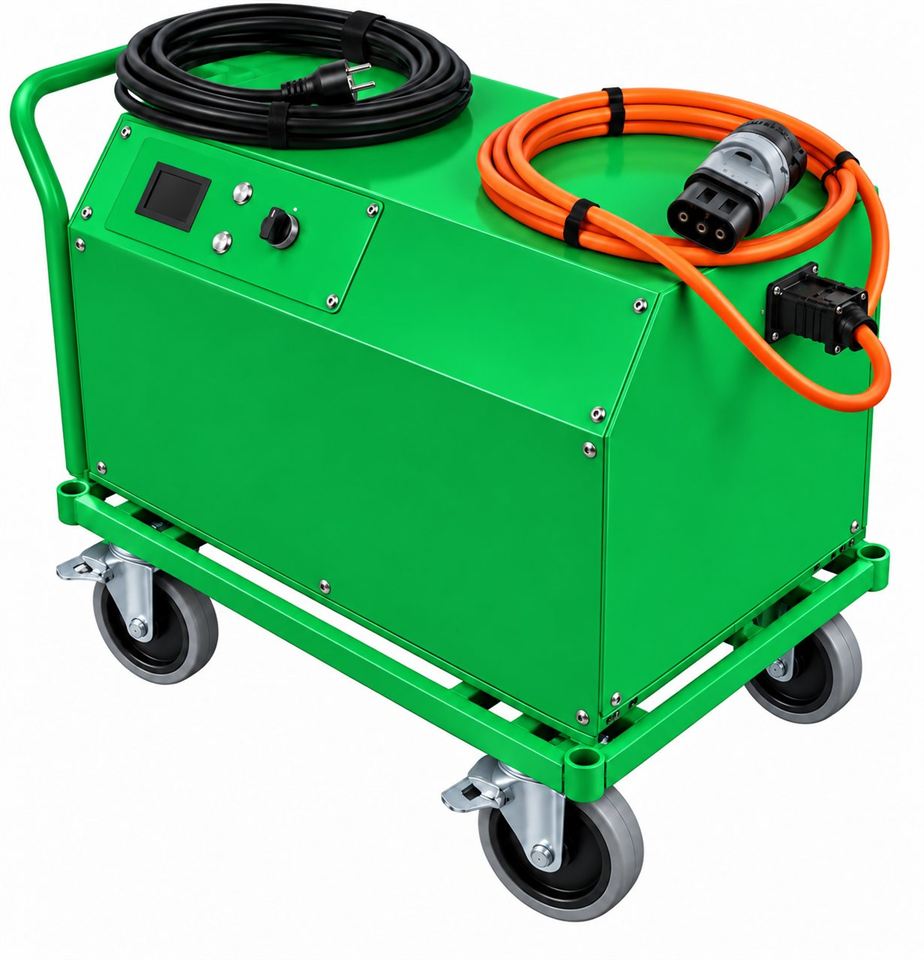

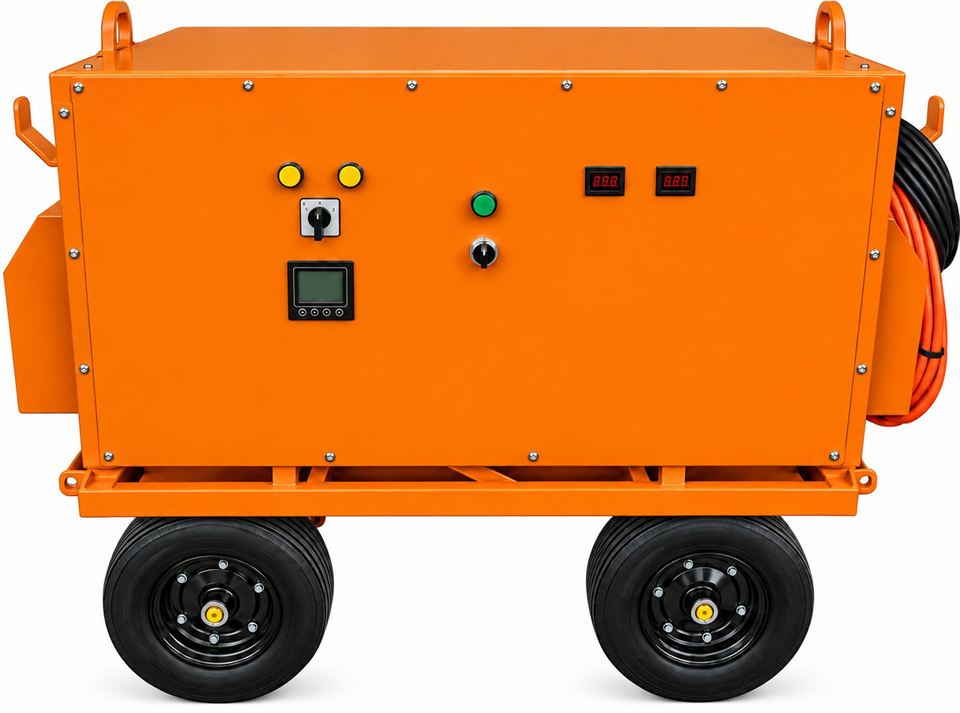

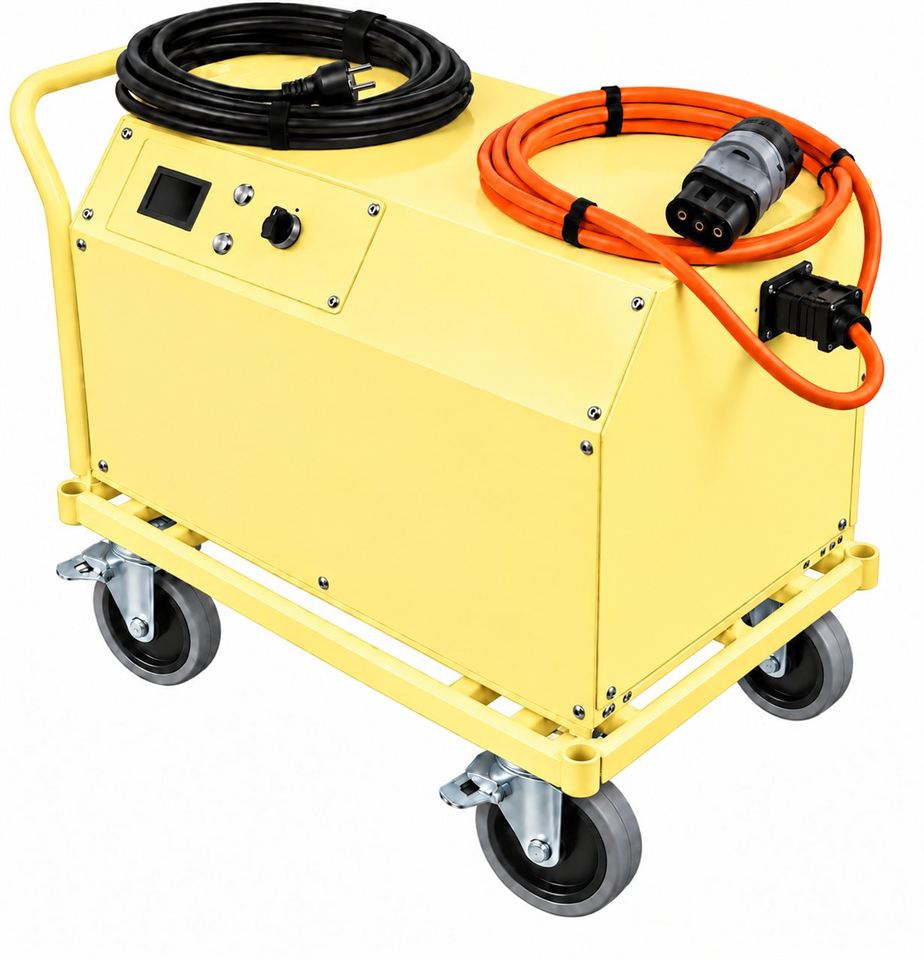

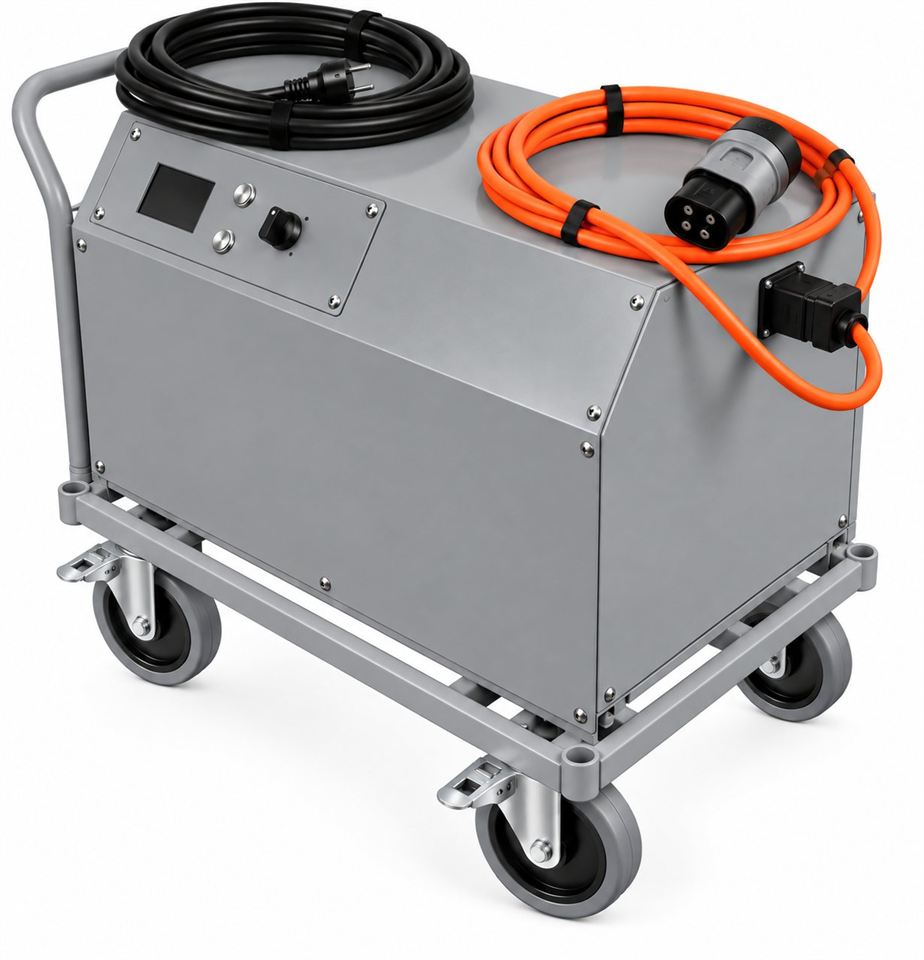

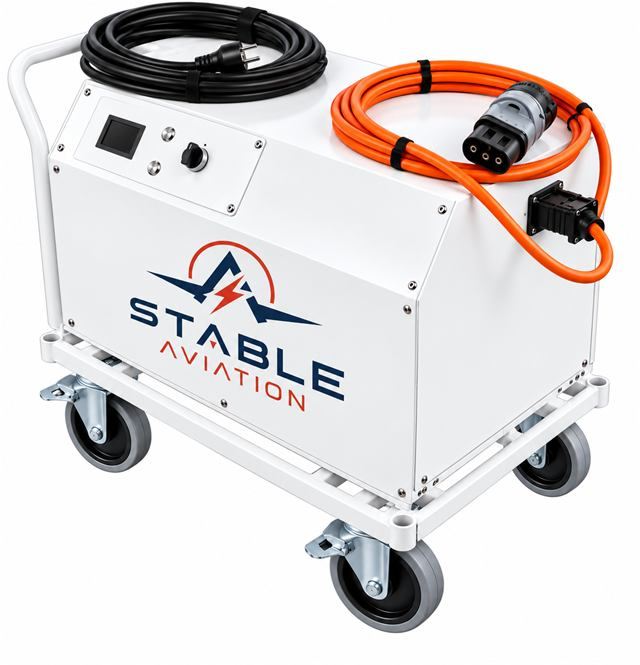

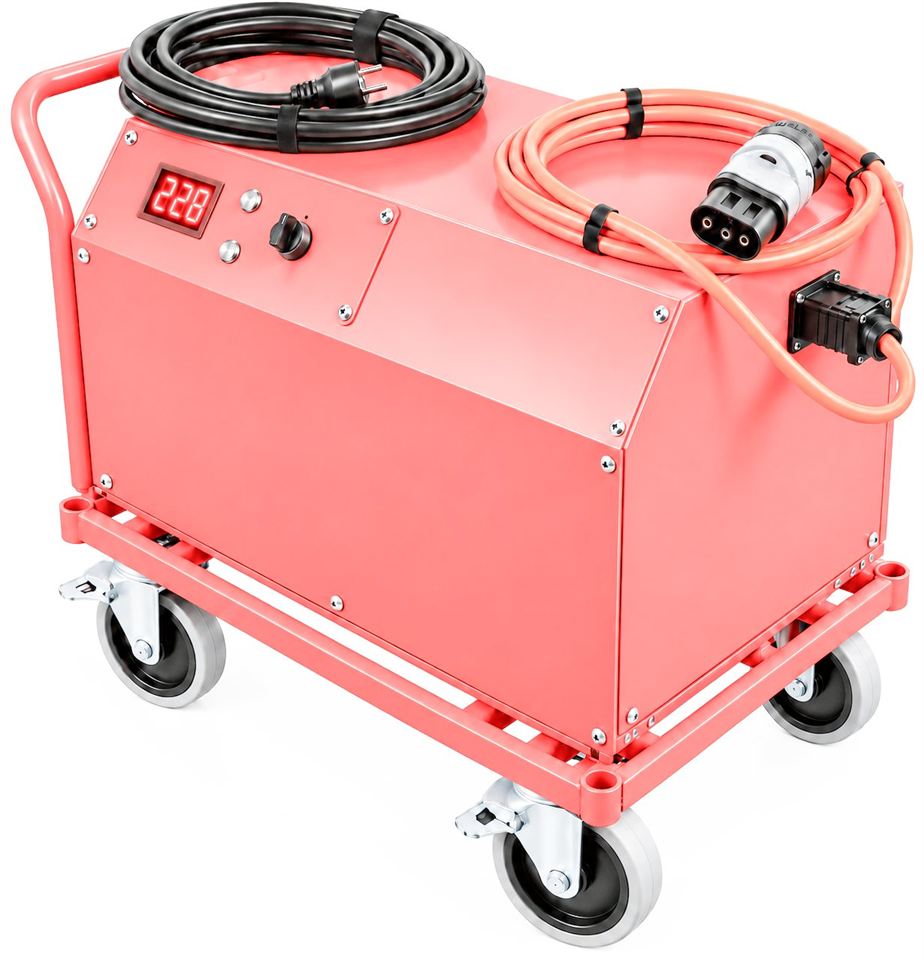

Stable Aviation eGPU mobile ground power unit, small model Stable Aviation eGPU mobile ground power unit, large model
SpecificationSTeGPU-100-1000S-25STeGPU-200-1000S-25STeGPU-200-5000S-50STeGPU-400-5000S-85STeGPU-400-5000S-125
Input voltage90–260VAC90–260VAC / 340–460VAC90–260VAC / 340–460VAC340–460VAC340–460VAC
Input current16A / 1ph32A / 1ph, 16A / 3ph32A / 1ph, 16A / 3ph32A / 3ph32A / 3ph
Output voltage (continuous)28.5VDC28.5VDC28.5VDC28.5VDC28.5VDC
Autonomy / continuous current50A 4Hrs, 100A 2Hrs100A 2Hrs, 200A 1Hr100A 4Hrs, 200A 2Hrs100A 6Hrs, 200A 3Hrs, 400A 1.5Hrs100A 8Hrs, 200A 4Hrs, 400A 2Hrs
Starting voltage25.8VDC25.8VDC25.8VDC25.8VDC25.8VDC
Starting current1,100A1,100A2,250A2,250A2,250A
Dimensions (L-W-H)1000-600-800 mm1000-600-800 mm1200-800-450 mm1200-800-1100 mm1200-800-1100 mm
Weight200 kg205 kg300 kg350 kg400 kg

Aircraft TRU power units

Stable Aviation manufactures mobile TRUs (Transformer Rectifier Units) — the safest and most reliable solution for continuous, smooth power. Designed with power-factor correction to guarantee a near-perfect sinusoidal input current from 25% to 150% load and low THDi (<1.5%), and 8V remote sensing so the output stays stable even under heavy loads. These TRUs are in operation around the world and are praised by operators and engineers for their easy operation, efficiency, safety and flexibility.

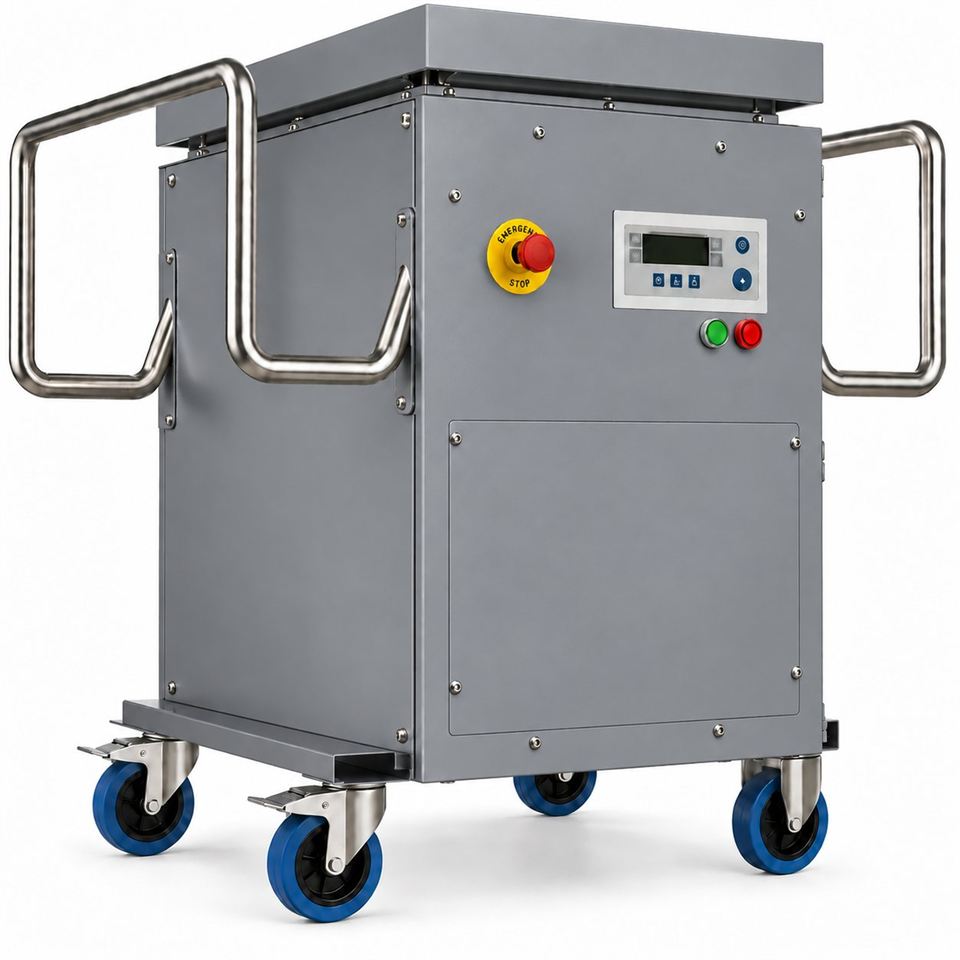

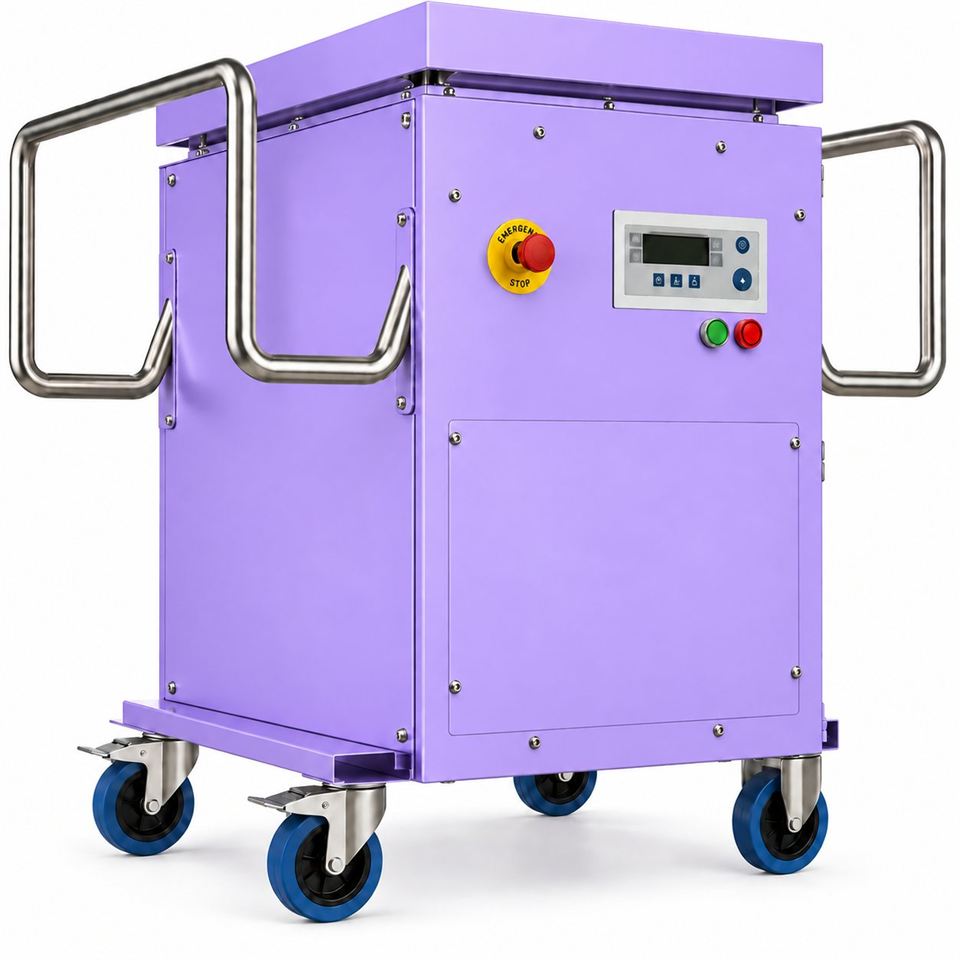

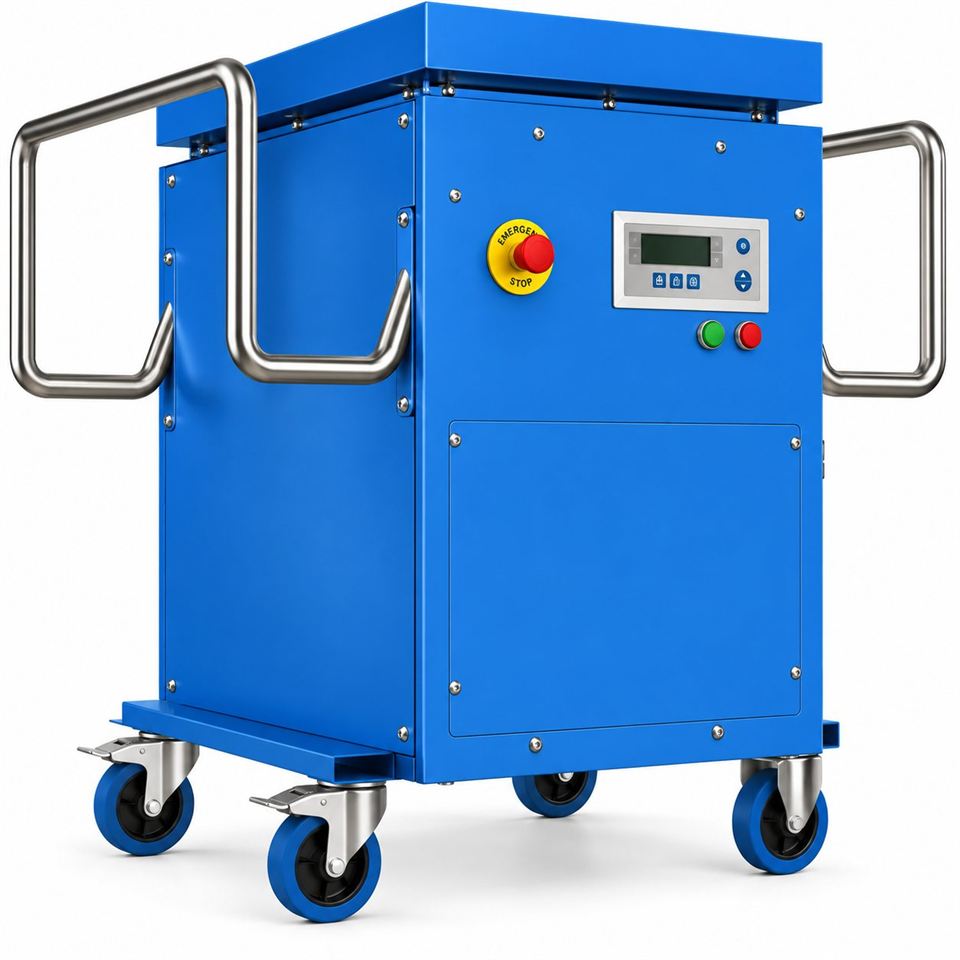

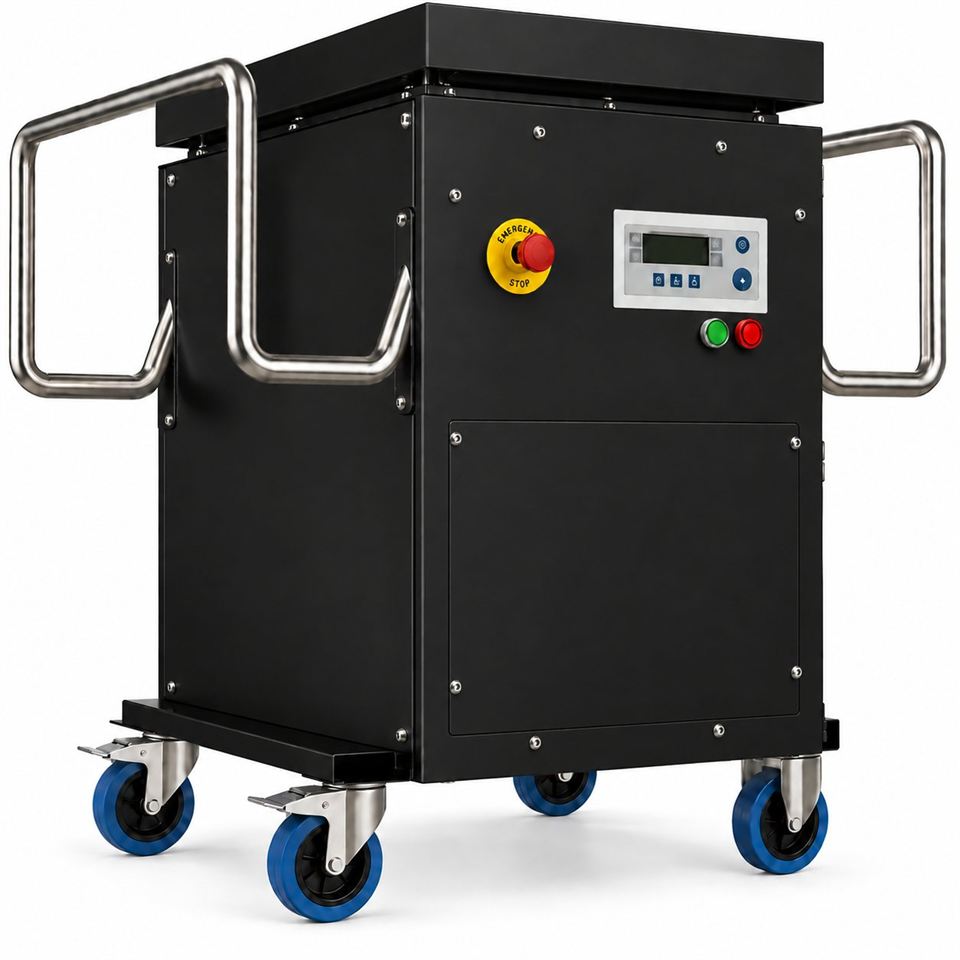

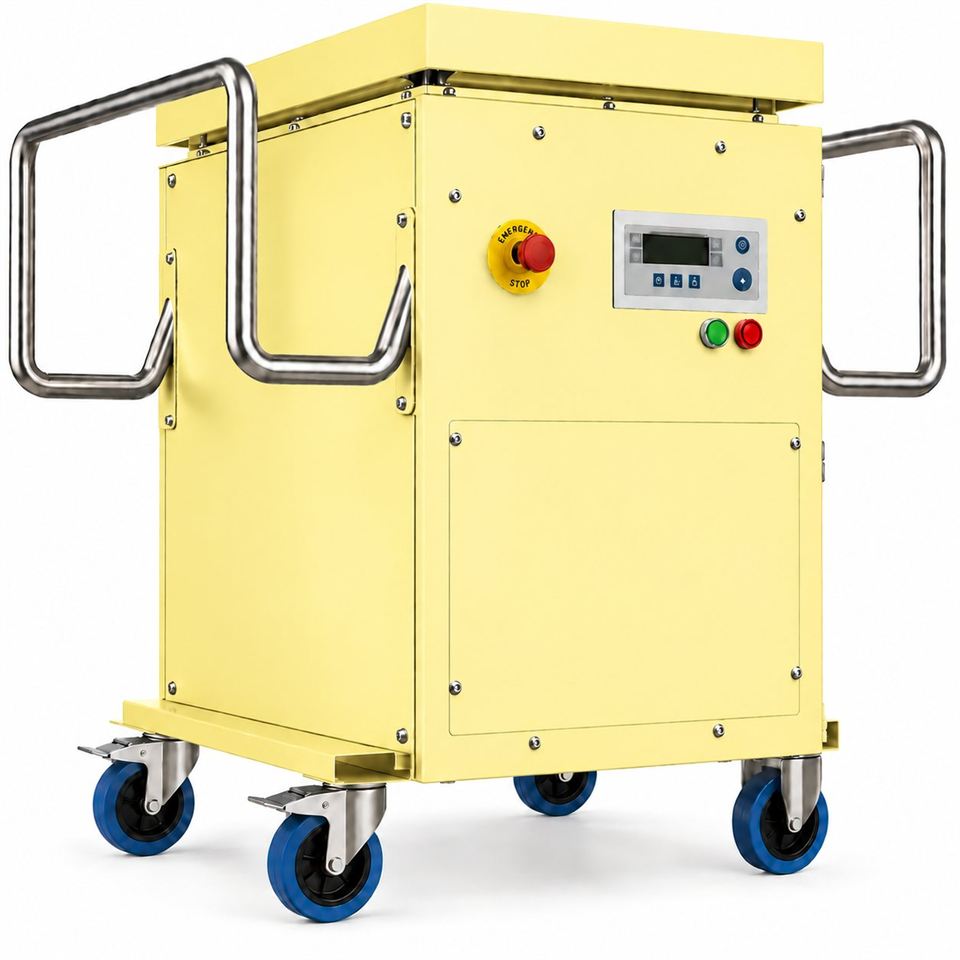

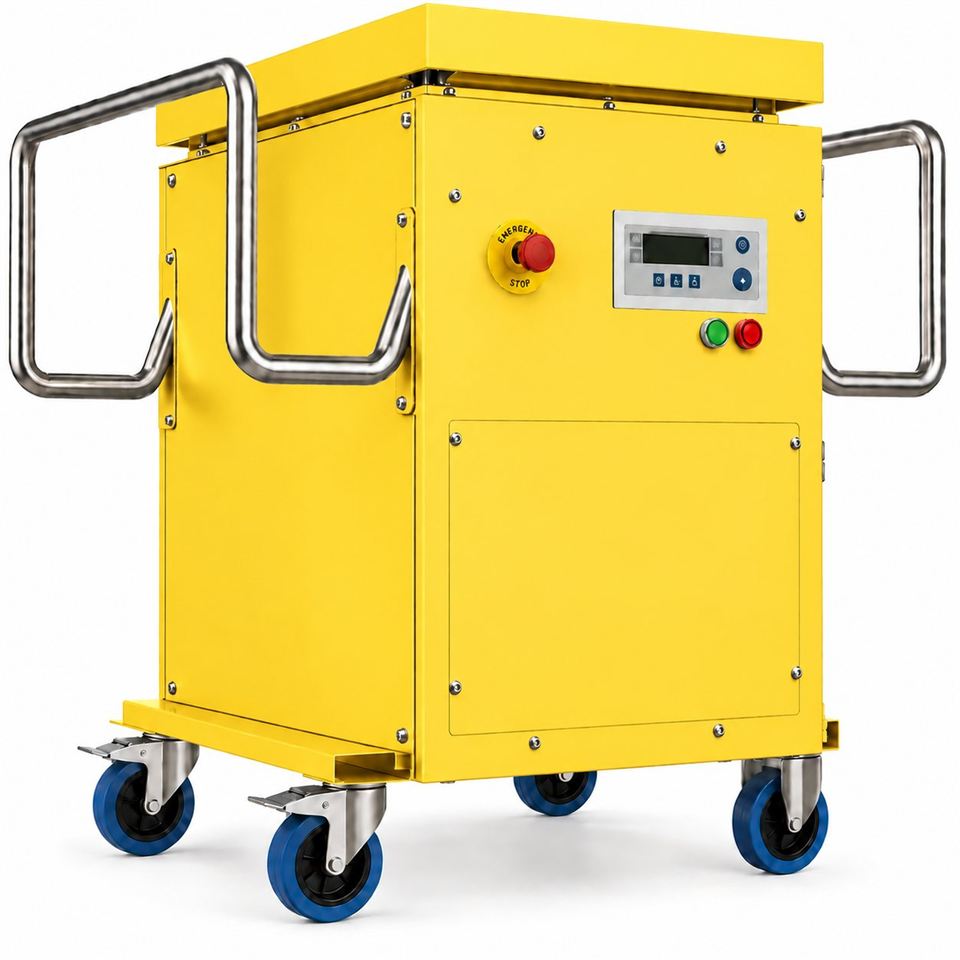

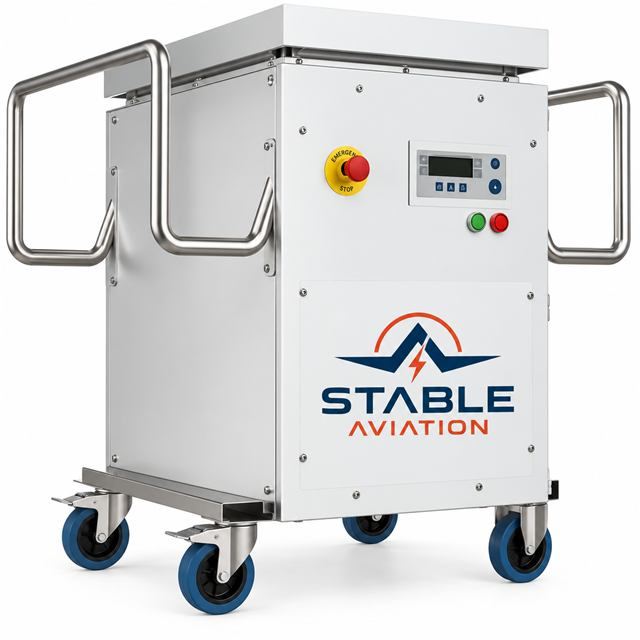

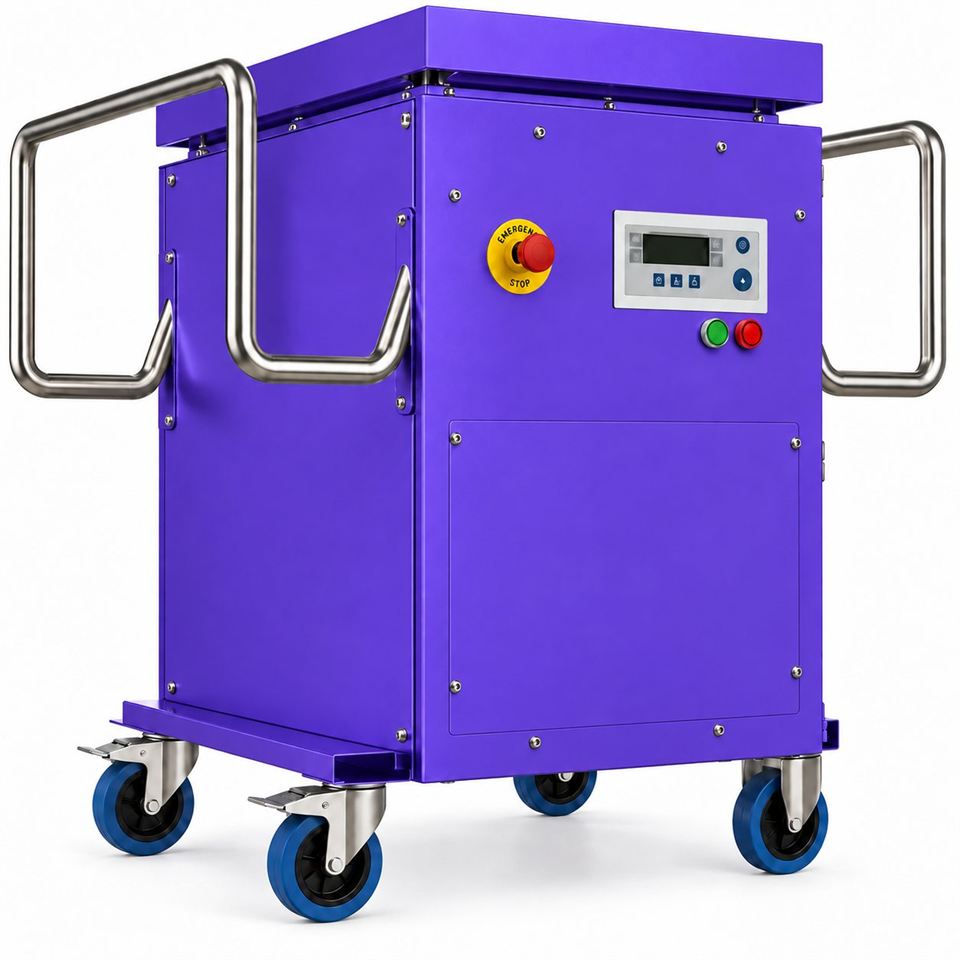

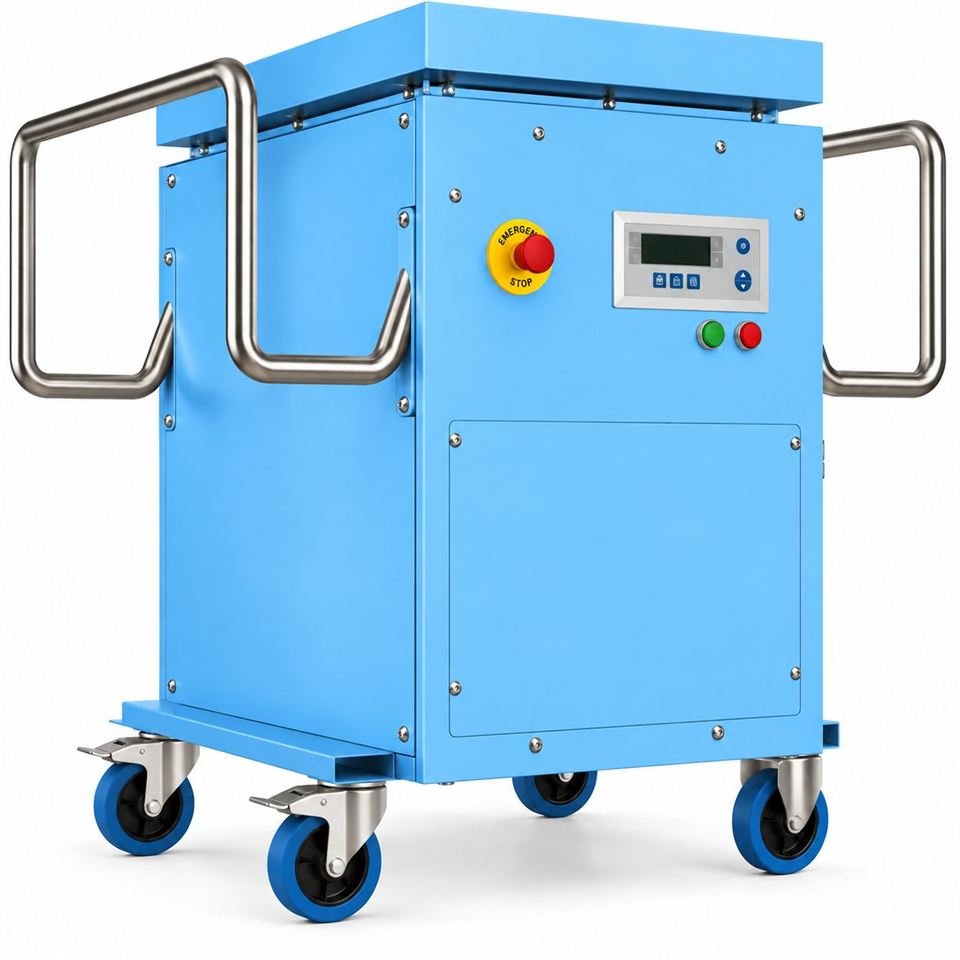

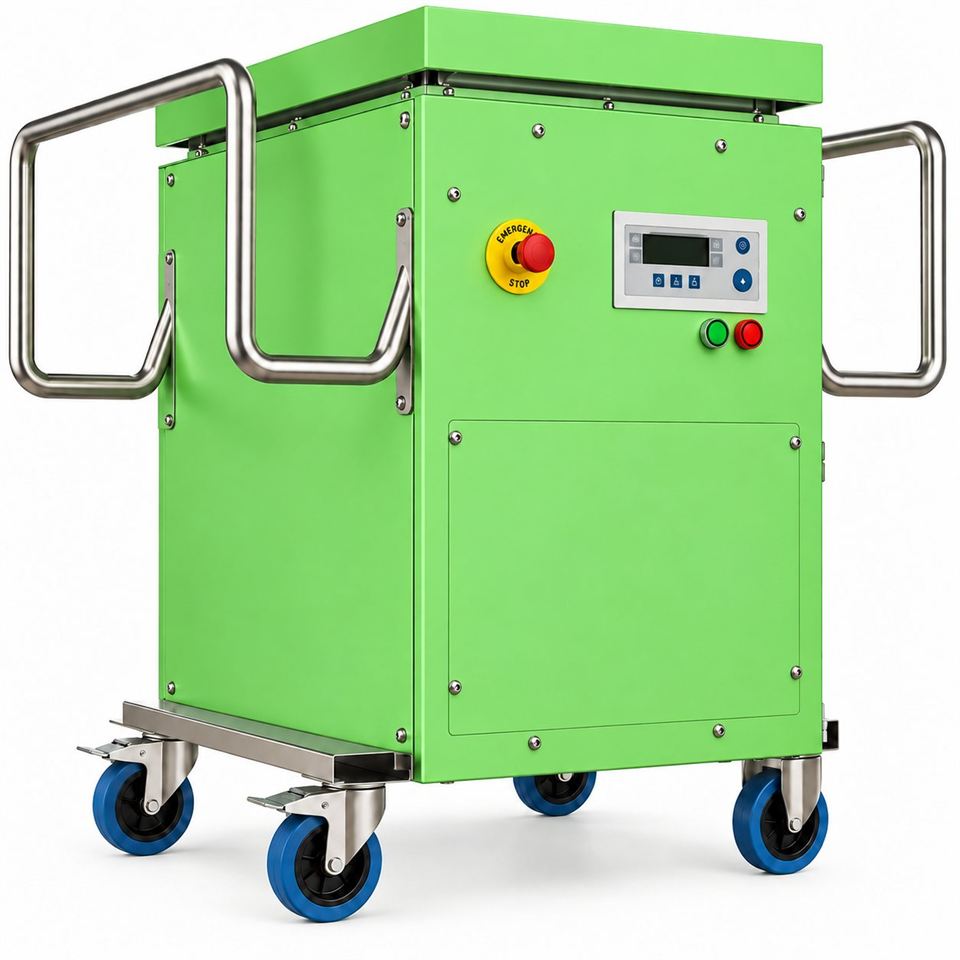

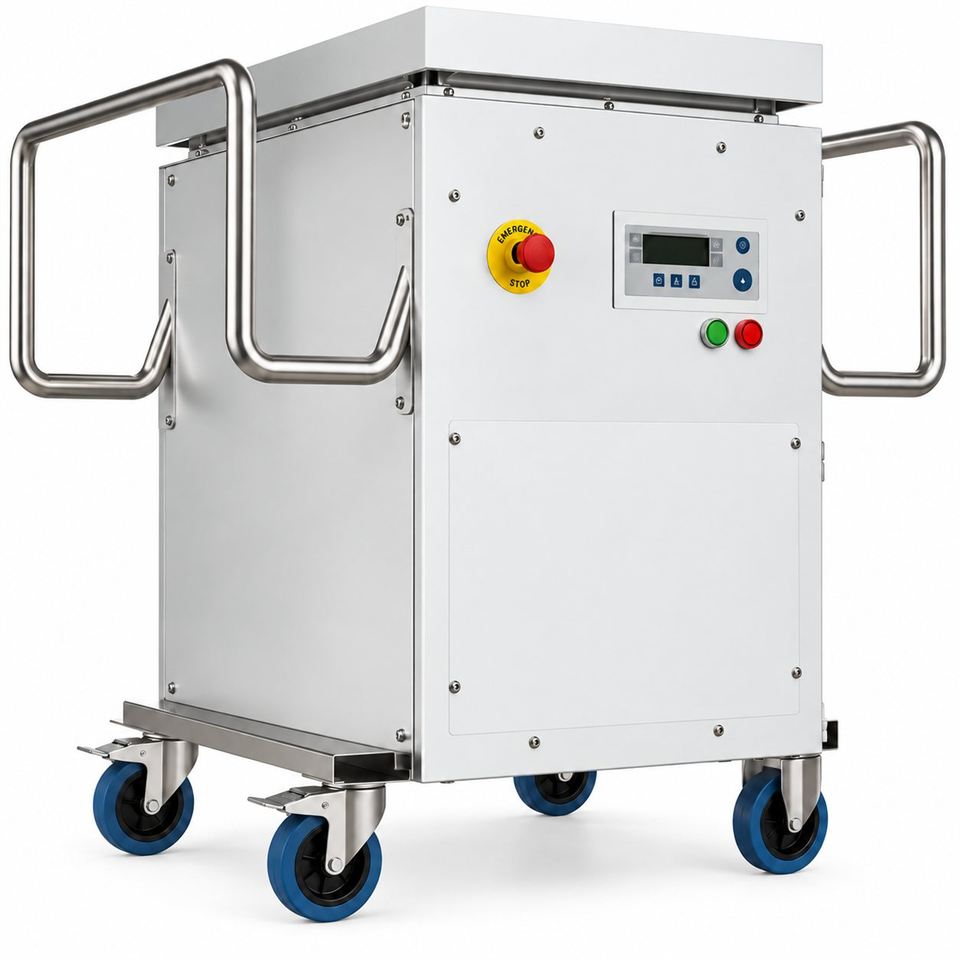

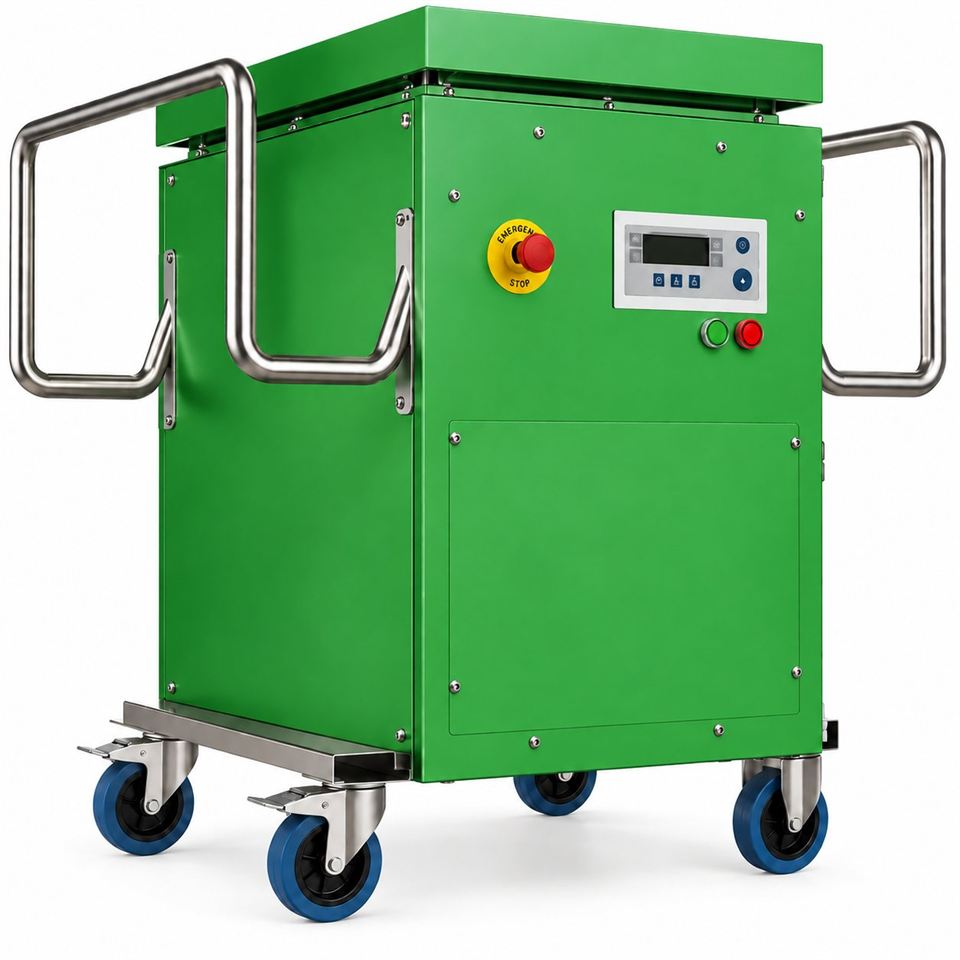

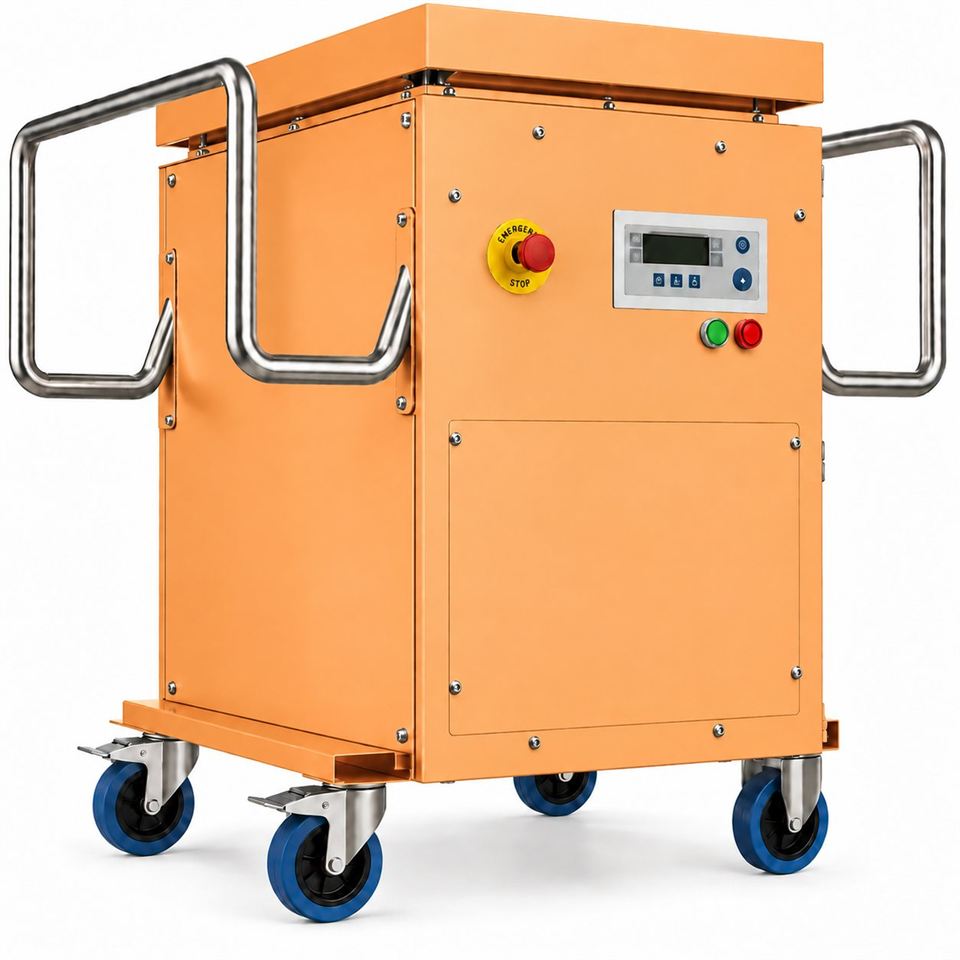

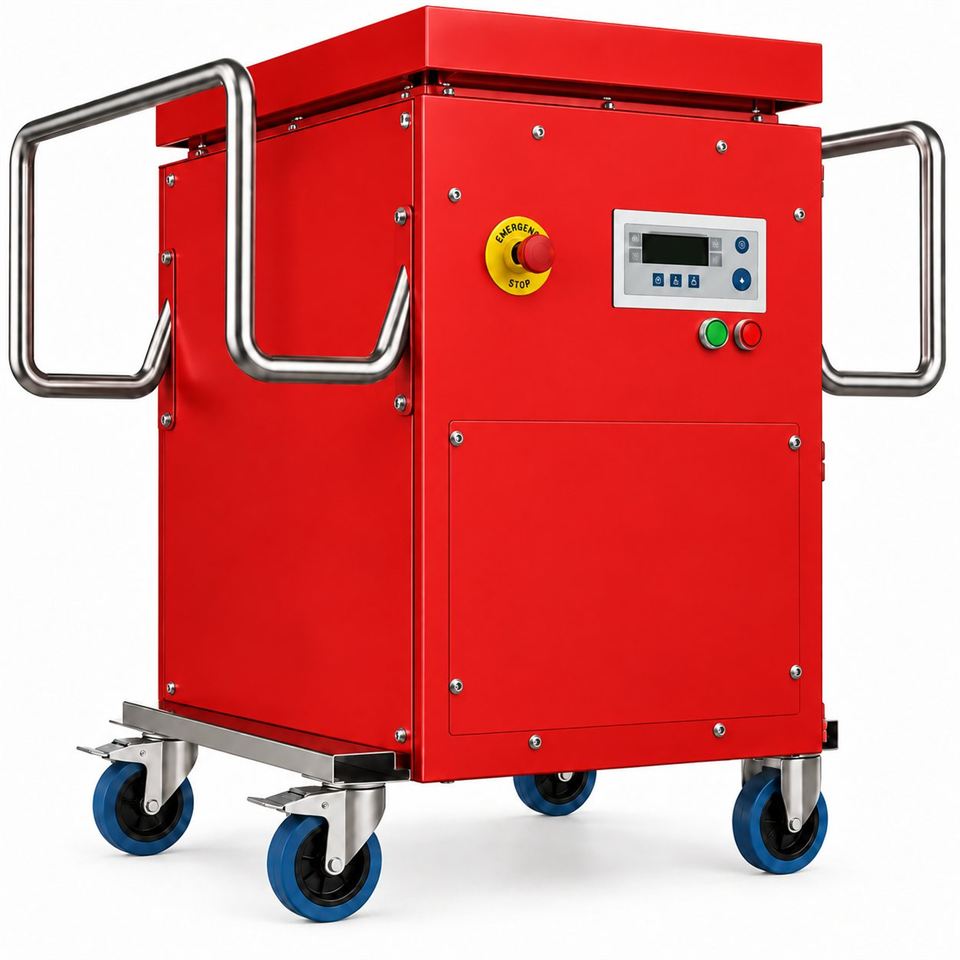

Stable Aviation TRU transformer rectifier unit
SpecificationST-TRU-300ST-TRU-600
Input voltage340–460VAC340–460VAC
Input current63A / 3ph63A / 3ph
Output voltage (continuous)28.5VDC28.5VDC
Output current (continuous)300A600A
Starting voltage25.8VDC25.8VDC
Starting current1,200A2,400A
Dimensions (L-W-H)700-600-800 mm700-600-800 mm
Weight250 kg350 kg

115V frequency converter for aircraft

Stable Aviation manufactures mobile frequency converter and combi (28VDC) units — the safest and most reliable solution for aircraft ground power. Designed with power-factor correction to guarantee a near-perfect sinusoidal input current from 25% to 150% load and low THDi (<1.5%), and 8V remote sensing so the output stays stable even under heavy loads. Units are fitted on a trolley with 6 rubber mounts to absorb vibration, and fitted with a brake.

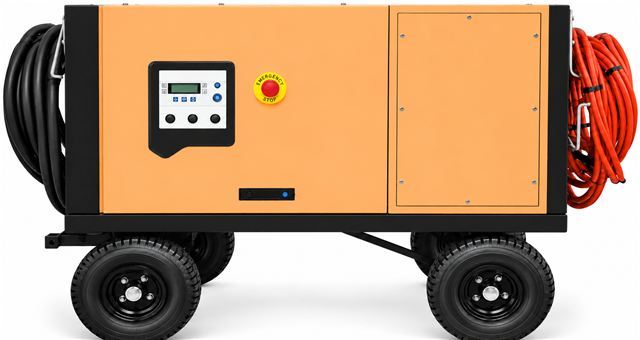

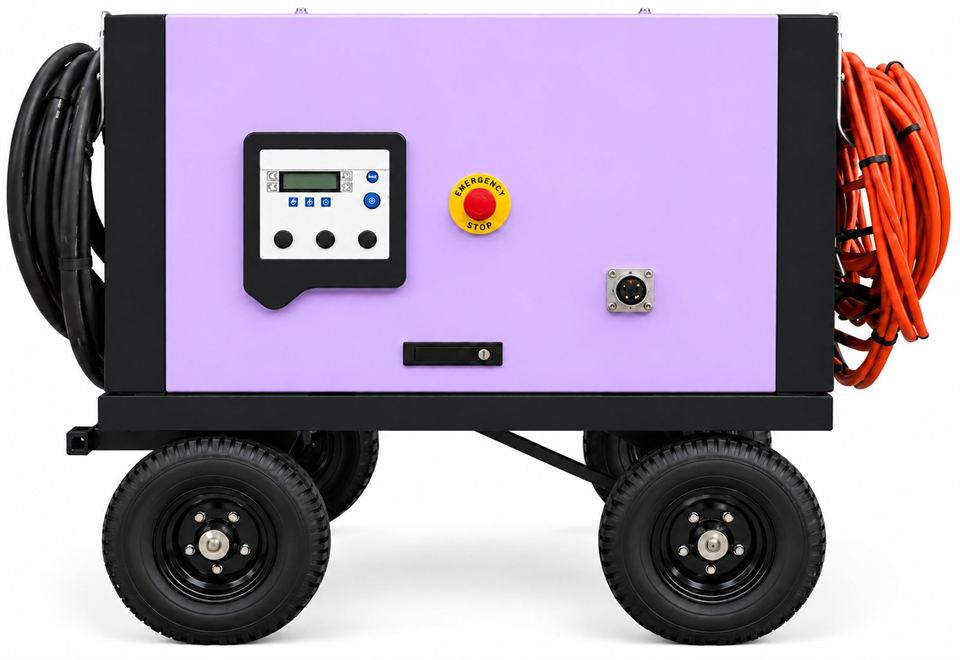

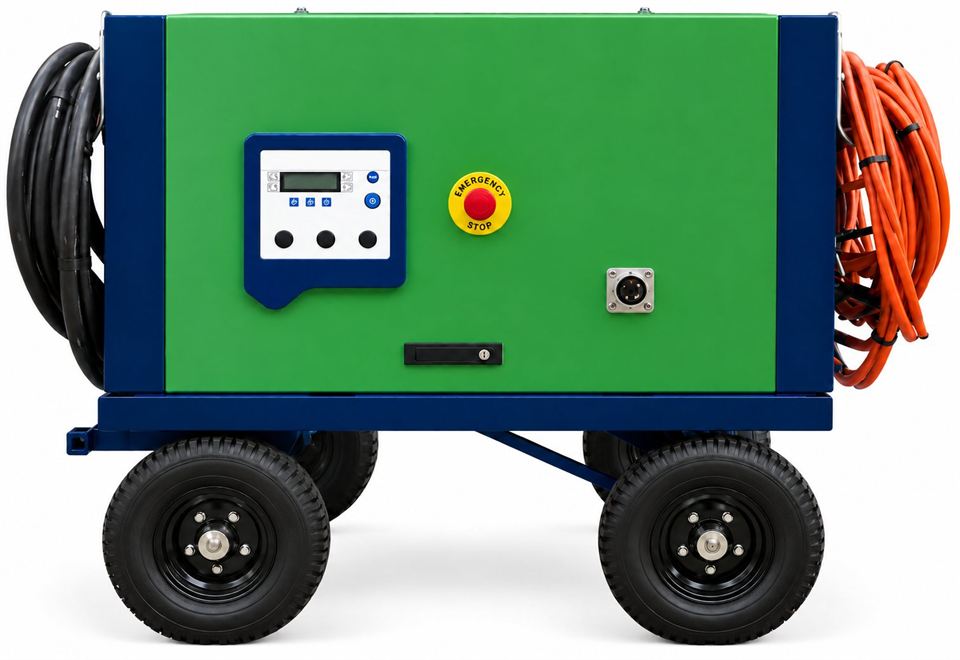

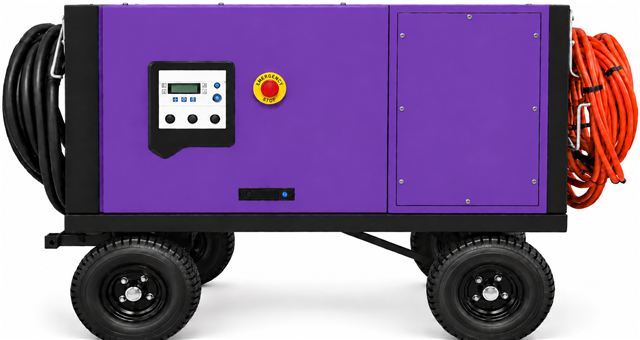

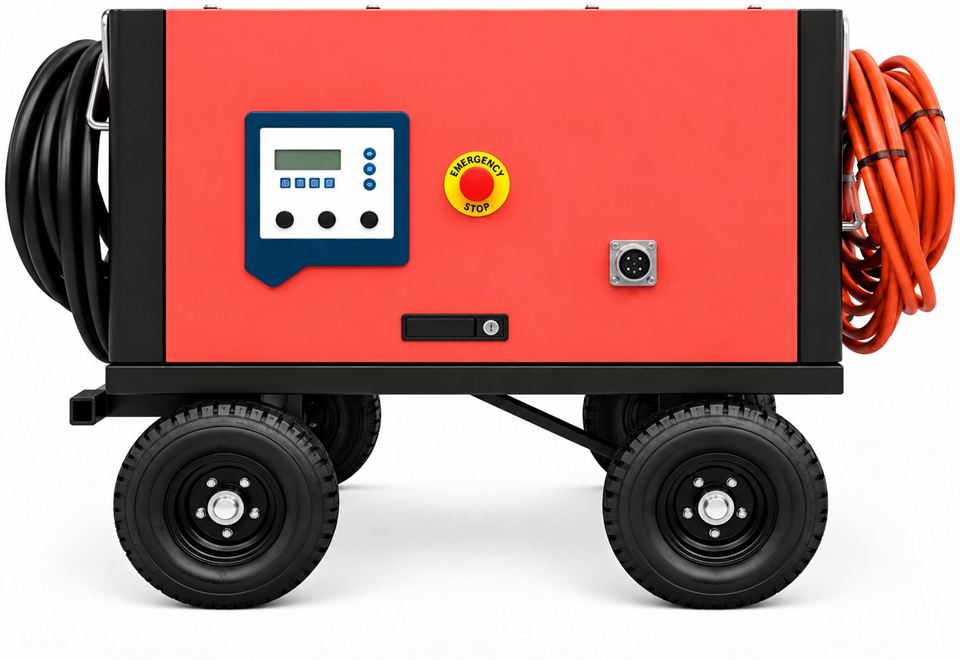

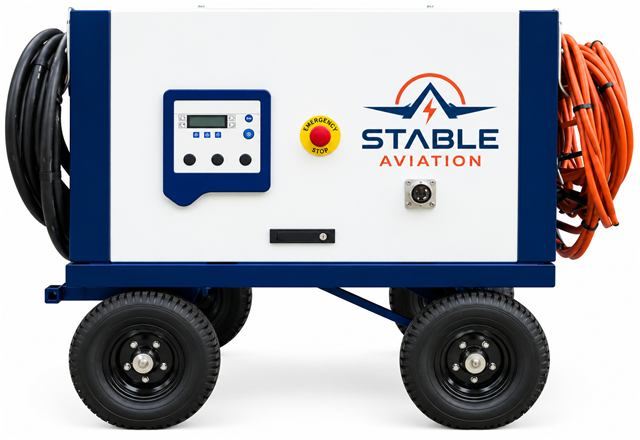

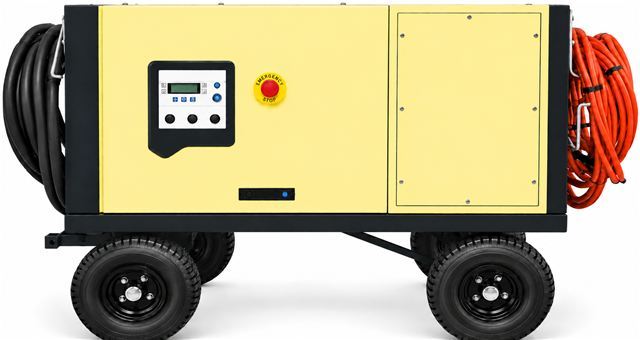

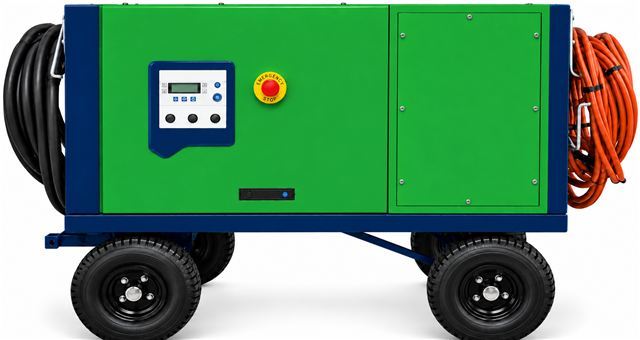

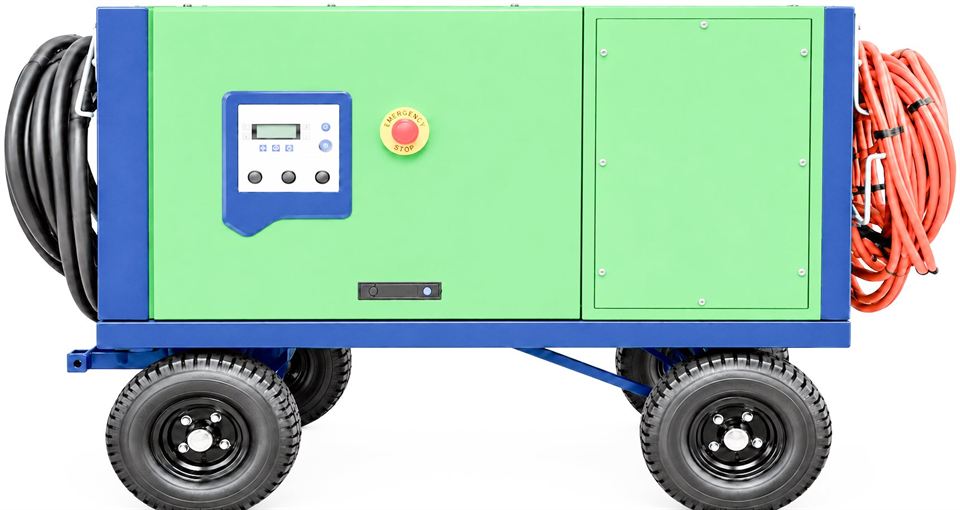

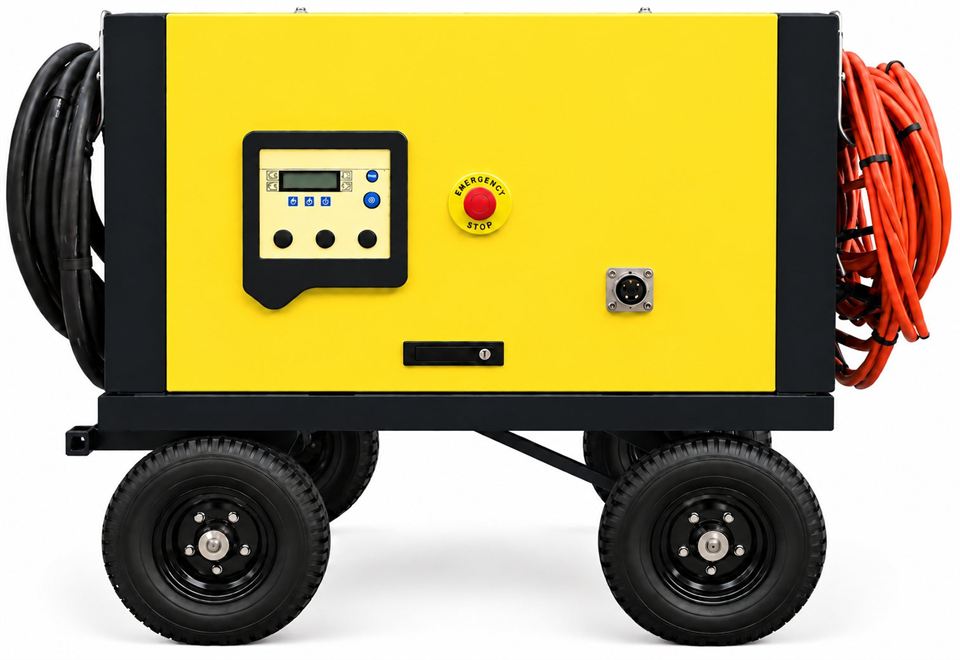

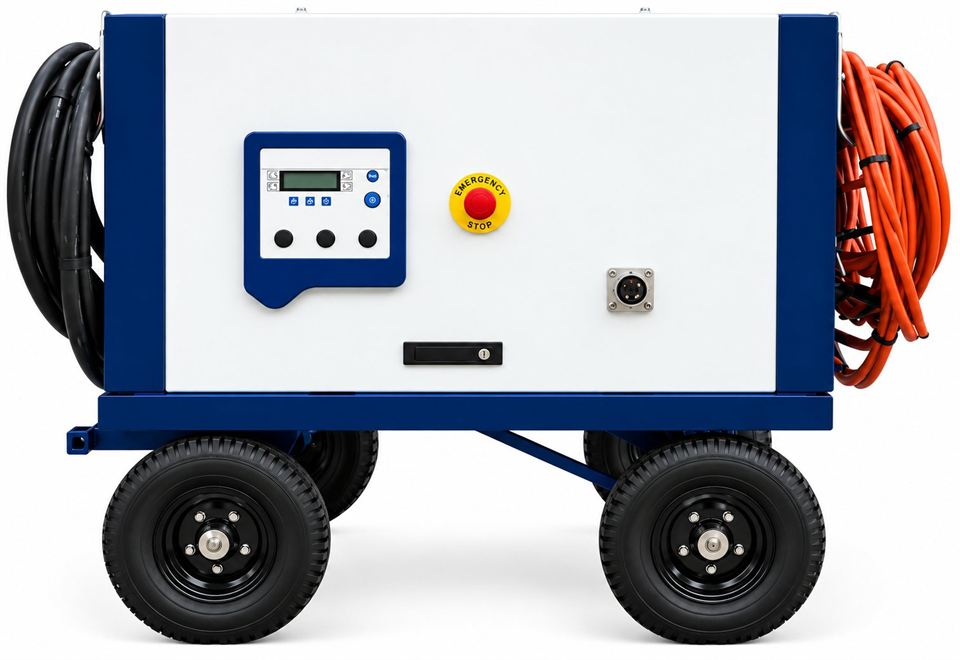

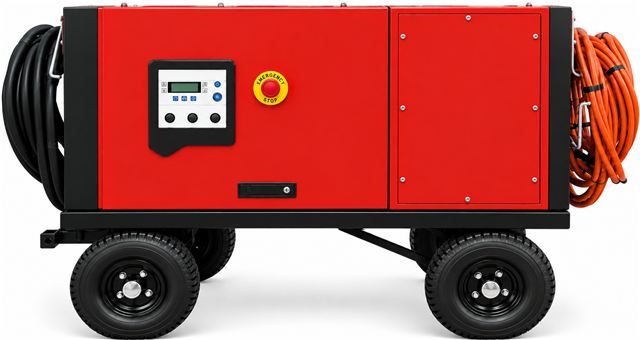

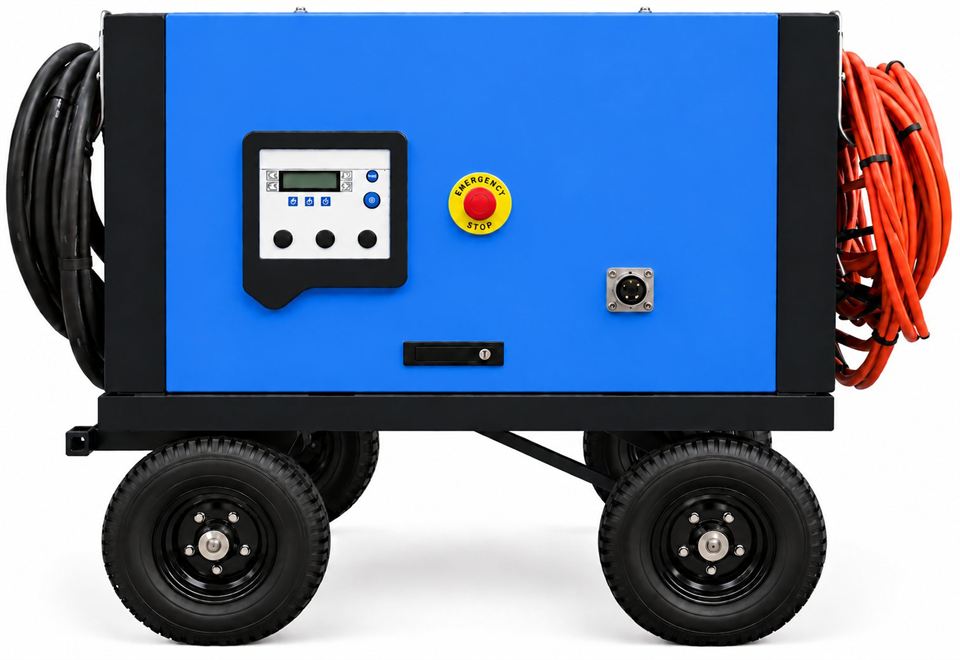

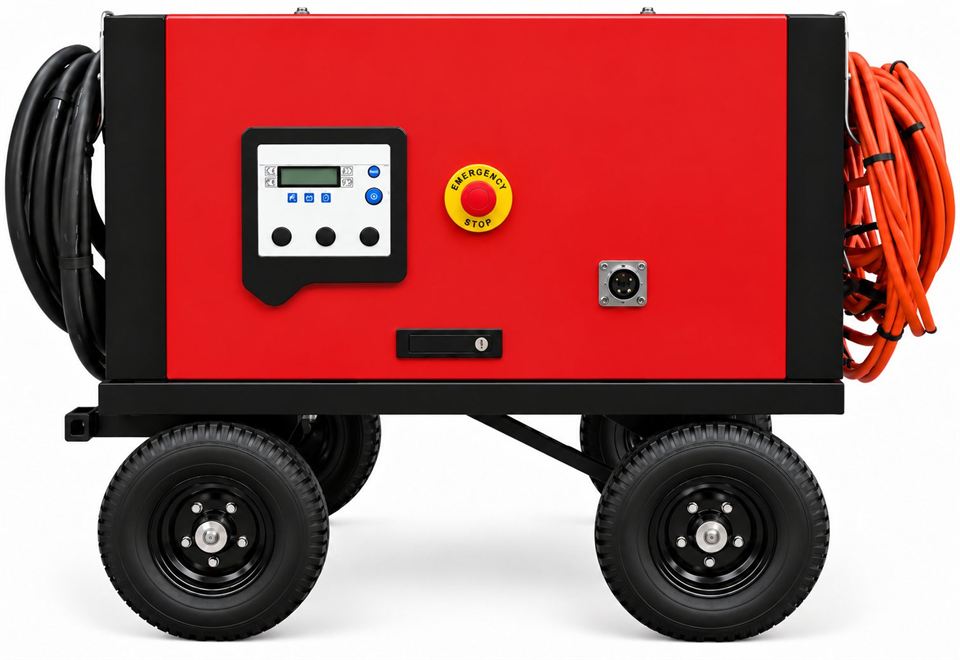

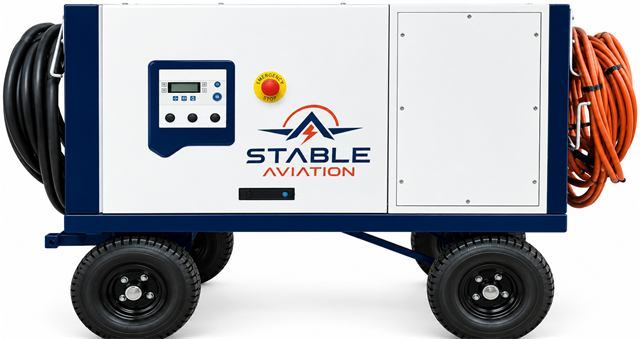

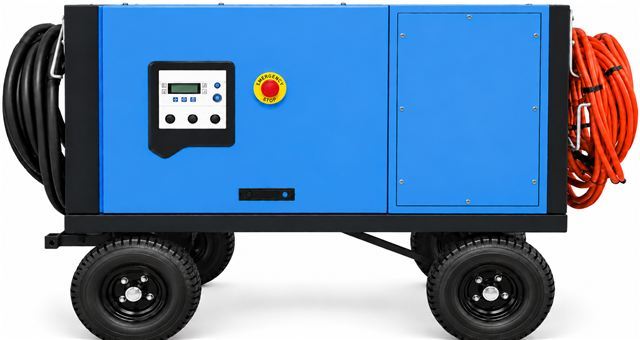

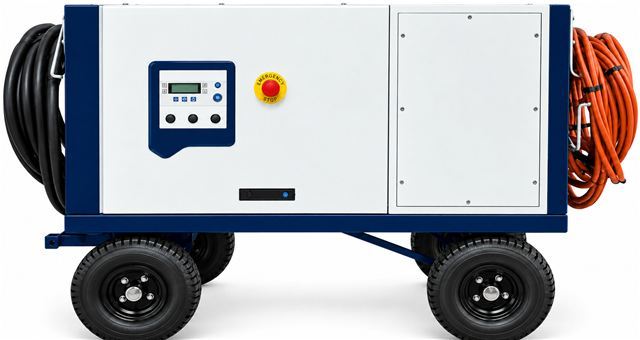

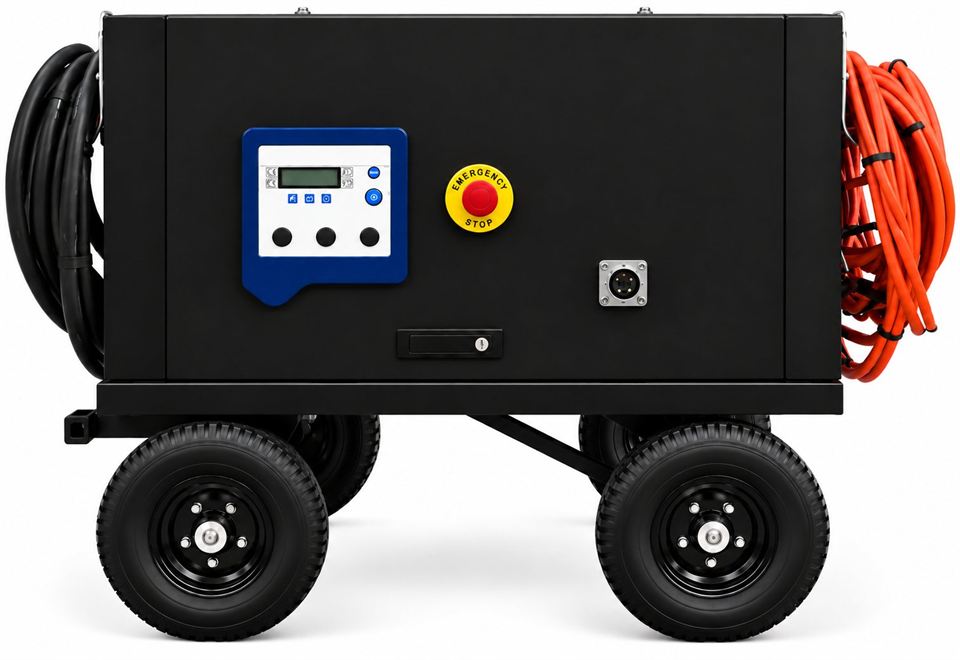

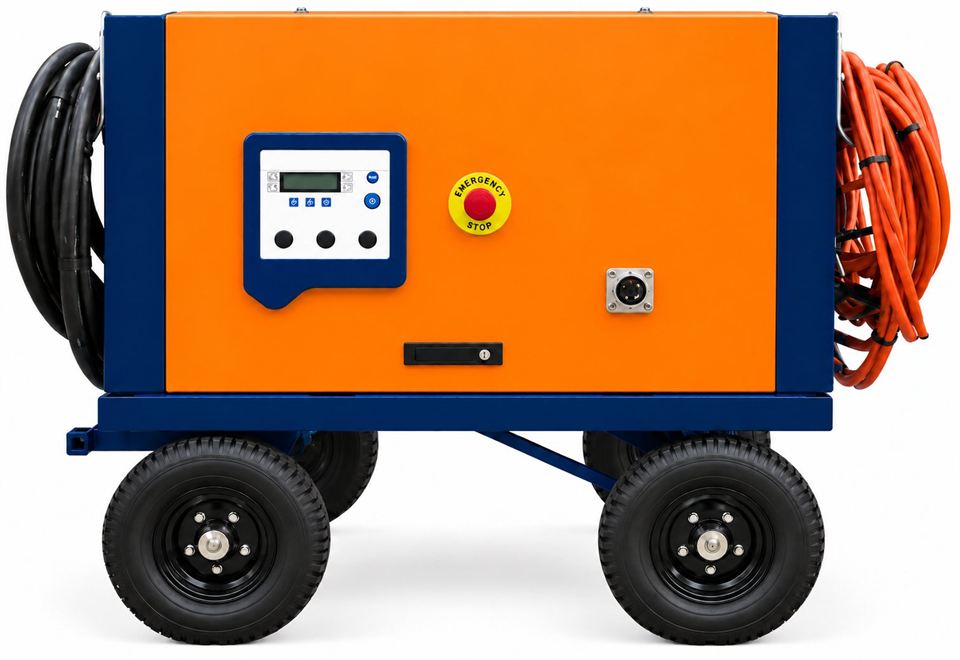

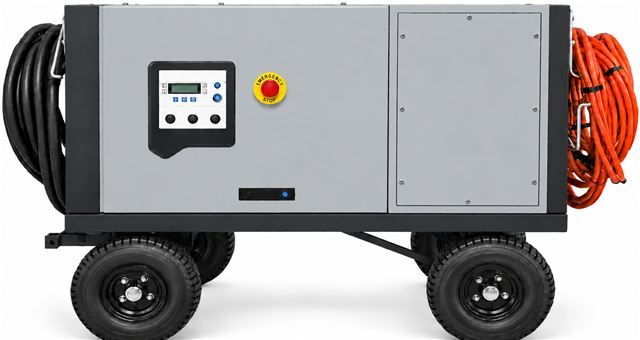

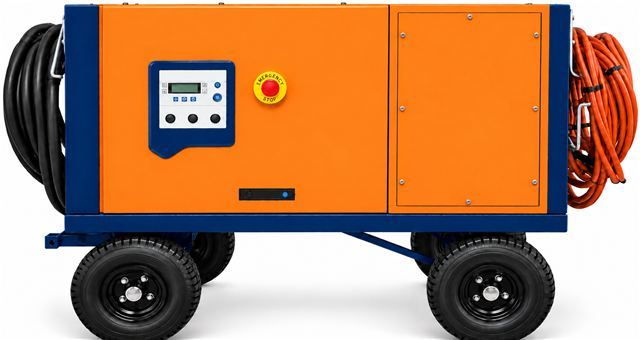

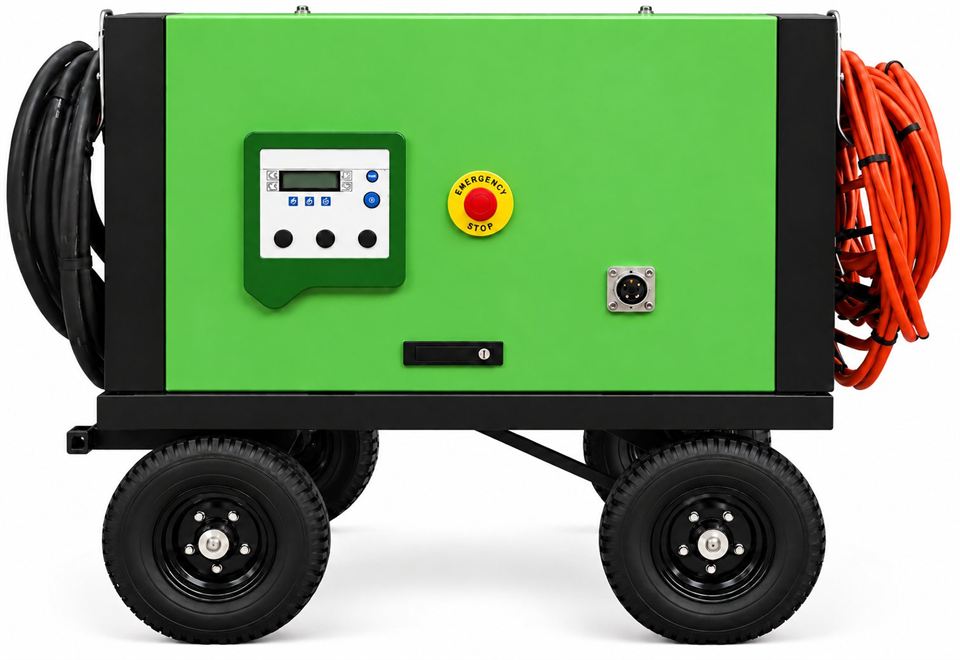

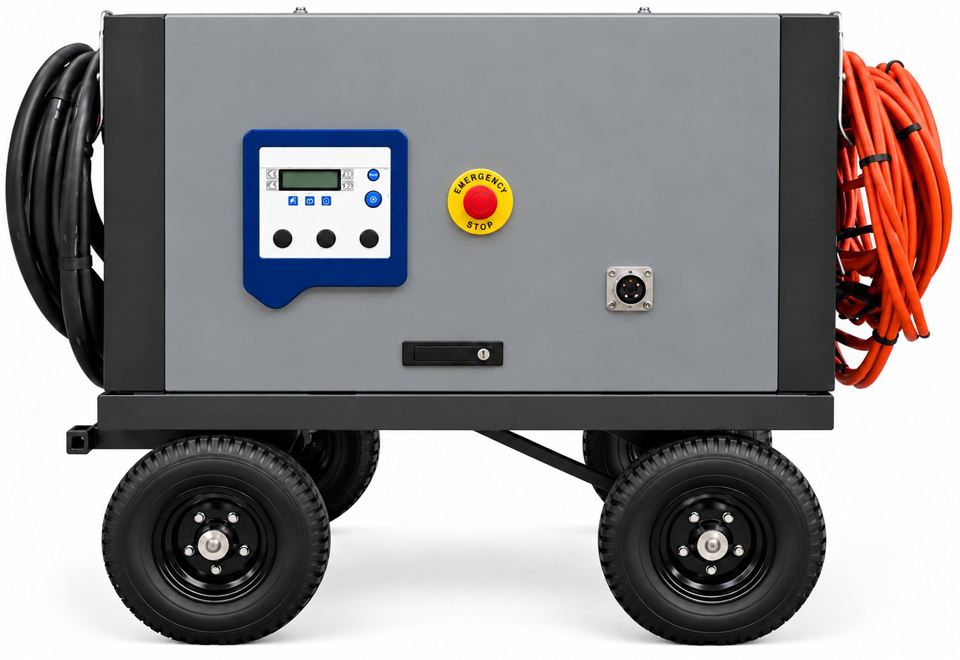

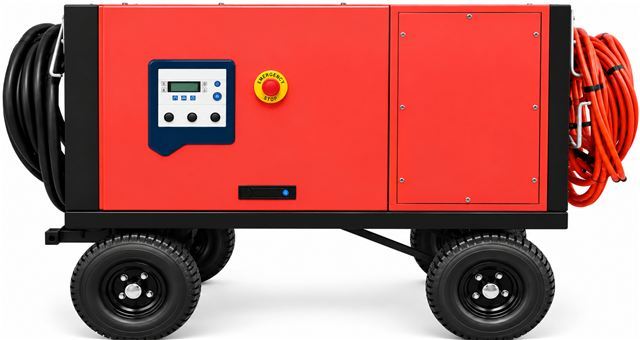

Stable Aviation ST45KVA/60KVA/90KVA frequency converter Stable Aviation frequency converter combi unit
SpecificationST45KVAST60KVAST90KVAST45KVA-COMBIST60KVA-COMBIST90KVA-COMBI
Input voltage340–460VAC340–460VAC340–460VAC340–460VAC340–460VAC340–460VAC
Input current63A / 3ph125A / 3ph125A / 3ph63A / 3ph125A / 3ph125A / 3ph
Output 1 voltage115VAC115VAC115VAC115VAC115VAC115VAC
Output 1 frequency400Hz400Hz400Hz400Hz400Hz400Hz
Output 1 current130A/ph195A/ph260A/ph130A/ph195A/ph260A/ph
Output 2 voltage (continuous)N/AN/AN/A28.5VDC28.5VDC28.5VDC
Output 2 current (continuous)N/AN/AN/A600A600A600A
Output 2 starting currentN/AN/AN/A2,400A2,400A2,400A
Dimensions (L-W-H)1200-800-1000 mm1200-800-1000 mm1200-800-1000 mm1600-800-1000 mm1600-800-1000 mm1600-800-1000 mm
Weight350 kg380 kg400 kg450 kg480 kg500 kg
