Aircraft ground power, Bristol UK

Stable power.
Cleaner future.

Stable Aviation designs and manufactures ground power 28VDC units, Starter Power Units, Continuous Power Units, Combination Power Units, eGPUs (fully standalone units fitted with chargeable internal batteries), TRU Power Units, and also 115VAC 400Hz frequency converters.

View the product line Talk to sales

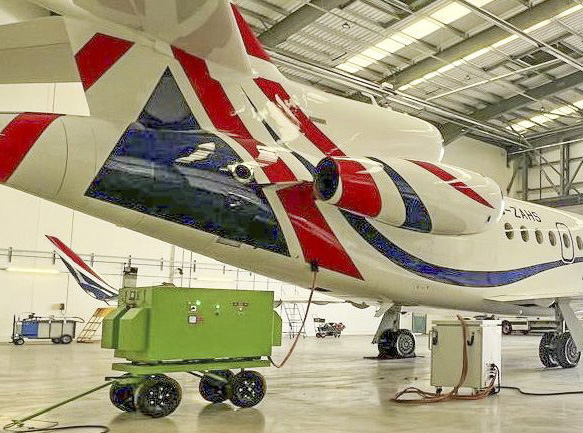

Stable Aviation ground power unit connected to an aircraft in a UK hangar

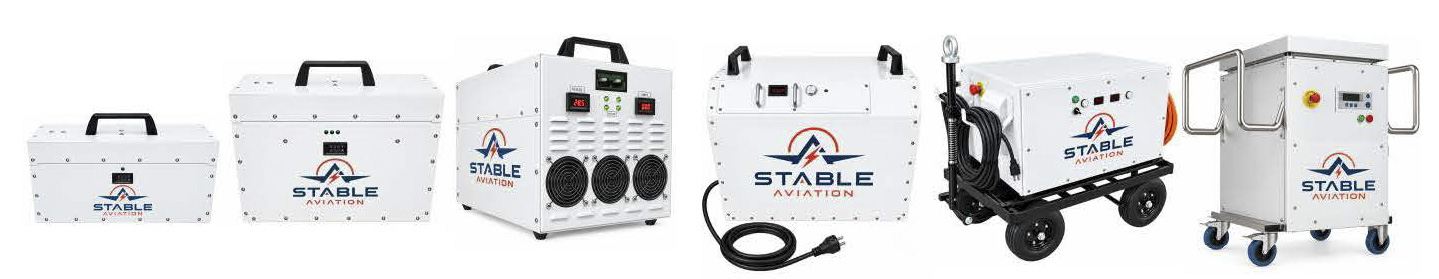

The Stable Aviation product line — starter, combination, continuous power, and eGPU units

Why Stable

Built to start, not just power

Thin-plate sealed lead-acid batteries deliver up to 5,000A of starting current in seconds — engineered for turbine and APU starts.

Approved for onboard the aircraft

Every unit is approved as non-hazardous cargo for ground, sea, and air transport — so the small units can fly onboard the aircraft, which is essential for light aircraft and helicopters in remote bases.

Finished in your colours with your company logo

Every Stable Aviation unit can be manufactured in any customer-specified RAL colour and logo, to match your airline, airport, military, or corporate identity.

Product line

Six product families, full specification.

Starter power units

Stable Aviation manufactures portable Starter Units in 24V cells (giving real 25.8V start), 26V cells (giving real 27.9V start) and 28V cells (giving real 30.1V start). These units are used in maintenance hangars, airports and heliports, and are greatly appreciated by aircraft owners in the private sector. The Starters can be carried on board the aircraft, which makes them essential as emergency power for helicopters landing in locations outside of their bases, such as offshore platforms.

Specification	ST1000S 24/26/28	ST2000S 24/26/28	ST5000S 24/26/28	ST10000S 24/26/28	ST15000S 24/26/28	ST20000S 24/26/28
Input voltage for charging	90–260VAC	90–260VAC	90–260VAC	90–260VAC	90–260VAC	90–260VAC
Output voltage	25.8 / 27.9 / 30.1 VDC	25.8 / 27.9 / 30.1 VDC	25.8 / 27.9 / 30.1 VDC	25.8 / 27.9 / 30.1 VDC	25.8 / 27.9 / 30.1 VDC	25.8 / 27.9 / 30.1 VDC
Starting current	1,100A	2,200A	2,250A	2,250A	2,250A	2,250A
Short circuit current	2,450A	4,900A	5,000A	5,000A	5,000A	5,000A
Battery capacity	45 A/Hr	90 A/Hr	130 A/Hr	260 A/Hr	390 A/Hr	520 A/Hr
Dimensions (L×W×H)	500×160×180 mm	450×320×320 mm	550×400×450 mm	1000×750×800 mm	1000×750×800 mm	1000×750×800 mm
Weight	28/30/32 kg	60/64/68 kg	100/110/120 kg	200/220/240 kg	300/330/360 kg	400/440/480 kg

Continuous power units

Stable Aviation manufactures portable continuous power units, used for avionics work, maintenance, diagnostics and demonstrations. These units are in operation at hangars, maintenance facilities, and airports around the world, and are praised for their performance by both personnel and managers with regard to efficiency, safety and flexibility towards all kinds of aircraft.

Specification	ST50	ST100	ST200	ST300	ST400	ST600
Input voltage	90–260VAC	90–260VAC	340–460VAC	340–460VAC	340–460VAC	340–460VAC
Input current	8A / 1ph	16A / 1ph	16A / 3ph	16A / 3ph	32A / 3ph	32A / 3ph
Output voltage	28.5VDC	28.5VDC	28.5VDC	28.5VDC	28.5VDC	28.5VDC
Output current	50A	100A	200A	300A	400A	600A
Peak current	55A	110A	220A	330A	440A	660A
Dimensions (L×W×H)	450×160×180 mm	450×160×180 mm	450×160×320 mm	450×160×320 mm	450×320×320 mm	450×320×320 mm
Weight	6 kg	7 kg	10 kg	13 kg	20 kg	26 kg

Combination power units

Stable Aviation manufactures portable Combination Power Units, combining Starter Power Units and Continuous Power Units in one cabinet. They provide continuous power for avionics work, maintenance, diagnostics, and demonstrations, as well as being able to start the aircraft engine or the APU.

Specification	ST50‑1000S/2000S/5000S 24/26	ST100‑1000S/2000S/5000S 24/26	ST200‑1000S/2000S/5000S 24/26	ST300‑1000S/2000S/5000S 24/26	ST400‑1000S/2000S/5000S 24/26
Input voltage	90–260VAC	90–260VAC	340–460VAC	340–460VAC	340–460VAC
Input current	8A / 1ph	16A / 1ph	16A / 3ph	16A / 3ph	32A / 3ph
Output voltage (continuous)	28.5VDC	28.5VDC	28.5VDC	28.5VDC	28.5VDC
Continuous current	50A	100A	200A	300A	400A
Starting voltage (24 / 26)	25.8 / 27.9 VDC	25.8 / 27.9 VDC	25.8 / 27.9 VDC	25.8 / 27.9 VDC	25.8 / 27.9 VDC
Starting current (1000S/2000S/5000S)	1,100 / 2,200 / 2,250 A	1,100 / 2,200 / 2,250 A	1,100 / 2,200 / 2,250 A	1,100 / 2,200 / 2,250 A	1,100 / 2,200 / 2,250 A
Battery capacity	45/90/130 A/Hr	45/90/130 A/Hr	45/90/130 A/Hr	45/90/130 A/Hr	45/90/130 A/Hr
Dimensions (L×W×H)	550×400×450 mm	550×400×450 mm	550×400×450 mm	550×400×450 mm	550×400×450 mm
Weight (24V)	40/65/100 kg	42/67/102 kg	45/70/105 kg	48/73/108 kg	42/77/112 kg
Weight (26V)	42/70/108 kg	44/69/104 kg	47/72/107 kg	50/75/110 kg	54/79/114 kg

eGPU power units

Stable Aviation manufactures mobile eGPU units — a state-of-the-art design that supplies true 28.5VDC output with no input mains applied. Each unit provides 28.5VDC continuous power for avionics work and start power for the aircraft or APU, operating in either AC Mode (power from the input mains supply) or DC Mode (power from the internal batteries); all batteries charge automatically when connected to input power. Units are fitted on a trolley with 6 rubber mounts to absorb vibration, and fitted with a brake.

Specification	STeGPU-100-1000S-25	STeGPU-200-1000S-25	STeGPU-200-5000S-50	STeGPU-400-5000S-85	STeGPU-400-5000S-125
Input voltage	90–260VAC	90–260VAC / 340–460VAC	90–260VAC / 340–460VAC	340–460VAC	340–460VAC
Input current	16A / 1ph	32A / 1ph, 16A / 3ph	32A / 1ph, 16A / 3ph	32A / 3ph	32A / 3ph
Output voltage (continuous)	28.5VDC	28.5VDC	28.5VDC	28.5VDC	28.5VDC
Autonomy / continuous current	50A 4Hrs, 100A 2Hrs	100A 2Hrs, 200A 1Hr	100A 4Hrs, 200A 2Hrs	100A 6Hrs, 200A 3Hrs, 400A 1.5Hrs	100A 8Hrs, 200A 4Hrs, 400A 2Hrs
Starting voltage	25.8VDC	25.8VDC	25.8VDC	25.8VDC	25.8VDC
Starting current	1,100A	1,100A	2,250A	2,250A	2,250A
Dimensions (L×W×H)	1000×600×800 mm	1000×600×800 mm	1200×800×450 mm	1200×800×1100 mm	1200×800×1100 mm
Weight	200 kg	205 kg	300 kg	350 kg	400 kg

TRU power units

Stable Aviation manufactures mobile TRUs (Transformer Rectifier Units) — the safest and most reliable solution for continuous, smooth power. Designed with power-factor correction to guarantee a near-perfect sinusoidal input current from 25% to 150% load and low THDi (<1.5%), and 8V remote sensing so the output stays stable even under heavy loads. These TRUs are in operation around the world and are praised by operators and engineers for their easy operation, efficiency, safety and flexibility.

Specification	ST-TRU-300	ST-TRU-600
Input voltage	340–460VAC	340–460VAC
Input current	63A / 3ph	63A / 3ph
Output voltage (continuous)	28.5VDC	28.5VDC
Output current (continuous)	300A	600A
Starting voltage	25.8VDC	25.8VDC
Starting current	1,200A	2,400A
Dimensions (L×W×H)	700×600×800 mm	700×600×800 mm
Weight	250 kg	350 kg

Frequency converter units

Stable Aviation manufactures mobile frequency converter and combi (28VDC) units — the safest and most reliable solution for aircraft ground power. Designed with power-factor correction to guarantee a near-perfect sinusoidal input current from 25% to 150% load and low THDi (<1.5%), and 8V remote sensing so the output stays stable even under heavy loads. Units are fitted on a trolley with 6 rubber mounts to absorb vibration, and fitted with a brake.

Specification	ST45KVA	ST60KVA	ST90KVA	ST45KVA-COMBI	ST60KVA-COMBI	ST90KVA-COMBI
Input voltage	340–460VAC	340–460VAC	340–460VAC	340–460VAC	340–460VAC	340–460VAC
Input current	63A / 3ph	125A / 3ph	125A / 3ph	63A / 3ph	125A / 3ph	125A / 3ph
Output 1 voltage	115VAC	115VAC	115VAC	115VAC	115VAC	115VAC
Output 1 frequency	400Hz	400Hz	400Hz	400Hz	400Hz	400Hz
Output 1 current	130A/ph	195A/ph	260A/ph	130A/ph	195A/ph	260A/ph
Output 2 voltage (continuous)	N/A	N/A	N/A	28.5VDC	28.5VDC	28.5VDC
Output 2 current (continuous)	N/A	N/A	N/A	600A	600A	600A
Output 2 starting current	N/A	N/A	N/A	2,400A	2,400A	2,400A
Dimensions (L×W×H)	1200×800×1000 mm	1200×800×1000 mm	1200×800×1000 mm	1600×800×1000 mm	1600×800×1000 mm	1600×800×1000 mm
Weight	350 kg	380 kg	400 kg	450 kg	480 kg	500 kg

Not sure which fits your fleet?

We'll size the unit to your requirement.

Request a quote

Other services

Beyond the product line.

Being the manufacturer, not just a reseller, means we can support you well past the point of sale — on the airshow ramp, on a service contract, or with a one-off build to your own specification.

Airshow support

Comprehensive on-site power and services for major international airshows, backed by our own equipment and engineers.

Being the manufacturer of the equipment we deploy gives us an edge other suppliers can't match — we understand exactly how ground crews and display teams need it to perform, and we can fix it on site if it doesn't. Our team has supported events including Farnborough, the Royal International Air Tattoo, LABACE, AVALON, Friedrichshafen, and the Africa Aerospace and Defence show.

Ground power units — 28V DC power supplies and 400Hz frequency converters
Mobile aircraft air conditioners
All cabling and junction boxes
Diesel generators with refuelling containers
On-site engineering support throughout the event
Exterior and interior aircraft detailing

Rental, servicing & bespoke solutions

Short-term equipment hire, ongoing service contracts, and one-off builds to your exact specification.

All rental equipment is fully tested before dispatch and backed by full customer support, so a short-term hire never means a lower standard of kit. To discuss a specific requirement, contact us directly.

Weekly or monthly equipment rental from our inventory
Full service contracts tailored to your operation
48-hour engineer callout with backup equipment supplied
Bespoke units built and commissioned to your exact specification

Need support beyond the product line?

Talk to us about airshows, rental, or a bespoke build.

Request a quote
